Medical Grade Reverse Osmosis System
We provide medical grade reverse osmosis systems and water treatment solutions for healthcare and professional applications. With experienced water treatment engineers and technical specialists, as medical ro system manufacturer, we offer customized system design, equipment supply, installation, commissioning, maintenance, and operator training for hospitals, biopharmaceutical facilities, research institutions, and testing laboratories.
Water Requirement of Medical Grade Reverse Osmosis System
| Water Type | Relevant Department | Water Quality Requirements | Produced Water Conductivity | Microbiological Requirements |
|---|---|---|---|---|
| Analytical & Experimental Water | Laboratory Department | Product water quality complies with: "China National Standard for Water for Analytical Laboratory Use" GB6682-2008 Grade 1, Grade 2, Grade 3 | ≥ 10 MΩ·cm | |
| ≥ 1 MΩ·cm | ||||
| ≥ 0.2 MΩ·cm | Clinical laboratory reagent water < 10 cfu/ml | |||
| Pathology Department | ||||
| Laboratory | ||||
| Instrument Cleaning & Disinfection Water | Central Sterile Supply Department (CSSD) | Product water quality complies with: "Central Sterile Supply Department (CSSD) - Part 1: Processing Requirements for Cleaning, Disinfection and Sterilization" (WS310.1-2016) | ≤ 15 μs/cm | / |
| Endoscopy Room | < 10 cfu/100ml | |||
| Stomatology Department | / | |||
| Operating Room | / | |||
| Rinsing Water | Operating Room Scrubbing Area | Product water quality: Sterile Rinsing Water Standard | / | < 100 cfu/ml |
| High-Temperature Sterilization Water | Central Sterile Supply Department (CSSD) | Product water quality: "Central Sterile Supply Department (CSSD) - Part 1: Processing Requirements for Cleaning, Disinfection and Sterilization" (WS310.1-2016) Appendix B | ≤ 5 μs/cm | / |
| Dental Treatment Water | Stomatology Department | Product water quality complies with: GB5749 "Standards for Drinking Water Quality" | ≤ 15 μs/cm | < 100 cfu/ml |
| Hemodialysis Room | ||||
| ICU | ||||
| Acidified Water | Acidified Water Source | Product water quality: GB5749 "Standards for Drinking Water Quality" | / | / |

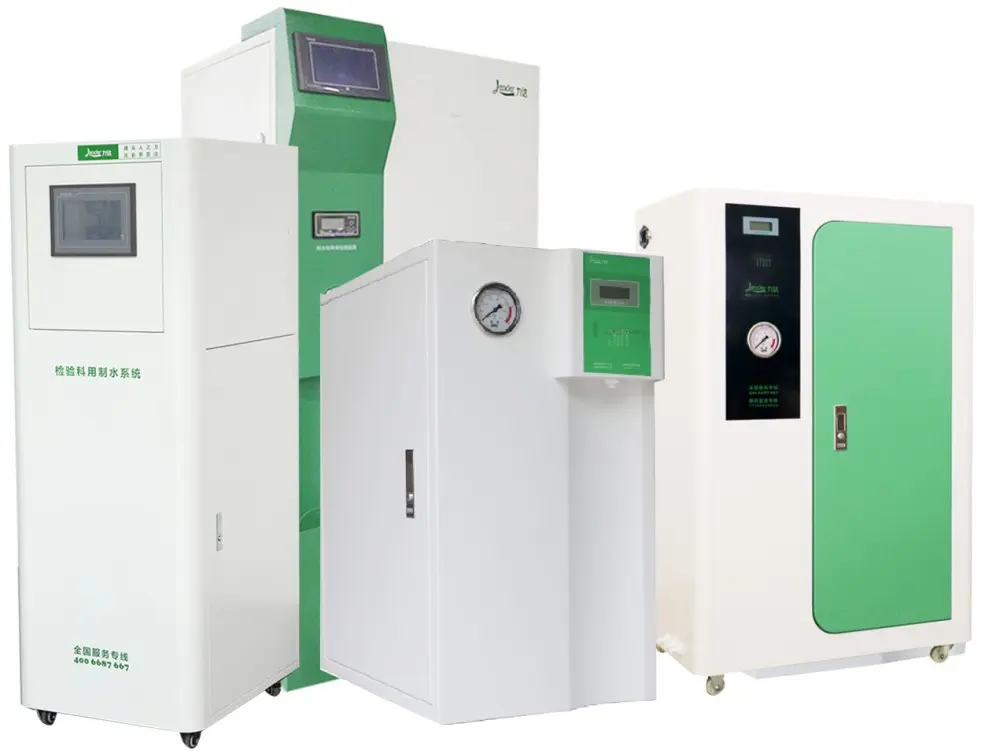

Clinical Laboratory-Medical Grade Reverse Osmosis System

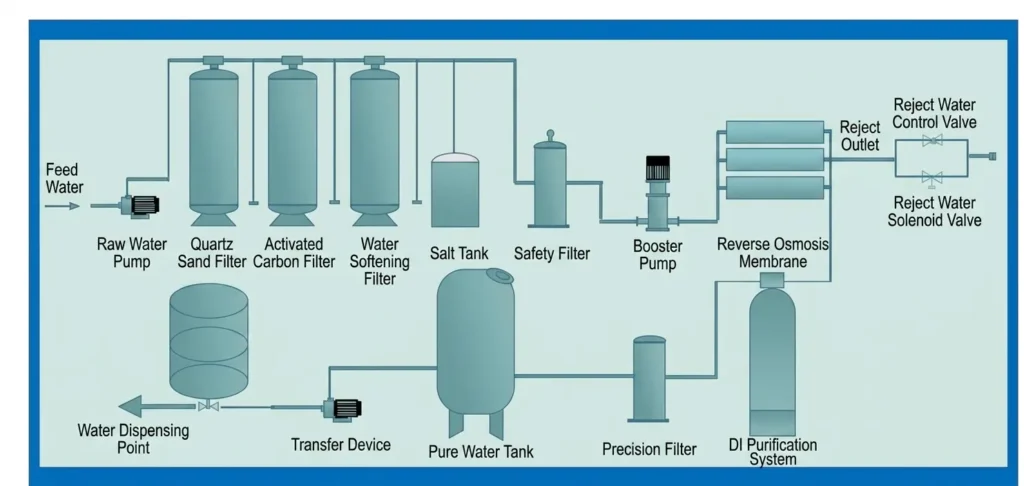

1-stage RO+DI process
- Automatic Monitoring & Flushing
- Low/High Pressure & Low Water Protection
- Automatic Full-Tank Standby
- Three-Stage Pretreatment
- Safe 24V DC Operation
- Low Energy & Water Consumption
- Modular, Easy Maintenance
- Automatic Fault Detection
Applications: Suitable for single or small biochemistry analyzers, chemiluminescence immunoassay analyzers, reagent preparation, and laboratory glassware washing.

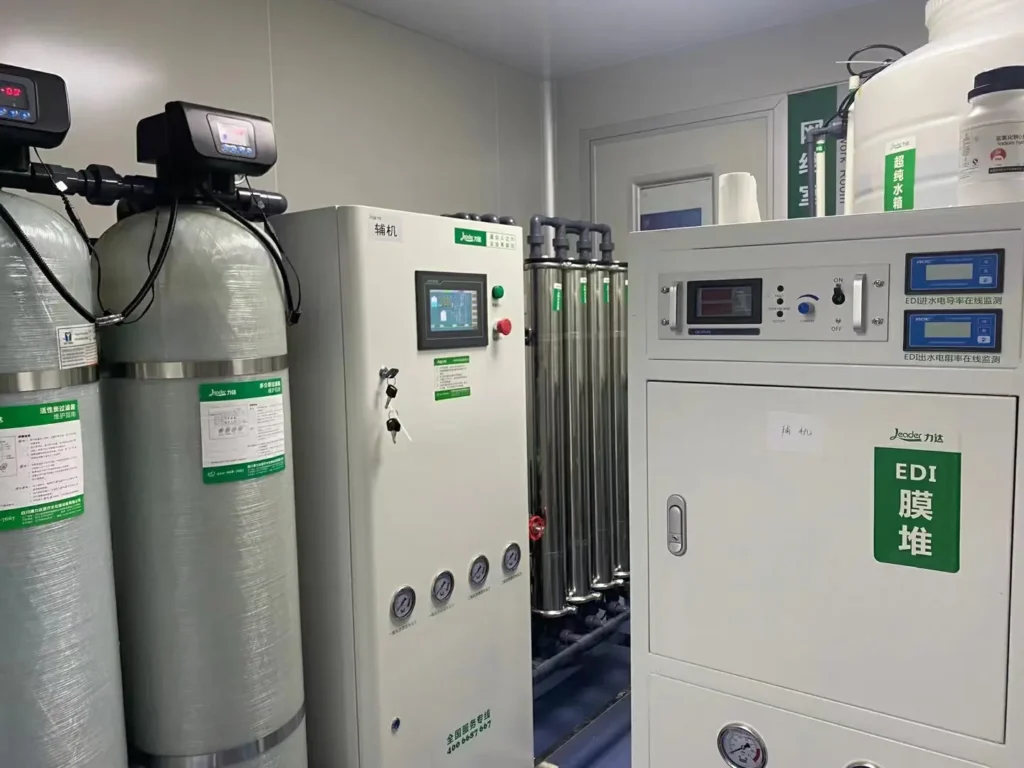

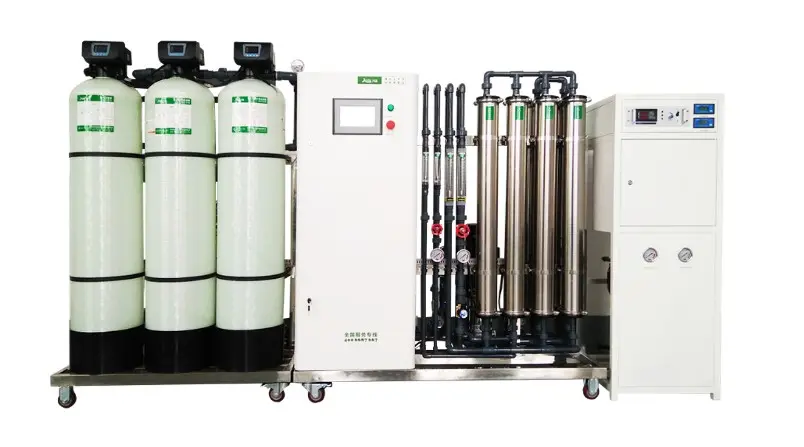

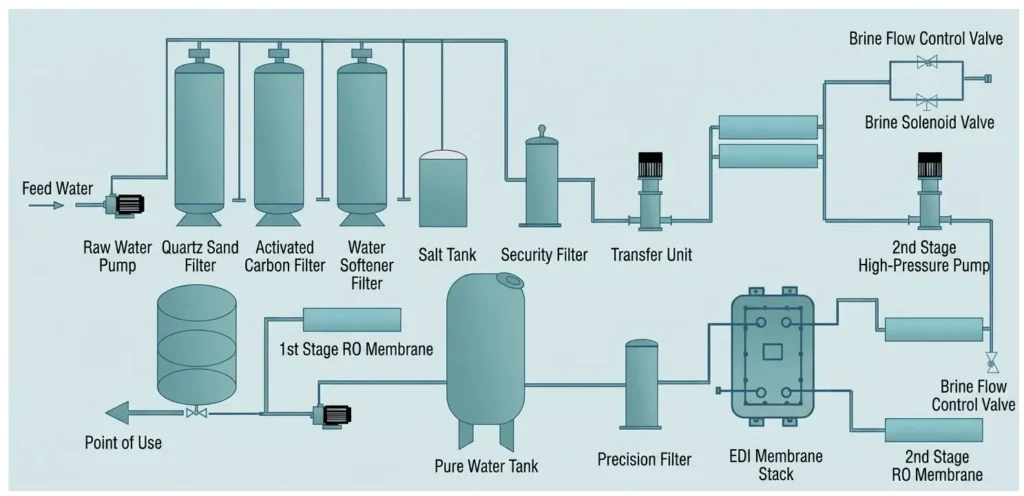

2-stage RO+EDI
- Multiple Safety Protections
- One-Touch Automatic/Manual Start
- Real-Time System & Water Quality Monitoring
- Integrated Dustproof & Noise-Reducing Cabinet
- Automatic Fault Diagnosis & Shutdown
- Stable Feed Pressure & Adjustable Flow
- Real-Time Pressure & Flow Control
Applications
Suitable for multiple biochemistry analyzers and automated biochemical analysis lines.

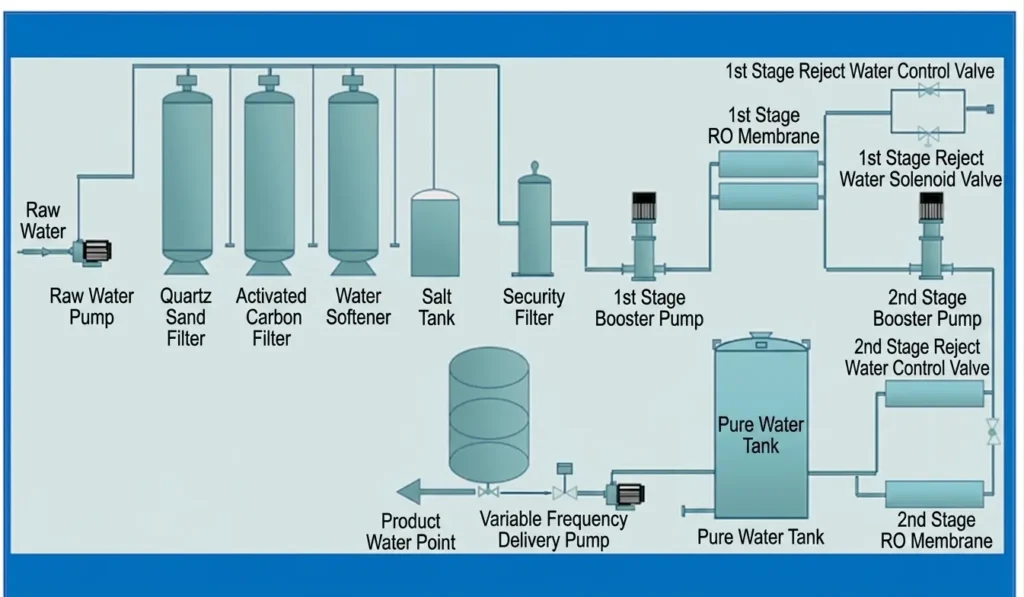

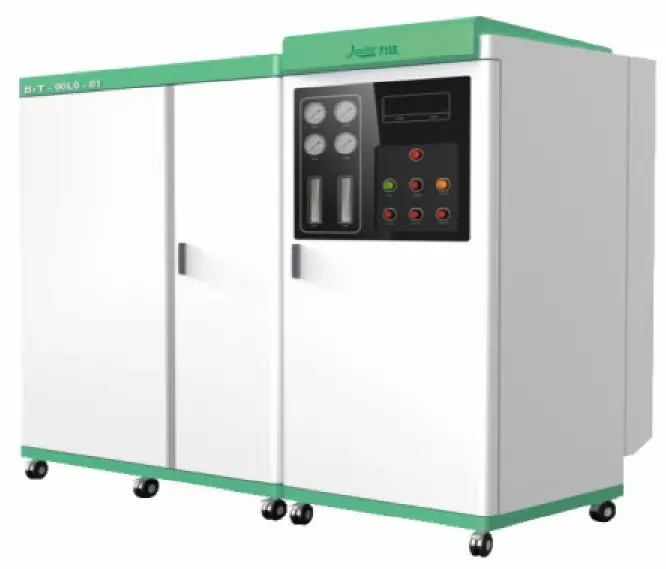

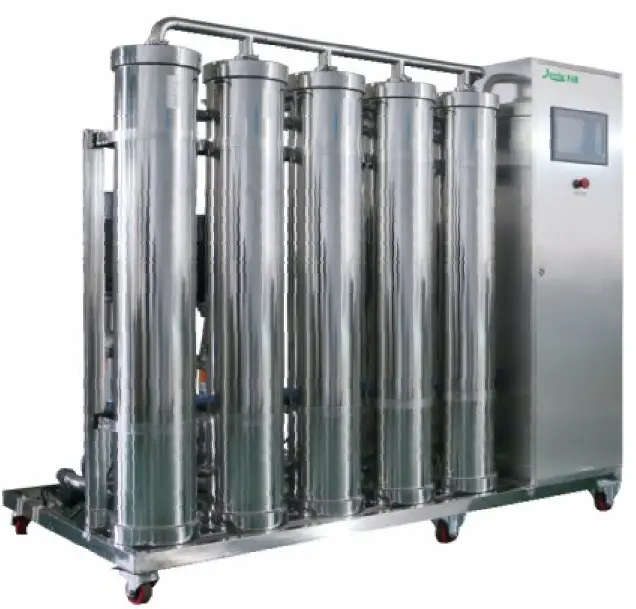

Disinfection Center-Medical Grade Reverse Osmosis System
Key Features
- Water Quality Compliant with WS 310.1-2016
- PLC Control with Touchscreen Operation
- Fully Automatic, Unattended Operation
- Multiple Safety Protections
- Real-Time System & Water Quality Monitoring
- Automatic Fault Diagnosis & Alarm
- Modular Design for Easy Maintenance
- Low-Pressure RO Membranes for High Flow & Low Energy Consumption
- Compact, Space-Saving Design
- Leak Detection & Warning System

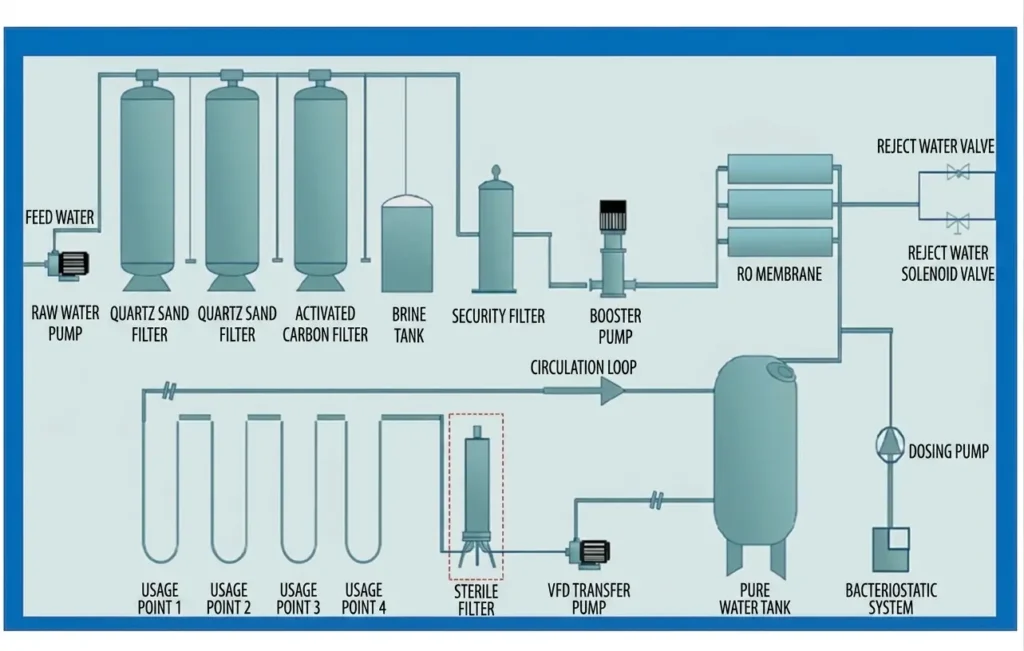

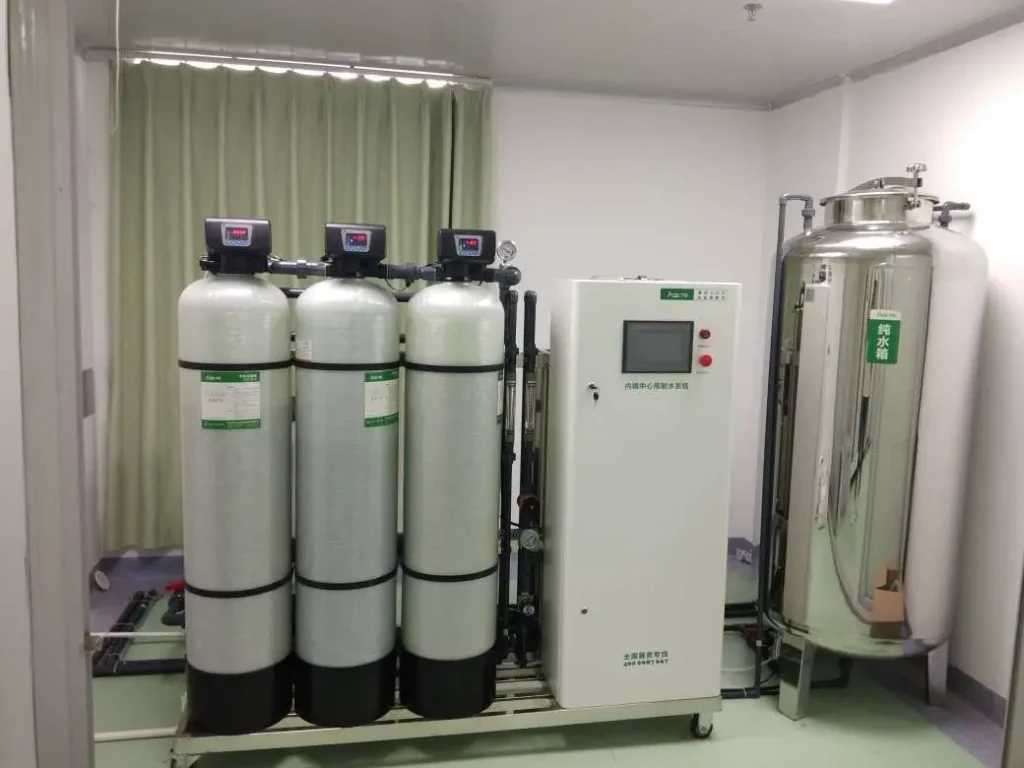

Endoscopy Center-Medical Grade Reverse Osmosis System
According to WS 507-2016, purified water used for endoscope cleaning and disinfection should comply with GB 5749 requirements, with a total bacterial count of ≤10 CFU/100 mL. The filter membrane used for purified water production should have a pore size of ≤0.2 μm.
Sterile water is water treated through a sterilization process. Microbiological testing of purified or sterile water should be performed when necessary. After disinfection, endoscopes should undergo a final rinse with purified or sterile water; endoscopes sterilized by immersion should be finally rinsed with sterile water.
Key Features
- One-Touch Centralized Control
- Automatic & Manual Operation with Safety Protection
- Automatic RO Membrane Flushing & Anti-Scaling
- Real-Time Water Quality & System Monitoring
- Compact, Modular & Easy Maintenance
- Automatic Chemical Disinfection
- Continuous Bacterial Control & Closed-Loop Circulation
- 304 Stainless Steel Sterile Water Tank & Bacteria Filtration

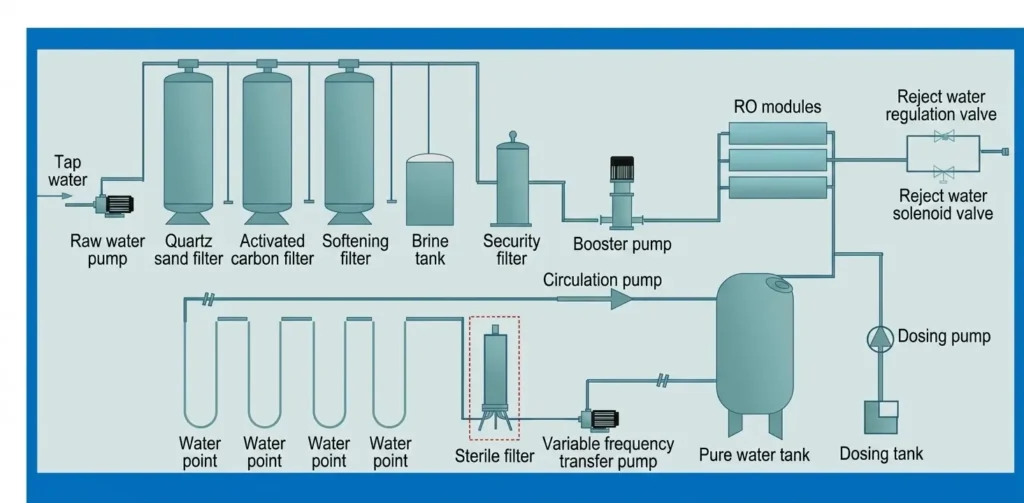

Stomatology Department-Medical Grade Reverse Osmosis System
Standards for Dental Water in Hospitals
Purified water in hospital dental departments is mainly used for dental treatment units, dental handpieces, three-way syringes, ultrasonic scalers, cup fillers, and cleaning areas.
According to DB11/T 1703-2019, the total bacterial count should be monitored in accordance with GB/T 5750.12, with a requirement of ≤100 CFU. With increasing emphasis on infection prevention and control, water treatment and disinfectant dosing systems are recommended to provide treated water to dental treatment units.
Current Dental Water Practices in General Hospitals
Standardized dental water treatment is not yet widely implemented in many hospitals. Dental treatment units are often connected directly to municipal water supplies, with periodic disinfection of the internal waterlines. While hospitals generally focus on disinfecting dental treatment equipment, the quality and treatment of the water supply receive less attention.
Key Advantages
- High-Rejection Double-Pass RO – Up to 99.9% salt rejection.
- Continuous Disinfection – Helps prevent bacterial contamination at the dental treatment unit.
- Smart Touchscreen Control – Intuitive operation and real-time system monitoring.
- 304 Stainless Steel Sterile Water Tank – Stable and hygienic water storage.
- Closed-Loop Circulation – Continuous circulation for enhanced bacterial control.
- Automatic Chemical Disinfection – Regular pipeline disinfection helps prevent biofilm formation.
- Constant-Pressure Water Supply – Variable-frequency control for stable pressure and energy-efficient operation.

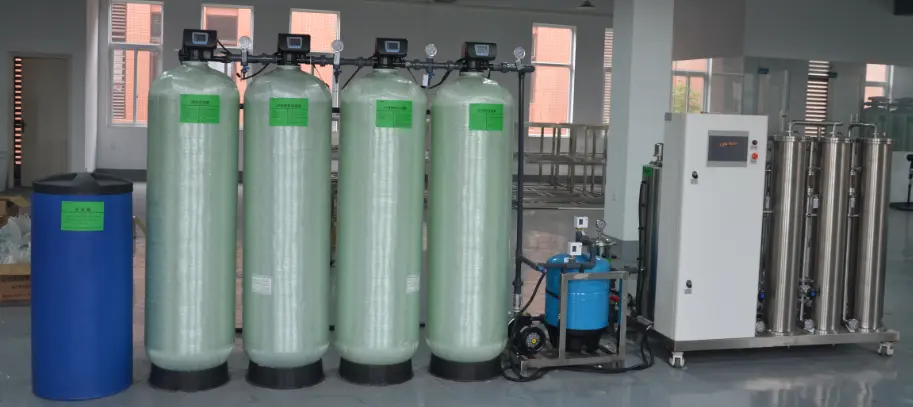

Dialysis center-Medical Grade Reverse Osmosis System
Standards & Applications
Water used for hemodialysis should have a total bacterial count of ≤100 CFU/mL and an endotoxin level of ≤0.25 EU/mL. Hemodialysis water treatment systems are suitable for dialysate preparation, dialyzer reprocessing, and dialysis concentrate preparation. For more details, visit here.
Key Features
- Remote PLC Control & Fully Automatic Operation
- Multiple Safety Protections & Fault Alarms
- Real-Time Water Quality, Pressure & Flow Monitoring
- Automatic Pretreatment Regeneration & RO Flushing
- Smart Self-Maintenance & Automatic Disinfection
- Dual Water Supply with Automatic Backup Switching
- Stainless Steel Frame & Compact Mobile Design

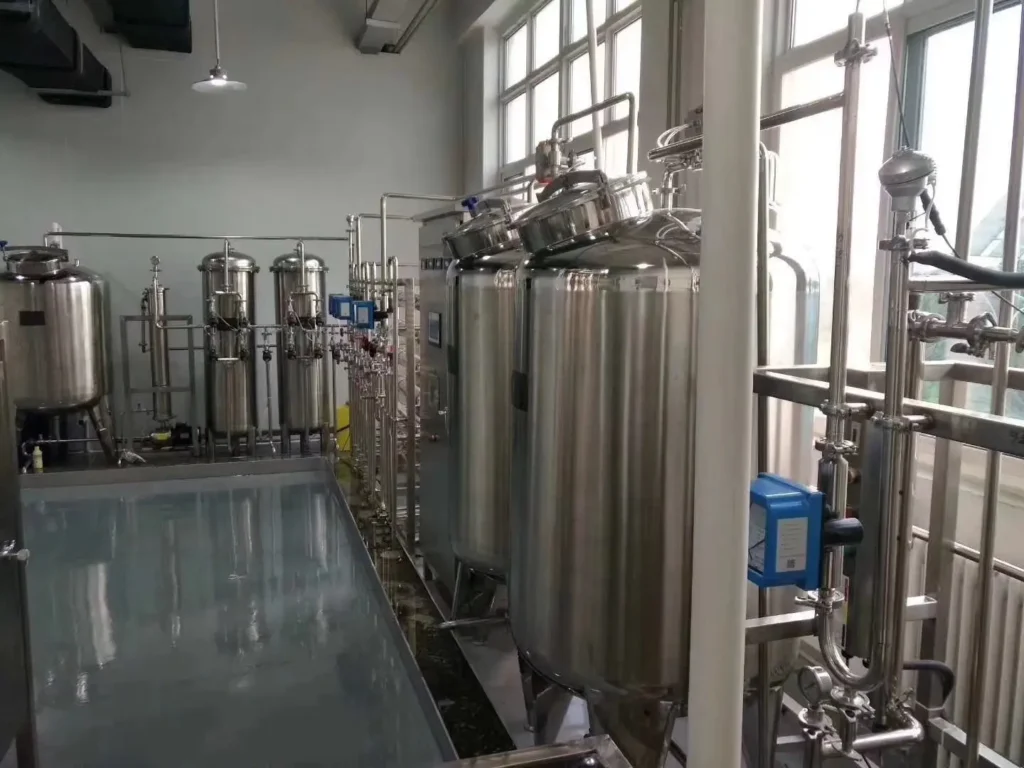

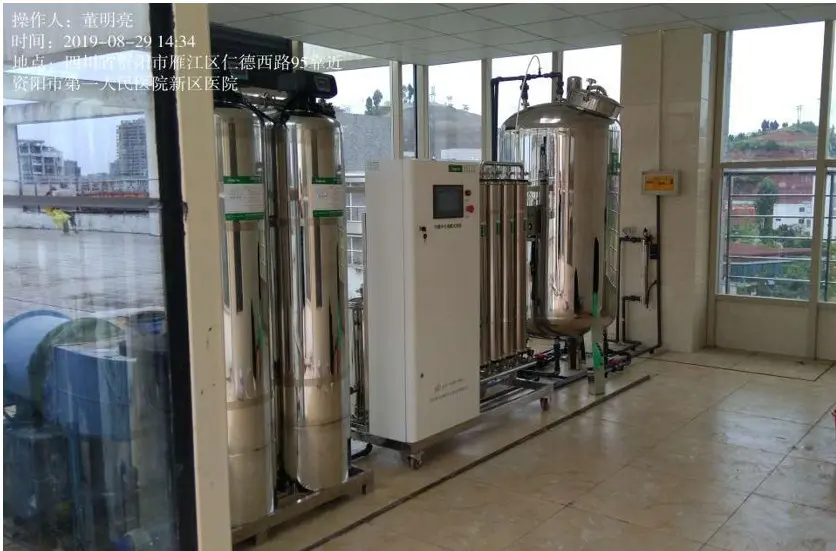

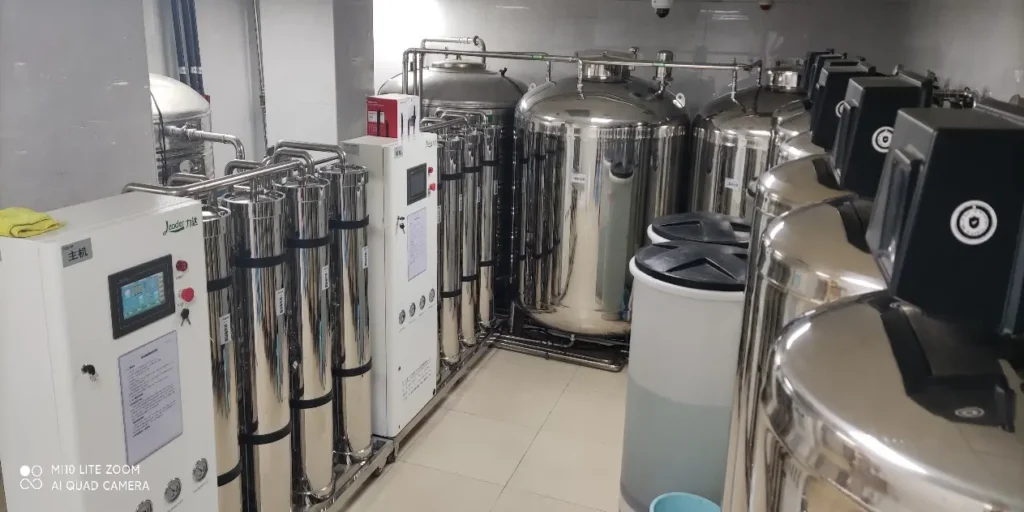

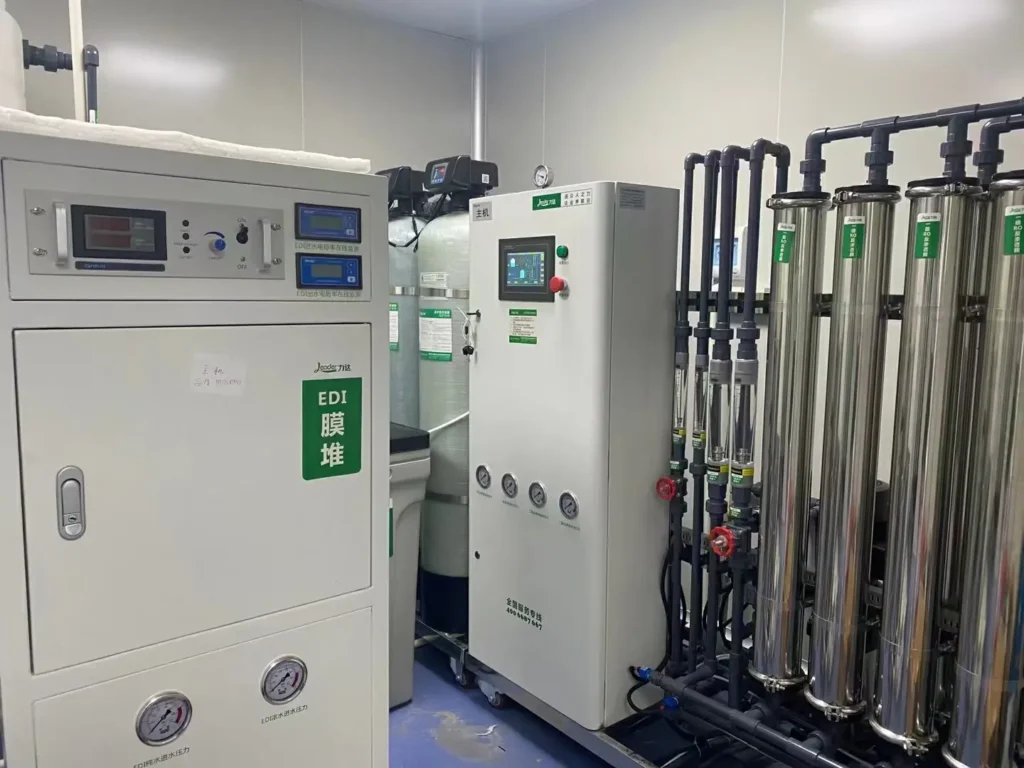

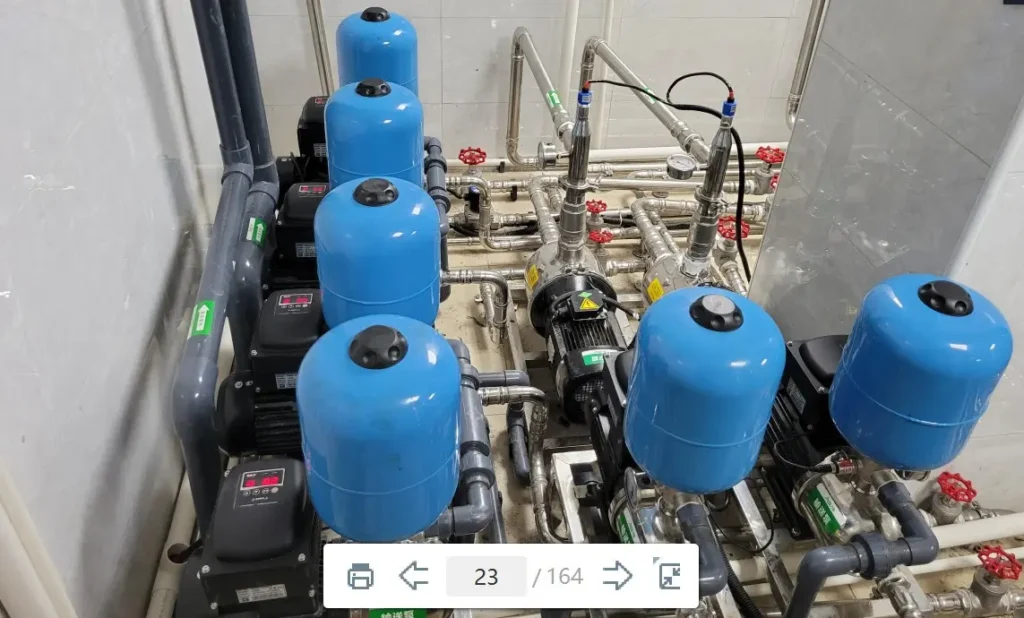

More Project References Pictures
