PE Water Tanks for Water Treatment
PE Water Tanks for Water Treatment Supplier China
Professional supply of pe water tanks, including PE brine tanks and PE dosing tanks.
Brine tanks are available from 15L to 3000L, and dosing tanks from 40L to 10000L.
All products are made of high-quality, food-grade polyethylene (PE) raw materials and formulation ingredients, utilizing advanced mature one-piece rotational molding technology. They feature attractive appearance, smooth internal and external surfaces, seamless and weld-free construction, non-toxic and odorless properties, resistance to acids, alkalis, impact, high temperatures, and freezing. They are also leak-proof, resistant to aging, require no maintenance or cleaning, and offer safe and convenient installation and transportation. These products are widely used in water treatment systems such as softening water systems and dosing systems.
Soft Water Brine Tank
Soft water brine tanks are indispensable components in water treatment systems, especially in water softening equipment. They are mainly used for storing and supplying regeneration salt (usually water softener salt) to ensure the proper operation of the system and reduce water hardness. As the core support for ion exchange resin regeneration, any issues such as cracking, leakage, or contamination of the brine tank may cause the entire water treatment system to stop operating.
25L Brine Tank for Water Softener-270(D)*470(H)
Store water softener salt: Provide an adequate salt source for the resin regeneration process in water softening equipment, ensuring that the resin can regularly restore its ability to adsorb calcium and magnesium ions.

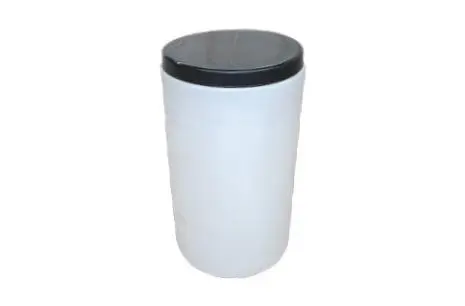

40L Water Softner Brine Tank-300(D)*610(H)
During the regeneration phase, the brine from the salt tank is drawn into the resin tank, where it replaces the hardness ions adsorbed by the resin through an ion exchange reaction, thereby "regenerating" the resin and enabling it to continue its softening function.

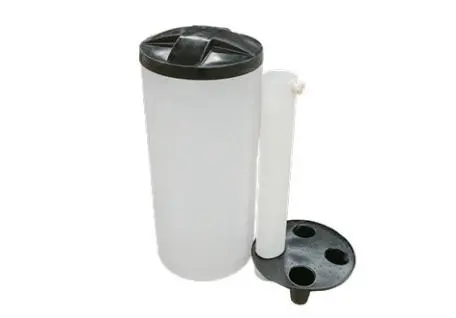

60L Brine Tanks for Water Softeners-330(D)*700(H)
Material selection: Use corrosion-resistant materials (such as food-grade PE) to prevent the tank from being corroded by salt and brine, thereby extending its service life.
100L Brine Tanks for Water Softeners-390(D)*900(H)
Capacity matching: Select the appropriate capacity based on factors such as the throughput of the water softening equipment and the regeneration cycle, ensuring an adequate salt supply and reducing the hassle of frequent salt refills.

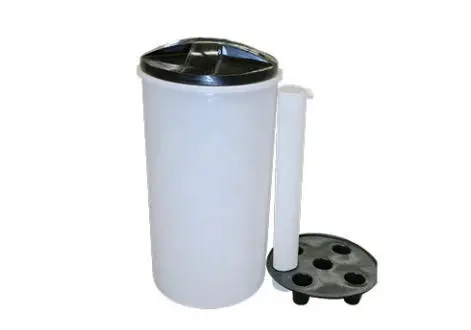

200L Salt Brine Tank-520(D)*1150(H)
Regularly check the salt level and replenish water softener salt as needed; keep the salt tank clean to prevent impurities from entering and affecting the regeneration efficiency; periodically break up salt bridges (clumps of salt that prevent proper brine dissolution).

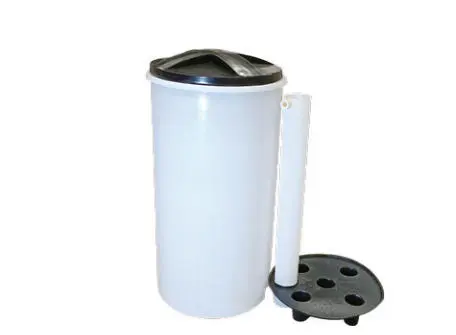

300L Softener Brine Tank-570(D)*1200(H)
The material is lightweight yet highly tough, making it resistant to damage from bumps during transport. It also offers excellent vibration and impact resistance, easily handling vibrations from equipment operation and collisions during daily handling.
For more details of water softener brine tanks of 500L, 800L, 1000L, 1500L, 2000L and 3000L, please send us inquiry.
Dosing Tank in Water Treatment Plant

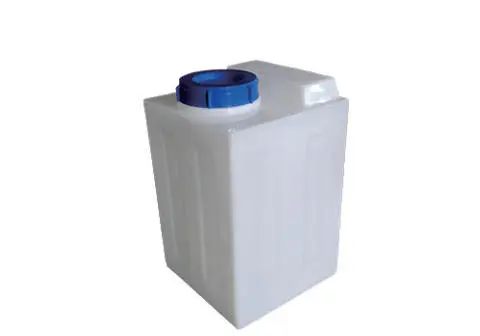

50L Antiscalant Dosing Tank
Dimension: 325mm*325mm*515mm(L*W*H)

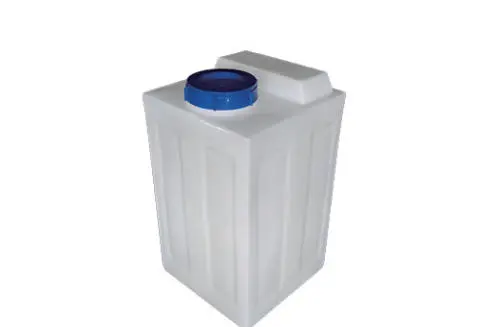

80L Chemical Dosing Tank
Dimension: 360mm*360mm*625mm(L*W*H)

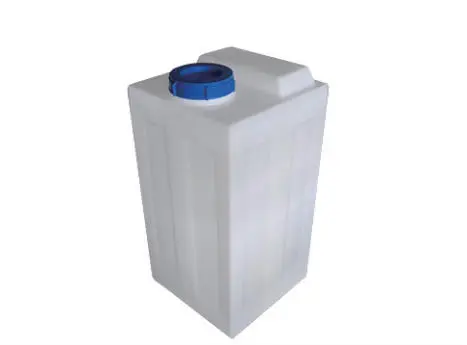

120L Chemical Dosing Tanks
Dimension: 390mm*390mm*770mm(L*W*H)
