Main Features
The industrial water softener helps prevent scale buildup, clogging, and reduced heating efficiency in household equipment such as water pipes, water heaters, coffee machines, humidifiers, steam irons, bathtubs, shower heads, and toilets.
Extends the shelf life of tofu; makes soy milk richer; allows bean sprouts to grow strong without growth additives. When washing vegetables, it helps remove pesticide residues and prolongs freshness. When cooking rice, it shortens the cooking time and results in soft, glossy grains. When making noodles, they are less likely to over-expand. During cooking, it preserves the natural taste and nutrients of vegetables.
When doing laundry, it prevents static electricity, color fading, and deformation. When washing dishes, it leaves them clean and free of water stains while improving surface brightness. It also enhances kitchen and bathroom cleaning, providing strong decontamination and deodorizing effects.
Reduces overall expenses: lowers equipment and pipeline maintenance costs by over 60%, reduces hot water fuel consumption by over 30%, and cuts detergent usage by over 50%. This industrial water softener system significantly improves household efficiency and cost savings.
Industrial water softener system Operating Parameters
Inlet pressure: 0.25 MPa – 0.5 MPa
Operating temperature: 2–50°C
Power supply: 220V / 50Hz
Raw water hardness: ≤6.4 mmol/L
Outlet water hardness: ≤0.03 mmol/L
Configuration: Single tank or multi-tank parallel design
Regeneration method: Co-current regeneration
Operating program: Automatic program control

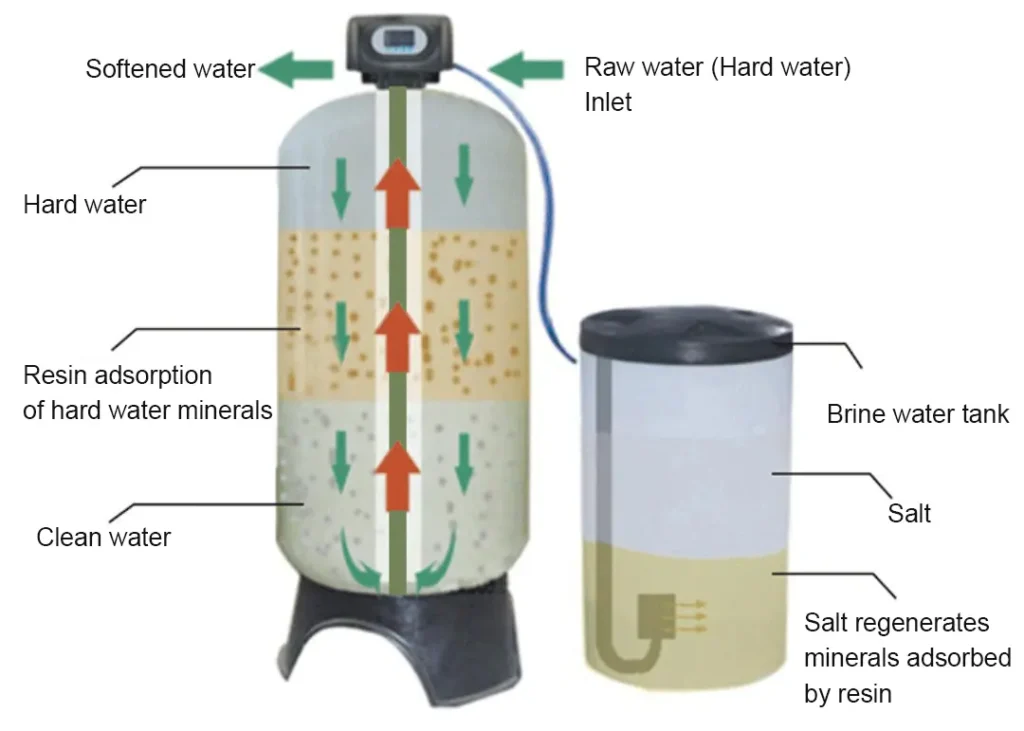

Industrial Water Softeners System Composition
Automatic control valve
FRP/SS resin tank
Ion exchange resin
PE brine tank
To inquire about the industrial water softener systems, please provide the following information:
1. Source water quality (tap water, groundwater, seawater, etc.).
2. Required water output (T/H), customizable from 0.25–200 T/H.
3. Water quality requirements: intended use of the treated water and required conductivity or resistivity.
DETAILS
MODEL
| Model | Flow (T/H) | Operation Pressure(Mpa) | Inlet/Outlet Diameter (mm) |
|---|---|---|---|
| 0.5T single tank | 0.5 | 0.25-0.5 | 25 or customized |
| 1T single tank | 1 | 0.25-0.5 | 25 or customized |
| 2T single tank | 2 | 0.25-0.5 | 25 or customized |
| 3-4T single tank | 3 | 0.25-0.5 | 25 or customized |
| 5.0T single tank | 5 | 0.25-0.5 | 32 or customized |
| 6-8T single tank | 6 | 0.25-0.5 | 32 or customized |
| 10T-300T customized | 10-300 | 0.25-0.5 | Customized |

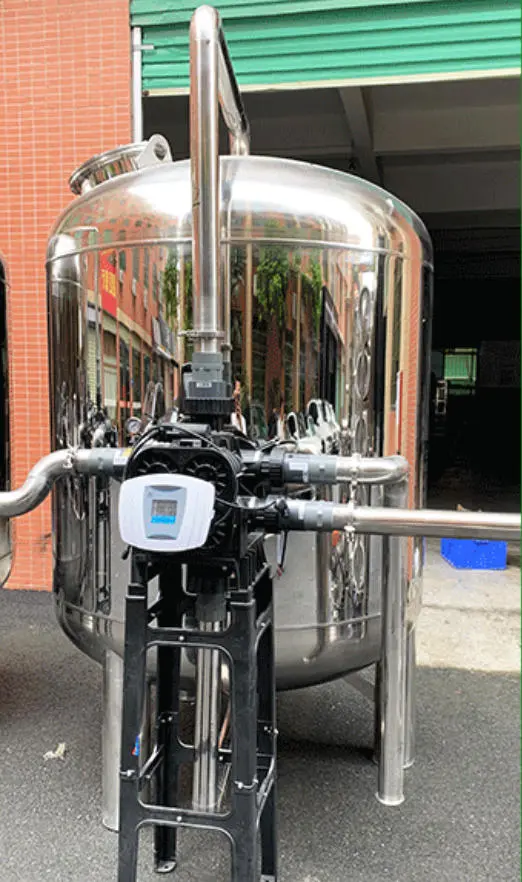

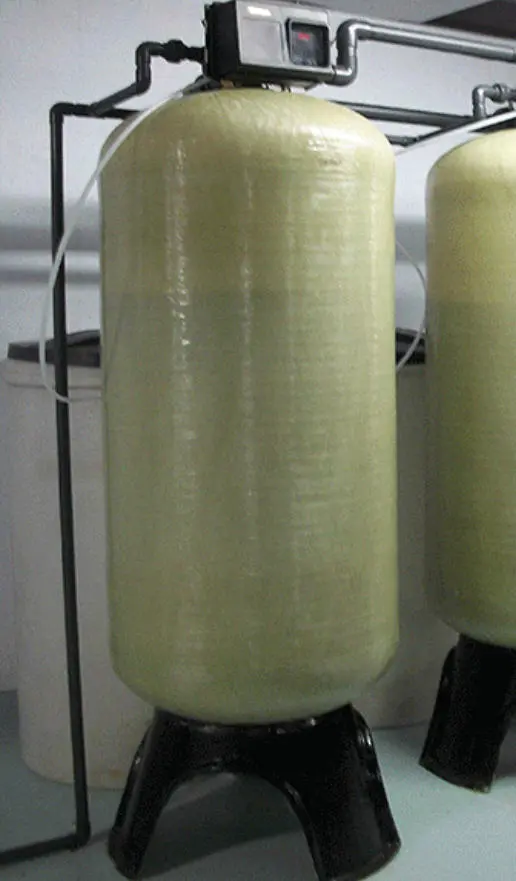

You can choose FRP/SS for the tank

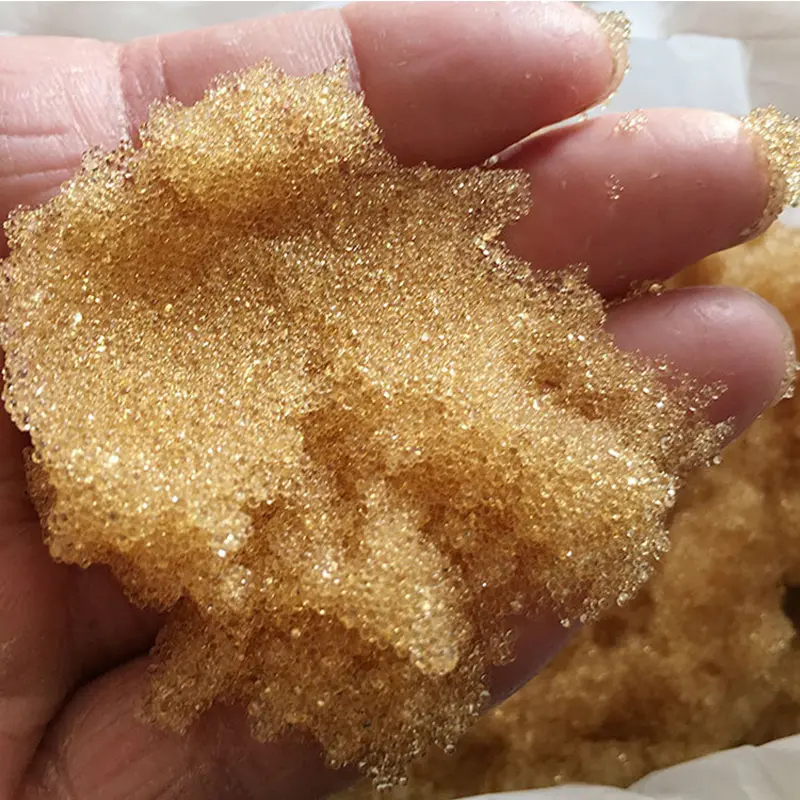

Food grade cationic resin
FAQ
Has your company evaluated the economic benefits of the pretreatment system?
Yes. The pretreatment section accounts for about 20%–30% of the total investment of the RO system, but it significantly reduces long-term operating costs, including:
40%–60% reduction in membrane replacement costs;
10%–15% lower energy consumption (due to reduced fouling and lower pressure drop);
Cleaning frequency reduced from once per month to 2–3 times per year.
Our project is quite special. Is it possible to customize the security filter (cartridge filter housing) according to our required dimensions?
No problem. Just provide us with your drawing, and we will prepare our design based on your requirements. Production will only begin after you confirm the final design.
If I order the complete pretreatment section, will the media—such as activated carbon, quartz sand, etc.—be pre-filled in the tanks, or will they be shipped empty?
For smaller systems, such as 250 LPH to 1000 LPH, some units will be shipped with the media already filled.
For larger systems, we do not pre-fill the media. The customer will need to fill it on-site after receiving the equipment, because the media may compress and damage the distributor or the tank during transportation.
Do you have any additional services?
Yes, we provide a free goods inspection service. If your supplier is within 200 km of our company (Chengdu), even the transportation cost will be covered by us. If the distance is more than 200 km, only the transportation and hotel costs will be borne by you.
Can all your products accept OEM service?
Yes, for each item, there will be a minimum order quantity, and then we can produce an OEM order for you.
Can you source some other related products for us?
Yes, whether they are water- or wastewater-related products, we can source them for you. We have been working in the water and wastewater fields for more than 10 years.
