Dosing Pump
Dosing Pump Supplier
Dosing pumps manufactured in China for global industrial applications.
We are a professional Chinese dosing pump supplier, providing solenoid metering pumps and mechanical diaphragm metering pumps for water treatment, chemical processing, environmental protection, food & beverage, pharmaceutical, and industrial fluid control systems.
Our dosing pumps are designed for high-precision chemical injection, stable long-term operation, and reliable system integration, supporting applications such as RO systems, EDI pretreatment, wastewater treatment, boiler water treatment, cooling tower dosing, and disinfection systems.
With strong OEM/ODM manufacturing capability, engineering support, and customized configuration services, we provide not only pumps, but complete chemical dosing solutions for industrial and municipal projects worldwide.
Water Treatment Solenoid Dosing Pump
Our solenoid dosing pump provides ±1% dosing accuracy and reliable chemical injection. Made with a solid PTFE diaphragm, it is chemically compatible with various liquids and has a long service life. The pump features smooth suction, adjustable flow with timing function, excellent sealing.
- Pump speed LCD dispaly
- CNC head assembly with exhaust knob
- Timer standard, cycle or countdown type
- External control optional with RS485 of Modbus-RTU
- External control optional, pulse or 4-20mA anolog

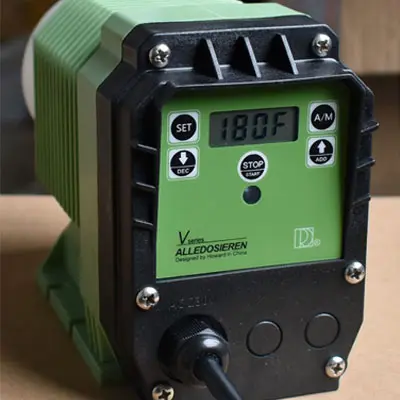

Chemical Dosing Pump-V Series
With a flow range of 0.48–15.20 L/h and pressure up to 8.2 bar, this dosing pump features advanced control options (LCD display, timer/cycle control, and optional external signal input), supports pulse or 4–20 mA automation integration, offers flexible adjustment and easy on-site operation, and is designed for excellent corrosion resistance, reliable sealing, long-term stability, making it ideal for industrial control and automatic dosing applications.
| Model | Flow (L/h) | Pressure (Bar) | Stroke (N/m) | Suction Head (m) | Power (w) | Weight (kg) | Hose (mm) | Port (mm) | Power |
|---|---|---|---|---|---|---|---|---|---|
| 00508 | 0.48 | 8.2 | 90 | 1.2 | 12 | 2.9 | 4X6 | DN15 | AC 220V AC 110V DC 24V |
| 1.08 | 8.2 | 90 | 1.2 | 12 | |||||
| 02008 | 2.16 | 8.2 | 120 | 1.5 | 12 | ||||
| 03008 | 3.12 | 7.6 | 120 | 1.5 | 12 | ||||
| 04006 | 3.60 | 6.8 | 120 | 1.5 | 12 | ||||
| 05006 | 5.04 | 6.2 | 160 | 1.5 | 16 | ||||
| 06005 | 6.00 | 4.8 | 160 | 1.5 | 16 | ||||
| 08004 | 8.16 | 3.8 | 160 | 1.5 | 16 | ||||
| 09003 | 9.00 | 3.5 | 160 | 1.5 | 24 | ||||
| 10004 | 10.20 | 3.2 | 160 | 1.5 | 24 | ||||
| 12003 | 12.48 | 2.8 | 180 | 1.8 | 30 | ||||
| 15002 | 15.20 | 1.8 | 180 | 1.8 | 30 |

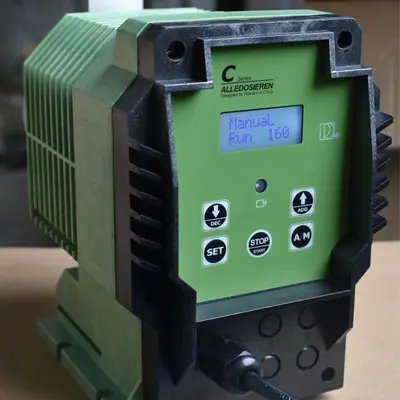

Metering Dosing Pump-C series
Designed for stable and reliable dosing, this pump covers standard flow and pressure ranges (up to ~31.2 L/h and ~1.8 bar), is ideal for applications without complex control requirements, features a simple control interface and design, and offers a cost-effective, high-value solution for routine dosing applications.
| Model | Flow (L/h) | Pressure (Bar) | Speed (r/min) | Suction Head (m) | Power (w) | Weight (kg) | Hose (mm) | Port (mm) | Power |
|---|---|---|---|---|---|---|---|---|---|
| 01023 | 1.08 | 22.7 | 90 | 1.2 | 35 | 4.6 | 4x6 | G1/2" | AC 220V AC 110V DC 24V |
| 02018 | 2.16 | 17.3 | 120 | 1.2 | 35 | ||||
| 04015 | 4.20 | 14.1 | 120 | 1.5 | 40 | ||||
| 06011 | 6.80 | 11.3 | 160 | 1.5 | 40 | ||||
| 09009 | 9.00 | 8.5 | 160 | 1.5 | 40 | ||||
| 12007 | 12.48 | 6.8 | 160 | 1.5 | 40 | ||||
| 16005 | 16.80 | 4.2 | 160 | 1.5 | 49 | 7x10 | |||
| 20003 | 21.60 | 3.5 | 160 | 1.5 | 49 | ||||
| 26003 | 26.50 | 2.5 | 160 | 1.5 | 49 | ||||
| 30002 | 31.20 | 1.8 | 160 | 1.5 | 49 |

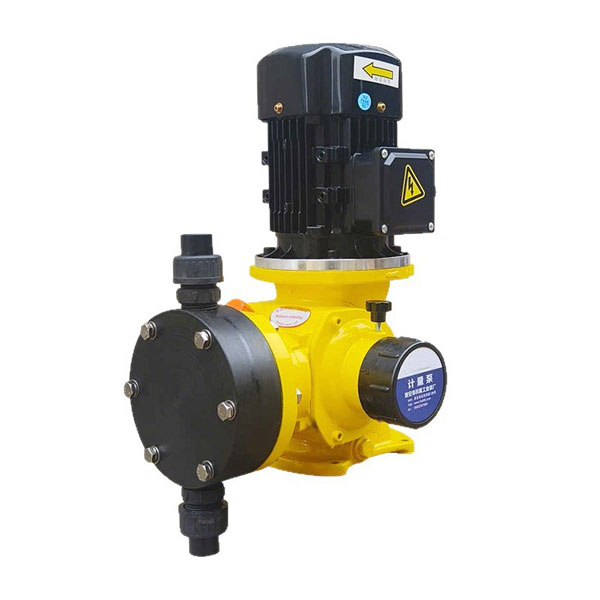

Mechanical Diaphragm Dosing Pump
The mechanical diaphragm metering pump series is driven by an electric motor through a worm-gear and turbine transmission system, making it suitable for low-pressure fluid dosing applications.
The diaphragm metering pump uses a flexible diaphragm to replace the piston, performing reciprocating motion under the drive mechanism to complete the suction and discharge process. Thanks to the diaphragm structure, the metered fluid is completely isolated from the drive and lubrication system, ensuring safe and reliable operation.
With excellent corrosion resistance provided by composite materials (pump head materials available in PVC, PTFE, 304, 316, and 316L stainless steel), the pump is capable of handling particle-free corrosive and non-corrosive liquids.
This product is widely used in industries such as petrochemical, chemical processing, power generation, metallurgy, mining, shipbuilding, light industry, and agriculture.

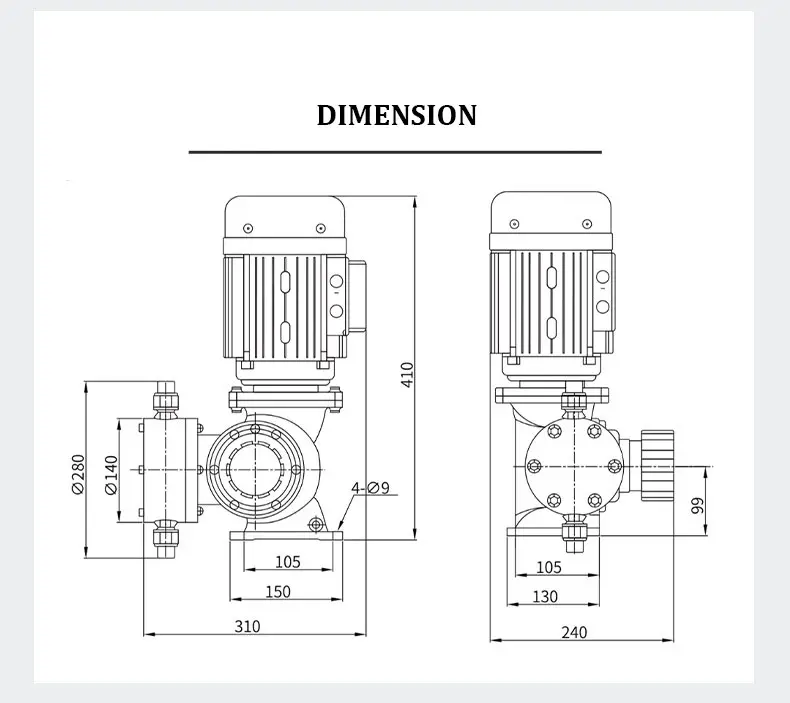

Mechanical Dosing Pump Parameters
| Model | Flow (L/h) | Pressure (Mpa) | Power (Kw) | Weight (kg) | Port (mm) | Model | Flow (L/h) | Pressure (Mpa) | Power (Kw) | Weight (kg) | Port (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25/1.2 | 25 | 1.2 | 0.37 | 16 | DN15 | 200/0.7 | 200 | 0.7 | 0.37 | 17 | DN15 | |
| 30/1.2 | 30 | 1.2 | 0.37 | 16 | DN15 | 240/0.6 | 240 | 0.6 | 0.37 | 17 | DN15 | |
| 50/1.0 | 50 | 1.0 | 0.37 | 16 | DN15 | 300/0.6 | 300 | 0.6 | 0.55 | 17 | DN15 | |
| 90/0.8 | 90 | 0.8 | 0.37 | 16 | DN15 | 400/0.5 | 400 | 0.5 | 0.55 | 18 | DN15 | |
| 120/0.8 | 120 | 0.8 | 0.37 | 16 | DN15 | 500/0.5 | 500 | 0.5 | 0.55 | 18 | DN20 | |
| 150/0.8 | 150 | 0.8 | 0.37 | 16 | DN15 | 600/0.3 | 600 | 0.3 | 0.55 | 18 | DN20 | |
| 170/0.7 | 170 | 0.2 | 0.37 | 16 | DN15 | 800/0.2 | 800 | 0.2 | 0.75 | 19 | DN25 | |
| 200/0.7 | 200 | 0.7 | 0.37 | 16 | DN15 | 1000/0.2 | 1000 | 0.2 | 0.75 | 19 | DN25 | |
| 240/0.6 | 240 | 0.6 | 0.37 | 16 | DN15 |
If you need SEKO dosing pump, please visit the link.
Related Articles
FAQ of Dosing Pump for Water Treatment
How do dosing pumps work?
Its working principle is to use a motor or other power source to drive a piston or diaphragm in a reciprocating motion, pushing the liquid from the suction side to the discharge side.
How to set up a dosing pump?
First, confirm the chemical type, concentration, and flow range, and check compatibility with the pump materials. Adjust flow mechanically (stroke length) or electronically (panel settings), set outlet pressure according to piping resistance, and use a pressure gauge and safety valve for monitoring. Finally, run a short test, check for leaks or noise, and calibrate the flow (within ±5% of the target).
Is it a chlorine dosing pump?
In drinking water disinfection, dosing pumps can be used to add disinfectants such as chlorine, sodium hypochlorite, or chlorine dioxide to eliminate bacteria and pathogens.
For swimming pool water treatment, electromagnetic dosing pumps can add disinfectants (e.g., chlorides) to maintain proper disinfection levels.
Do you supply OEM metering pump?
Yes, we provide OEM service for both pneumatic metering pump and mechanically actuated diaphragm metering pump.
What is normal metering pump troubleshooting?
Four common high-frequency issues: abnormal flow, start-up failure, chemical leakage, and unusual noise or vibration.
What are the main metering pump types?
Common dosing system pumps include peristaltic pumps, diaphragm pumps, and centrifugal pumps. The specific choice should be based on actual requirements and the application scenario.
