Advantages of The Ultrafiltration System
- An ultrafiltration system provides high impurity removal efficiency, delivering product water quality far superior to traditional treatment methods.
- It eliminates or greatly reduces the need for chemical reagents, preventing secondary pollution.
- The system offers easy automation and high reliability.
- With excellent chemical stability, it is resistant to acids, alkalis, and hydrolysis, enabling the ultrafiltration system to be applied across various fields.
- It withstands high temperatures, allowing sterilization using ultra-high-temperature steam or ethylene oxide.
- The ultrafiltration system operates within a wide pH range, including strong acids, strong alkalis, and multiple organic solvents.
- The ultrafiltration system provides high filtration precision, effectively removing colloids, bacteria, suspended solids, and other harmful substances from water.
- Its overall cost is comparable to conventional water treatment methods. Domestic wastewater can be treated for reuse, while industrial wastewater—often difficult to meet standards with standard technologies—can be fully treated using the ultrafiltration system.
Industrial Ultrafiltration Systems Operation Parameters
| Operation mode | Pretreatment | Work pressure |
|---|---|---|
| External pressure operation (dead end filtration or cross flow filtration) | 50-150μm | 0.02-0.2MPa |
| Maximum inlet pressure | Maximum transmembrane pressure difference | Operating temperature range |
| 0.25MPa | 0.15MPa | 5°C-40°C |
| Continuous operation pH range | Inlet turbidity | Backwash frequency |
| 2-11 | ≤50NTU | 15-60 minutes per time |
| Backwash pressure | Backwash flow | Air wash aeration pressure |
| ≤0.2MPa | 100-150L/H.m2 | 0.1MPa |
| Turbidity of produced water | Aeration flow rate(Nm3/h) | Air washing and aeration time |
| <0.1NTU | 8-12 | 30-60 seconds |
| SDI15 | Maximum NaOCL concentration | |
| <3 | 2000mg/L |

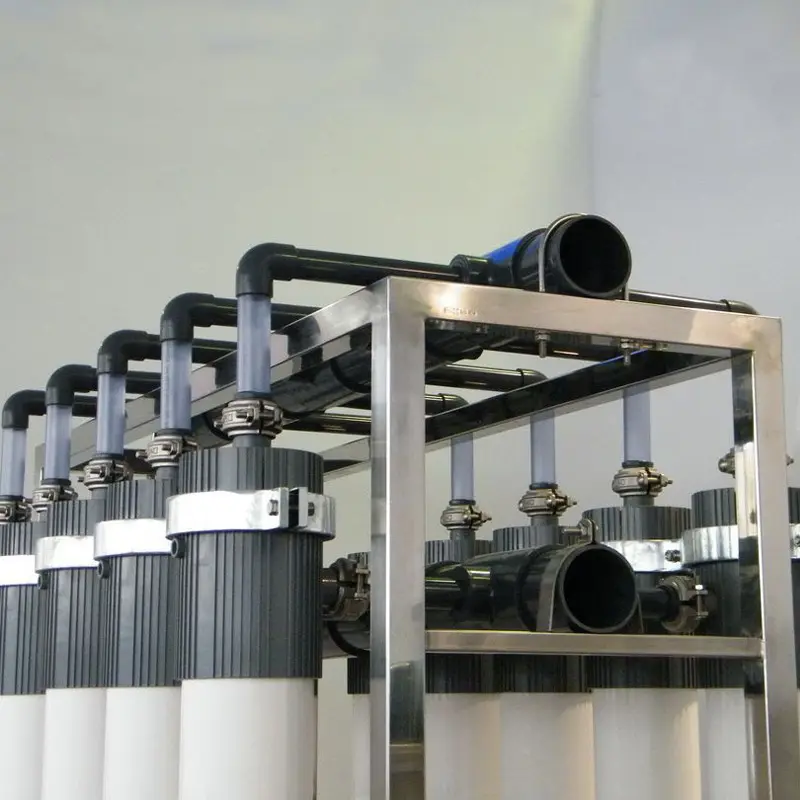

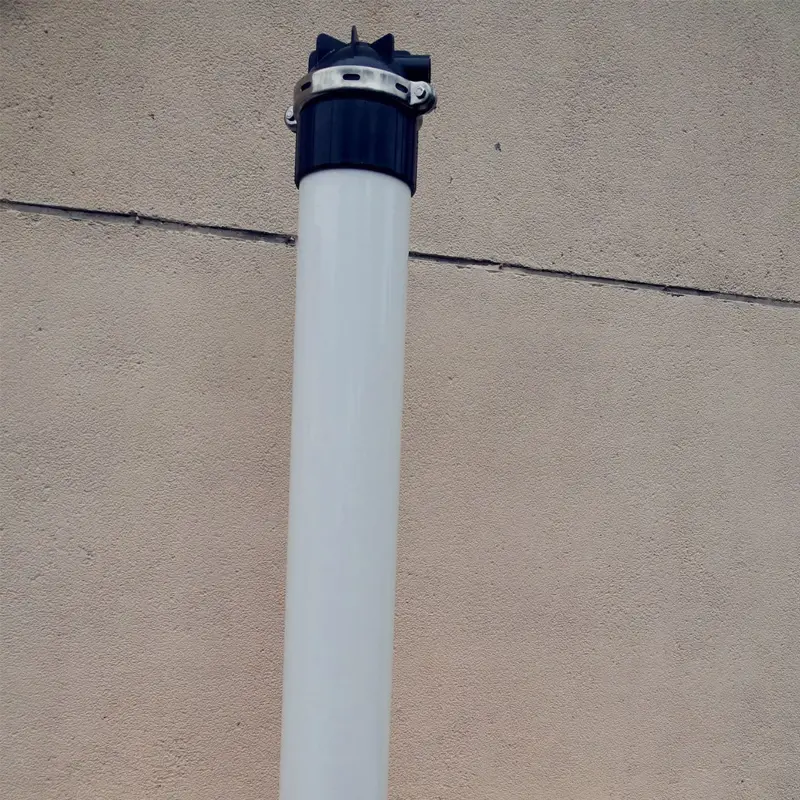

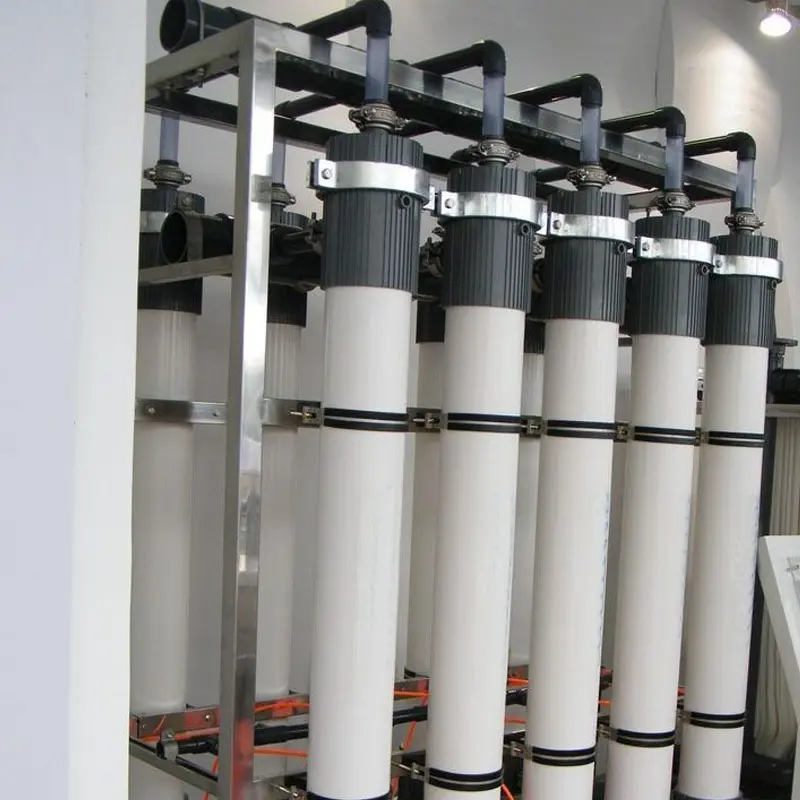

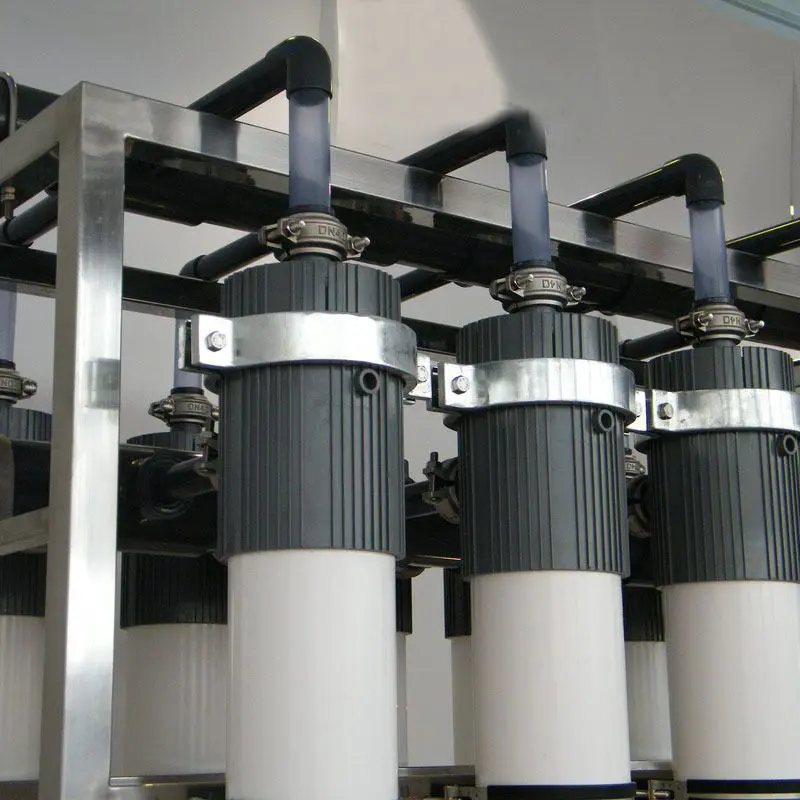

DETAILS
MODEL
Industrial Ultrafiltration System Models
| UF Membrane Element Quantity | Model No. | Total Membrane Area m2 | Suggested Designing Flux m3/h |
|---|---|---|---|
| 4 | UF-4-16 | 308 | 16 |
| 6 | UF-6-24 | 462 | 24 |
| 8 | UF-8-32 | 616 | 32 |
| 10 | UF-10-40 | 770 | 40 |
| 12 | UF-12-48 | 924 | 48 |
| 14 | UF-14-56 | 1078 | 56 |
| 16 | UF-16-64 | 1232 | 64 |
| 18 | UF-18-72 | 1386 | 72 |
| 20 | UF-20-80 | 1540 | 80 |
| 22 | UF-22-88 | 1694 | 88 |
If you need reliable membrane ultrafiltration system, send us the inquiry as below.

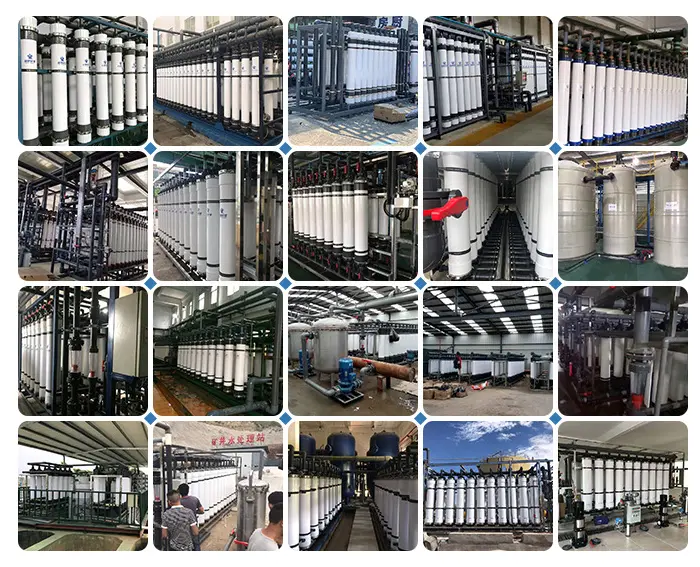

APPLICATION
Water Ultrafiltration System is widely used in different types of projects
FAQ
Are your water treatment systems all standard, or do they need to be customized?
For small capacities from 250 LPH to 3000 LPH, most systems are standard, but we adjust the production according to the customer’s local voltage and frequency. For larger capacities, we design the system based on the raw water quality.
For some larger systems, the shipping cost is high if they are fully assembled due to the large volume. Can you ship all components unassembled so we can assemble them ourselves after receiving them?
Yes, that’s possible. Some of our customers already operate this way. It can significantly reduce your sea freight cost, and in some countries it can even help lower import duties.
Can you provide installation services for your systems?
For small systems, installation is very simple, and we provide detailed documentation so customers can handle the installation themselves. For large systems, we can provide on-site installation services, but the customer needs to cover the travel and accommodation expenses for the installation personnel.
Do you have any additional services?
Yes, we provide a free goods inspection service. If your supplier is within 200 km of our company (Chengdu), even the transportation cost will be covered by us. If the distance is more than 200 km, only the transportation and hotel costs will be borne by you.
Can all your products accept OEM service?
Yes, for each item, there will be a minimum order quantity, and then we can produce an OEM order for you.
Can you source some other related products for us?
Yes, whether they are water- or wastewater-related products, we can source them for you. We have been working in the water and wastewater fields for more than 10 years.
