Whole House Ultrafiltration Water Filter Working Principle
This ultrafiltration water filter system (hollow fiber ultrafiltration membrane water filter) is a high-performance, non-electric solution for whole-house water purification. Designed with a convenient clamp-type structure, the ultrafiltration water filter can be easily disassembled for thorough cleaning, saving time and effort. Made from durable stainless steel and equipped with a 0.01-micron PVDF membrane, this ultrafiltration water filter effectively removes bacteria, algae, rust, sand, and other impurities, ensuring safe and clean water for your family. Its non-electric operation and high-flow capacity make this ultrafiltration water filter ideal for households seeking an eco-friendly, low-maintenance filtration solution.
As a wholesale supplier in China, we will try our best to provide you high quality whole house ultrafiltration water filter.
Our Customer Feedback of Whole House Ultrafiltration Water Filter
Whole House Ultrafiltration Water Filter Paremeters
| Filter element | Ultrafiltration membrane | Water purification effect | Remove sediment, bacteria, etc |
|---|---|---|---|
| Filtration stage | 1 stage | Category | Purification machine |
| Water outlet mode | Single | OEM | Yes |
| Raw water request | Well water, surface water, yellow mud water, river water, municipal tap water | Temperature range | 1-45°C |
| Usage location | Central water purification system | Water pressure range | 1-4(MPa) |
| Can the filter element be replaced | Yes | Filter housing material | 304 SS |
| Capacity | 1000L-20000L | Membrane material | PVDF, handwashable UF |

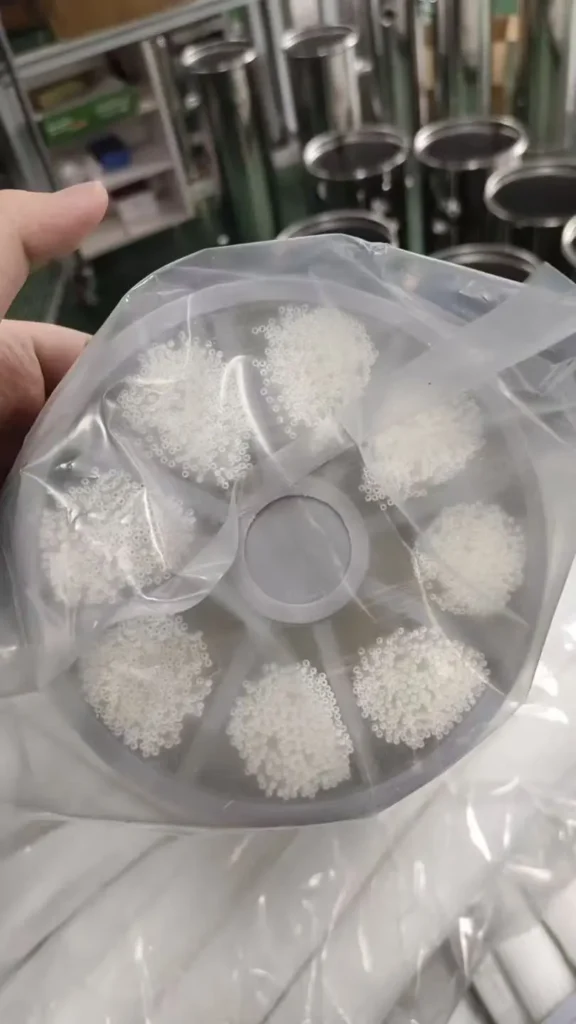

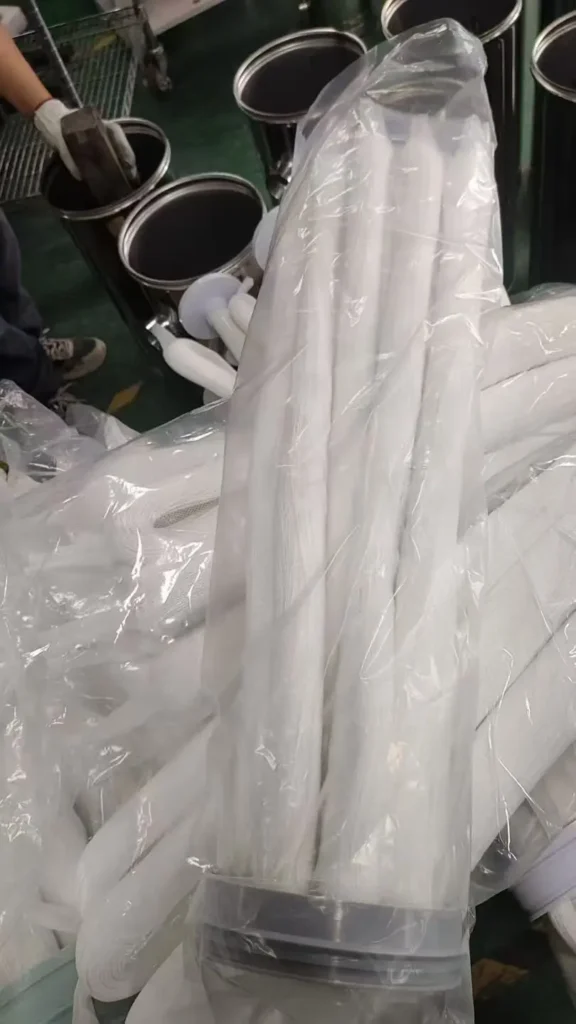

Whole House Ultrafiltration Water Filter Details
Whole House Ultrafiltration Water Filter Model
Find the Right Whole House Ultrafiltration Water Filter
Answer one simple question and we'll recommend the right membrane capacity.
Recommended Result
Recommended Membrane Capacity: L/day
Recommended Model: UF-
Why this model?
- Lower pressure drop
- Longer membrane service life
- Stable water flow
- Cost-effective operation
- Suitable for whole house water filtration

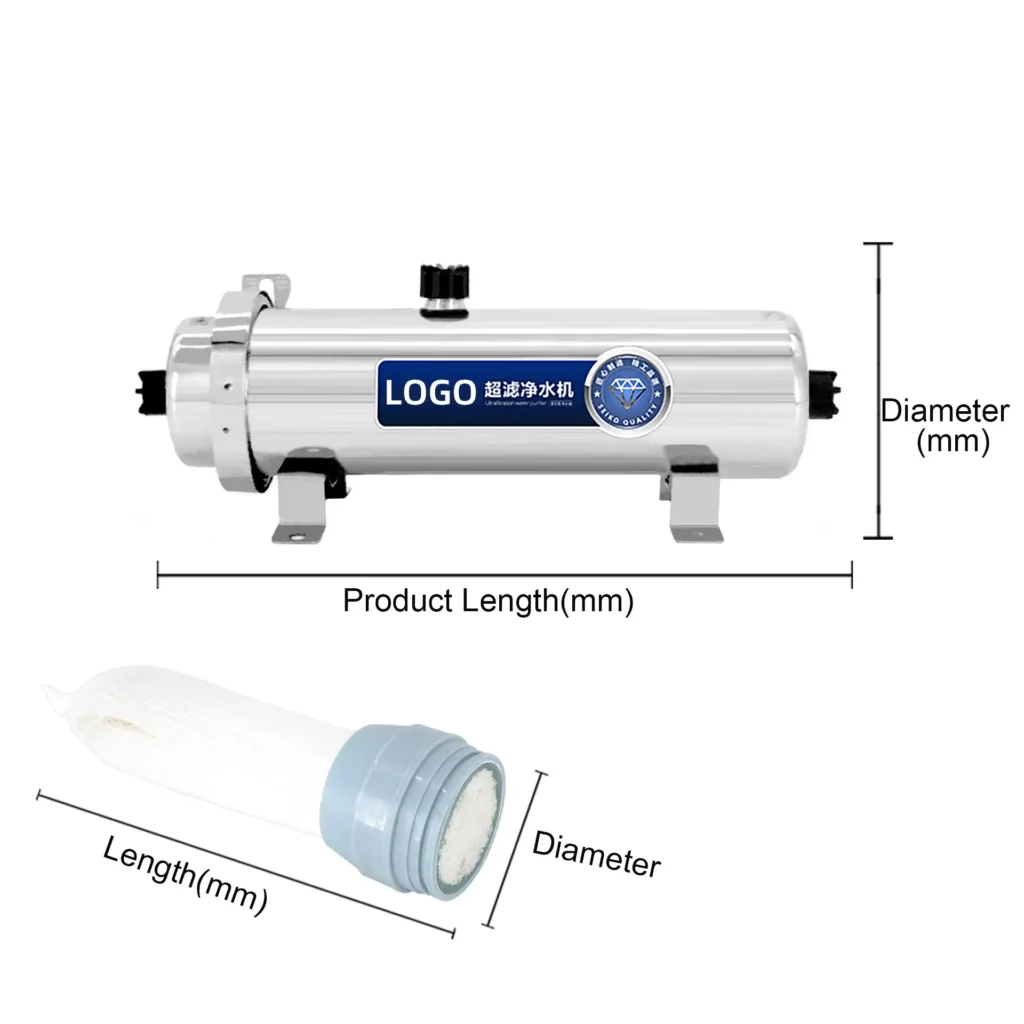

| Model No. | Type | Flow | Product size | Cartridge specification | Interface port size |
|---|---|---|---|---|---|
| 89-1T | Horizontal | 1000L | 128*370mm | 89*270mm | 1/2 inch male thread |
| 102-2T | Horizontal | 2000L | 140*530mm | 102*380mm | 3/4 inch male thread |
| 127-2.5T | Horizontal | 2500L | 170*520mm | 127*350mm | 1 inch female thread |
| 127-4.5T | Horizontal | 4500L | 170*720mm | 127*500mm | 1 inch female thread |
| 127-6.5T | Horizontal | 6500L | 170*920mm | 127*700mm | 1 inch female thread |
| 159-3T | Horizontal | 3000L | 220*420mm | 159*270mm | 1 inch female thread |
| 159-5T | Horizontal | 5000L | 220*620mm | 159*400mm | 1 inch female thread |
| 159-8T | Horizontal | 8000L | 220*910mm | 159*650mm | 1 inch female thread |
| 159-10T | Horizontal | 10000L | 220*1010mm | 159*750mm | 1 inch female thread |
| 203-15T | Horizontal | 15000L | 310*760mm | 203*510mm | 1.5/2 inch female thread |
| 203-20T | Horizontal | 20000L | 310*960mm | 203*750mm | 1.5/2 inch female thread |

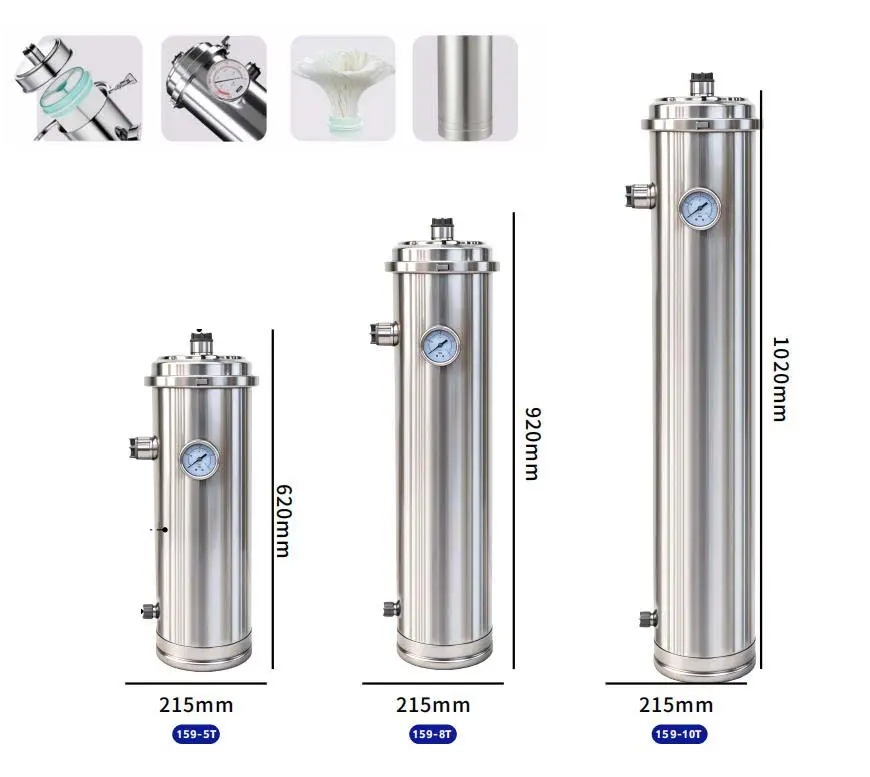

Vertical UF Ultrafiltration Water Filter
One-click precision casting clamp opens for easy access, cleaning, and filter change. 304 stainless steel resists rust for outdoor use. Built-in pressure gauge prevents leaks. Durable PVDF membrane can be hand-washed. Multiple sizes and flows available.

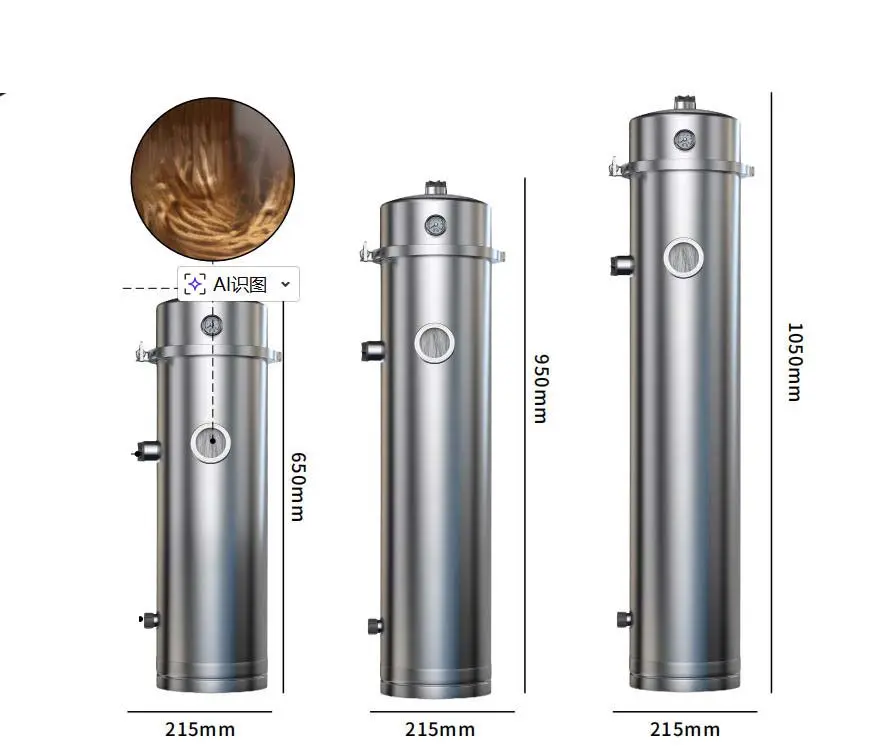

Visible Ultrafiltration Membrane Water Filter
No pipe disassembly required / Whole-house indoor & outdoor filtration. New model features a viewing window to check the filter status at any time. Clean the filter element without disassembling the pipes.

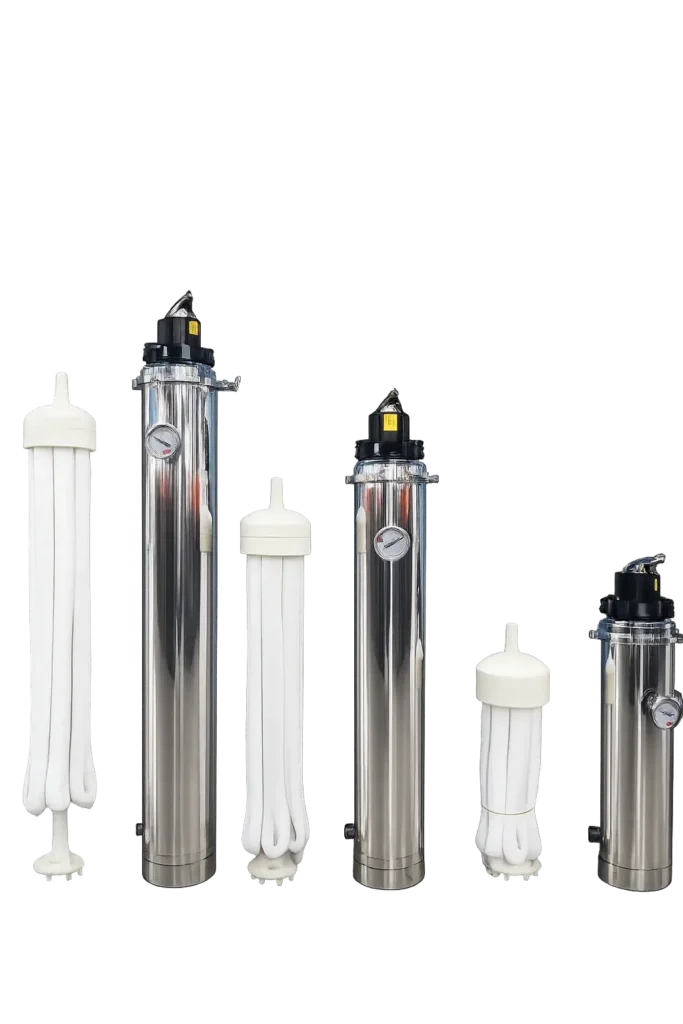

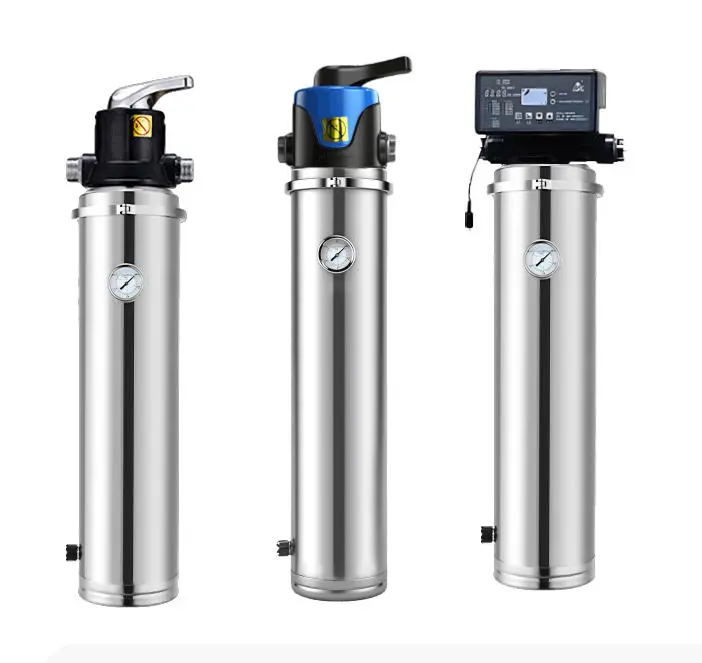

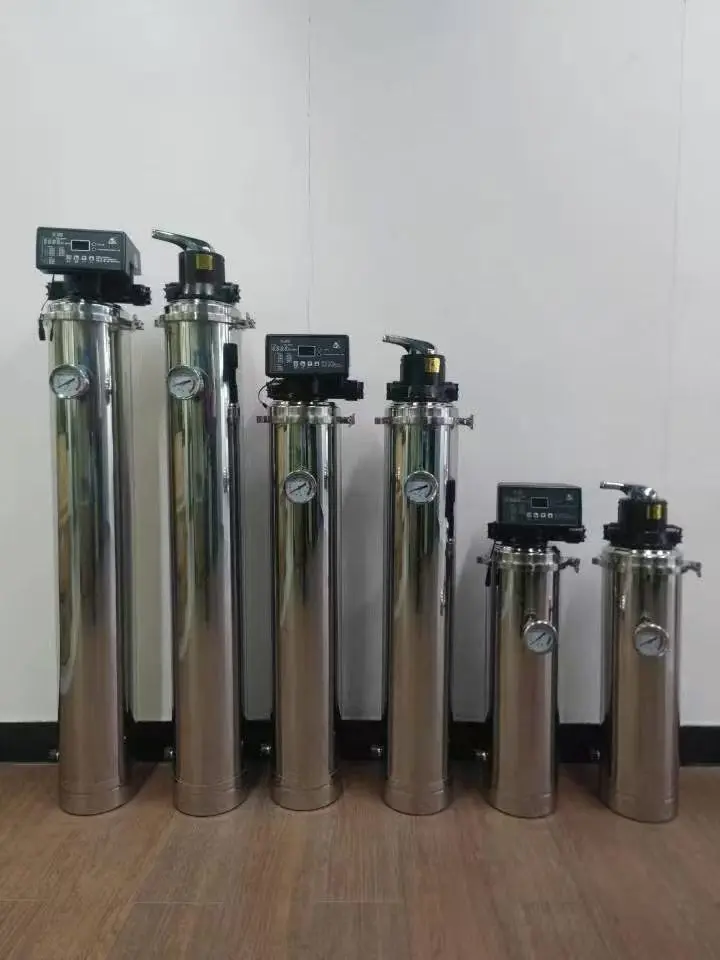

Control Valve Type Ultrafiltration Water Filter China
The automatic valve head allows you to set the forward and reverse sewage flushing times, and will automatically perform forward and reverse sewage flushing at the specified time (default interval is 2 days). The manual valve head allows you to select the corresponding function by turning the valve head in the indicated direction.
If you need ultrafiltration whole house water filter, send us the inquiry as below.

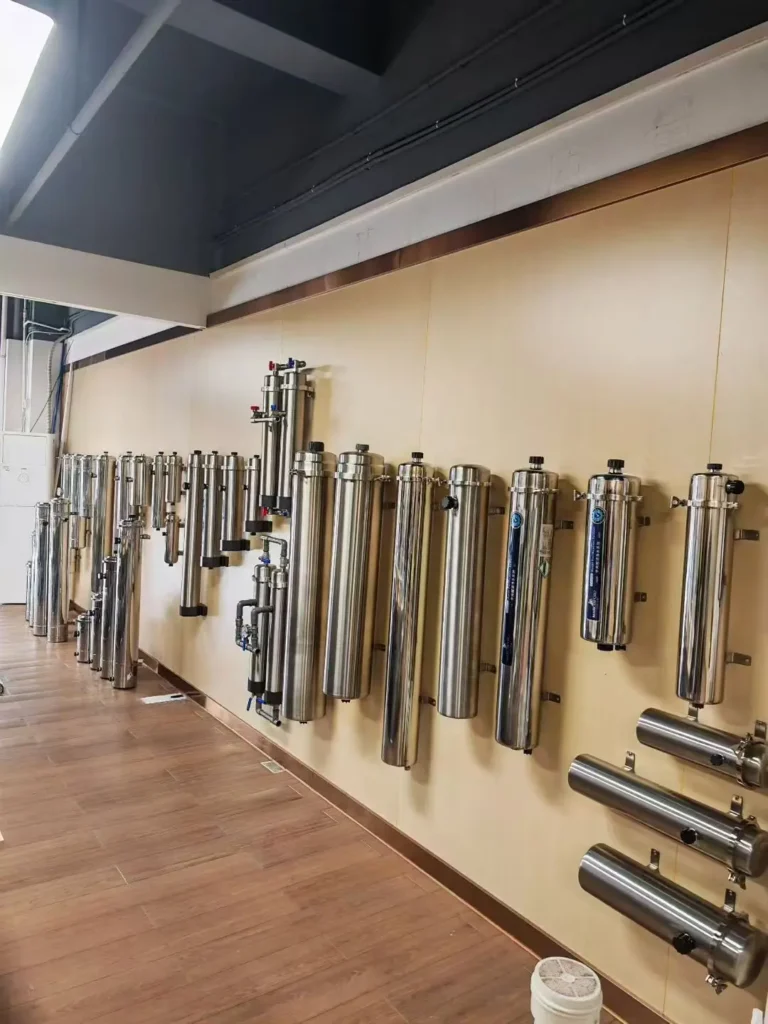

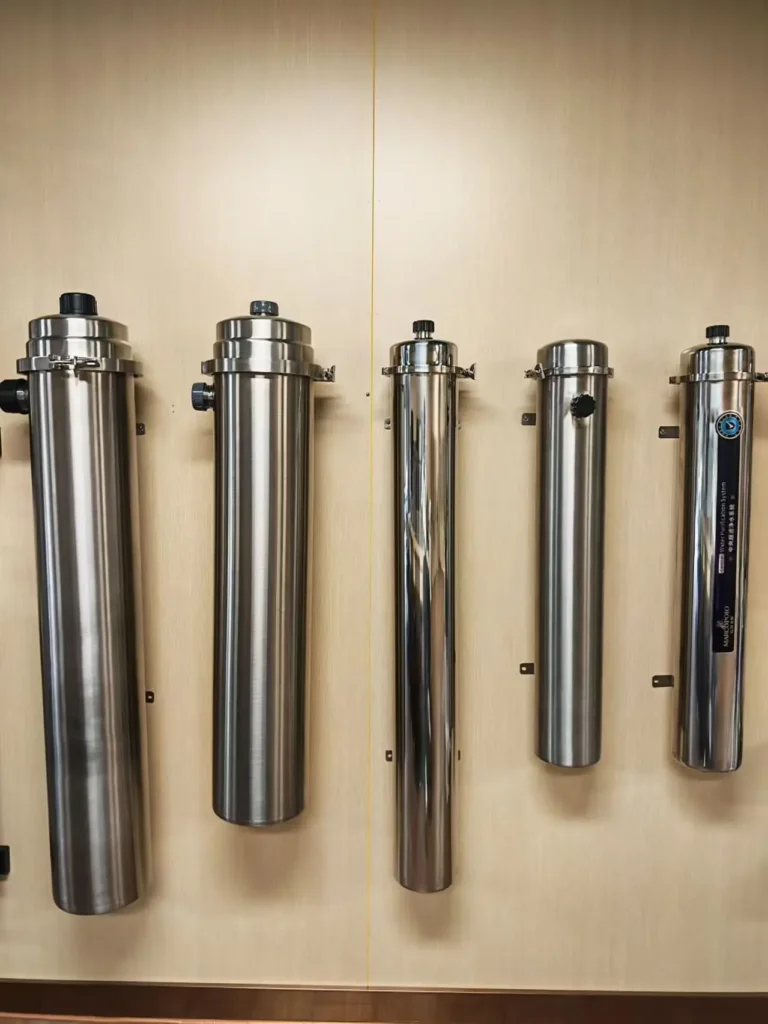

More Model of Whole House Ultrafiltration Water Filter

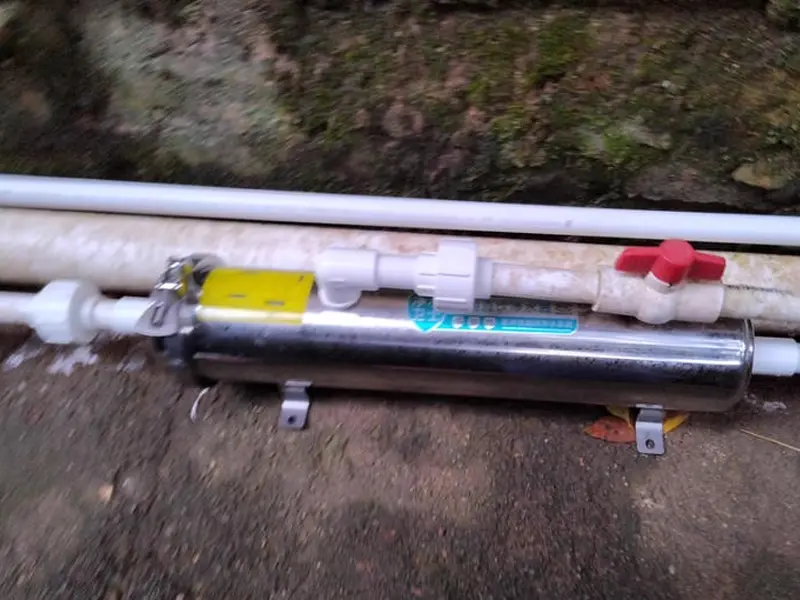

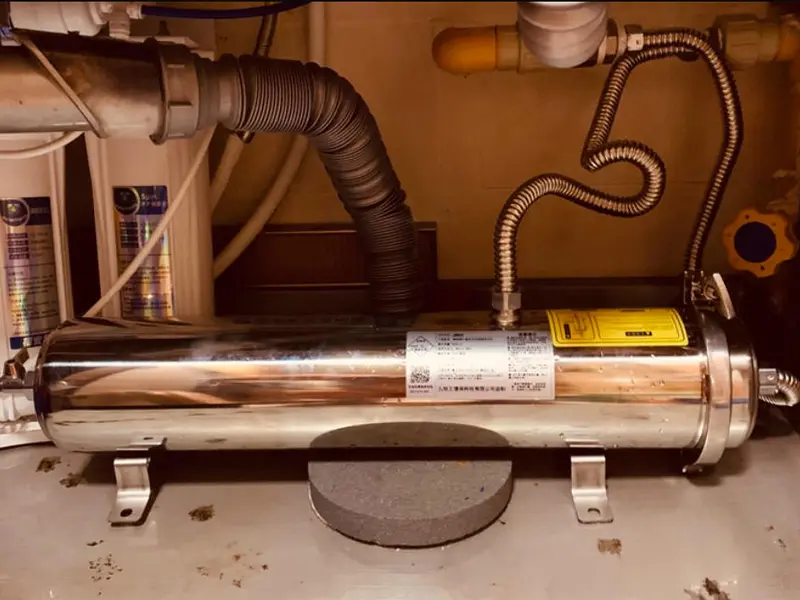

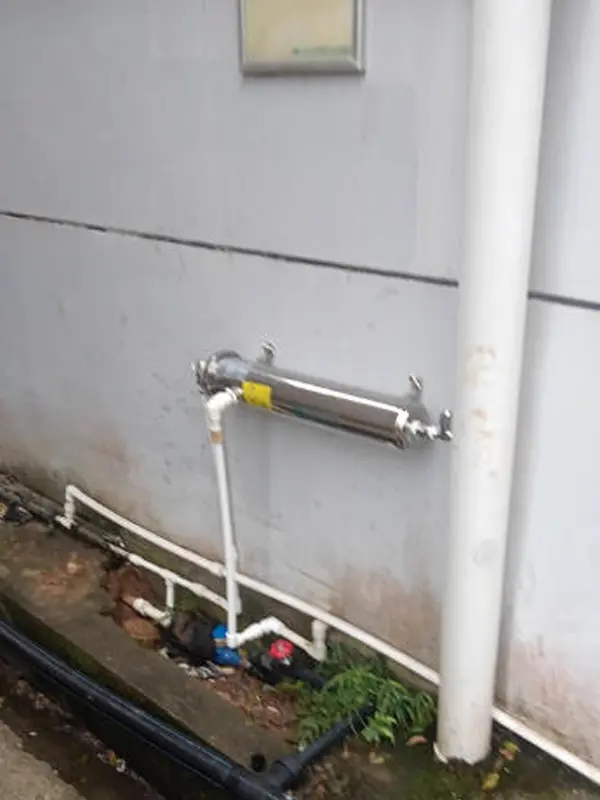

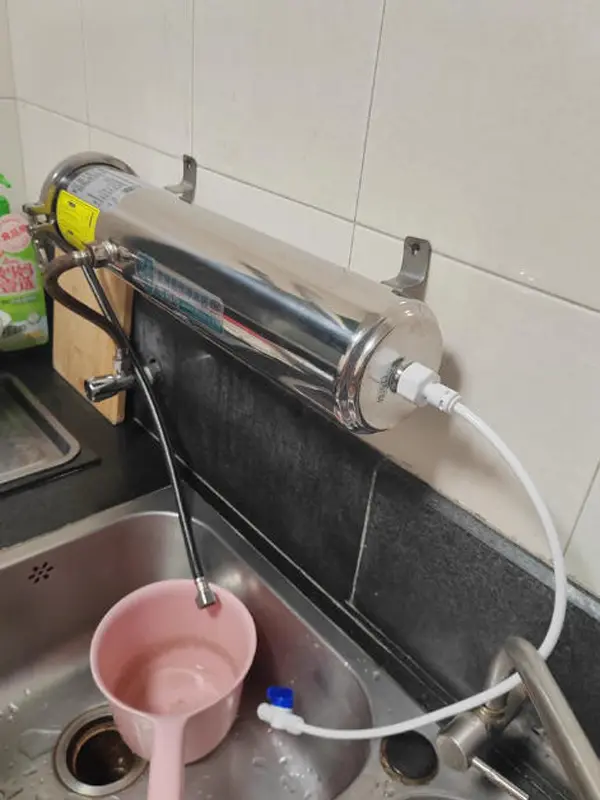

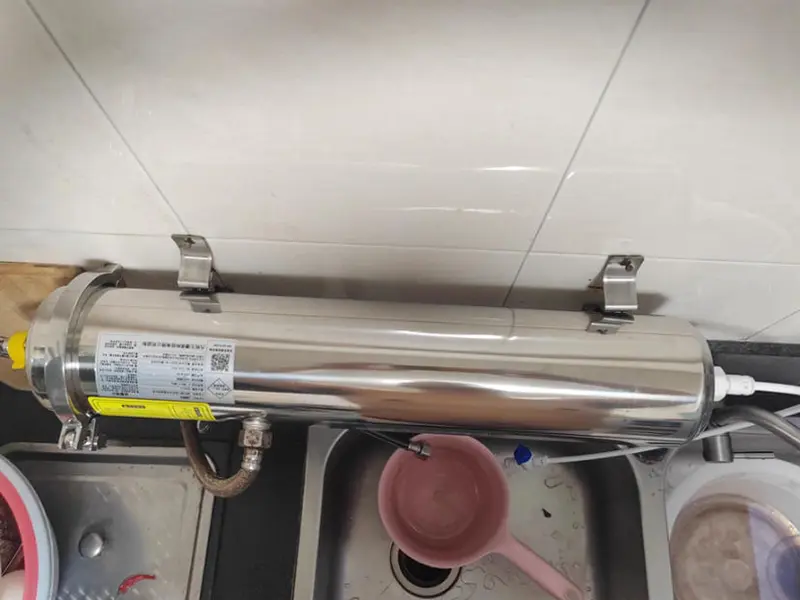

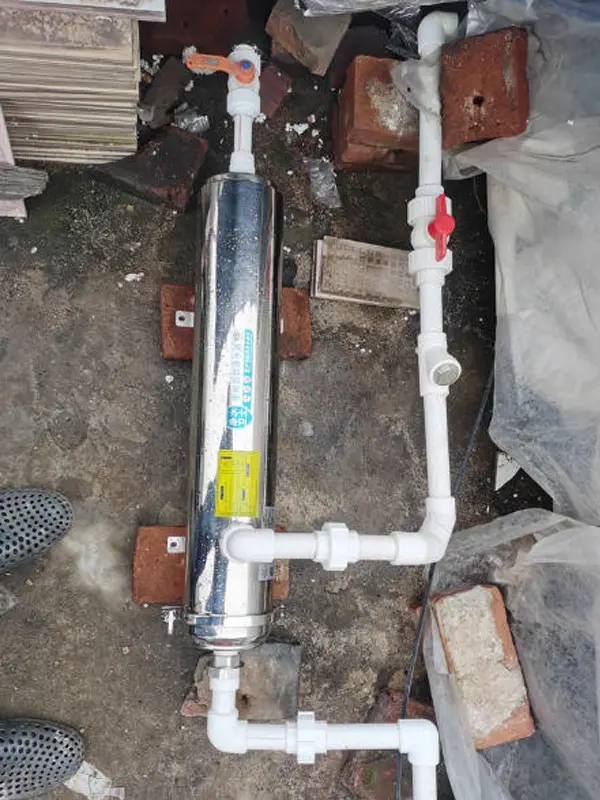

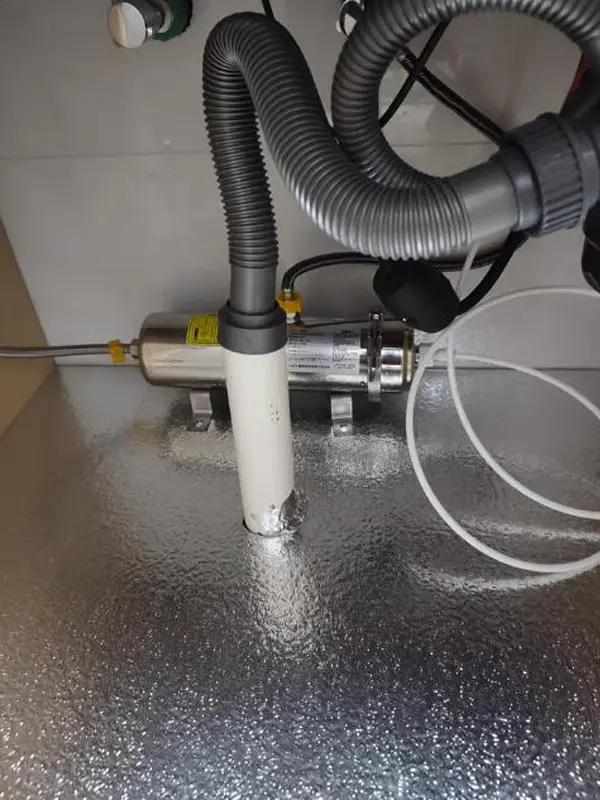

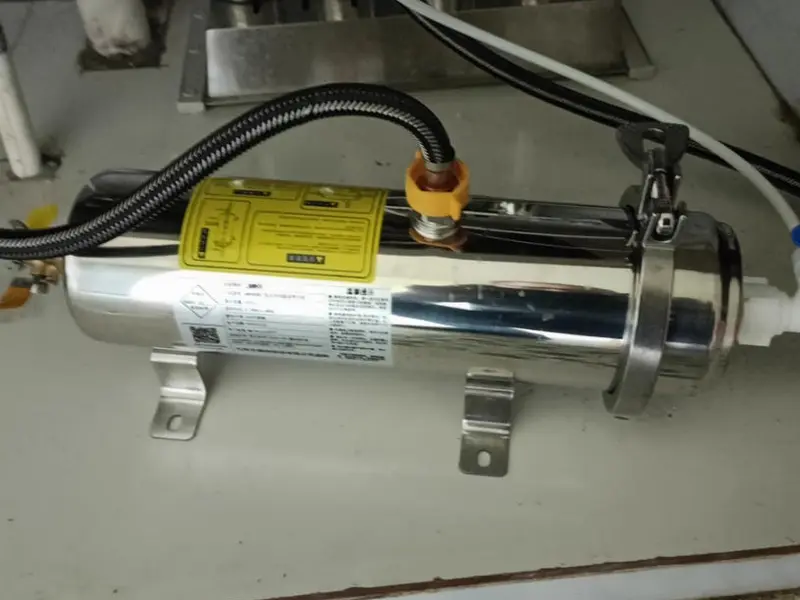

Whole House Ultrafiltration Water Filter Application
whole house ultrafiltration water filter is widely used
FAQ
Are your water treatment systems all standard, or do they need to be customized?
For small capacities from 250 LPH to 3000 LPH, most systems are standard, but we adjust the production according to the customer’s local voltage and frequency. For larger capacities, we design the system based on the raw water quality.
For some larger systems, the shipping cost is high if they are fully assembled due to the large volume. Can you ship all components unassembled so we can assemble them ourselves after receiving them?
Yes, that’s possible. Some of our customers already operate this way. It can significantly reduce your sea freight cost, and in some countries it can even help lower import duties.
Can you provide installation services for your systems?
For small systems, installation is very simple, and we provide detailed documentation so customers can handle the installation themselves. For large systems, we can provide on-site installation services, but the customer needs to cover the travel and accommodation expenses for the installation personnel.
Do you have any additional services?
Yes, we provide a free goods inspection service. If your supplier is within 200 km of our company (Chengdu), even the transportation cost will be covered by us. If the distance is more than 200 km, only the transportation and hotel costs will be borne by you.
Can all your products accept OEM service?
Yes, for each item, there will be a minimum order quantity, and then we can produce an OEM order for you.
Can you source some other related products for us?
Yes, whether they are water- or wastewater-related products, we can source them for you. We have been working in the water and wastewater fields for more than 10 years.
