LED UV Water Sterilizer

LED UV Water Sterilizer Supplier

LED UV Water Sterilizer application technology research provides professional ODM and OEM solutions for a wide range of water disinfection applications. Our flow-through LED UV water sterilizers comply with international disinfection standards and relevant certifications, including RoHS, UL, and EPA requirements.

Deep UV LED technology utilizes ultraviolet light-emitting diodes operating at wavelengths between 200 nm and 280 nm. The emitted UV-C light penetrates the outer structures of viruses, fungi, spores, and other microorganisms, disrupting the DNA or RNA base pairs and damaging their nucleic acid replication capabilities or protein structures. As a result, microorganisms are rapidly inactivated, providing an efficient, chemical-free, and environmentally friendly disinfection solution for water treatment systems.

Features of LED UV Water Sterilizer

Compact Size
Deep UV LEDs are only about 1% the size of traditional mercury lamps, enabling compact designs, easier integration, and expanded application possibilities.
Narrow Wavelength Output
Single-peak wavelength emission concentrates energy within the effective germicidal spectrum, eliminating the need for optical filters and improving disinfection efficiency.
High Irradiance
Deep UV LEDs deliver extremely high surface brightness, providing effective UV output per unit area that can be hundreds to thousands of times greater than conventional mercury lamps within the germicidal wavelength range.
Flexible Beam Angles
Available with beam angles ranging from 7° to 180°, allowing customized optical designs for specific application requirements.
Simplified Electronics
No high-voltage ballast is required, reducing circuit complexity, system size, and overall manufacturing costs.
Instant On/Off Operation
Immediate startup with no warm-up time. Adjustable light intensity supports optimized performance and extended service life.
Wide Operating Conditions
Suitable for a variety of environments and capable of stable operation even at low temperatures.
Customizable Wavelengths
Output wavelengths can be tailored to meet the requirements of different disinfection, purification, and industrial applications.
Environmentally Friendly
Mercury-free throughout the manufacturing process and product lifecycle, with no toxic waste disposal concerns and full compliance with modern environmental standards.

Clear Environment Provide LED UV Water Sterilizer

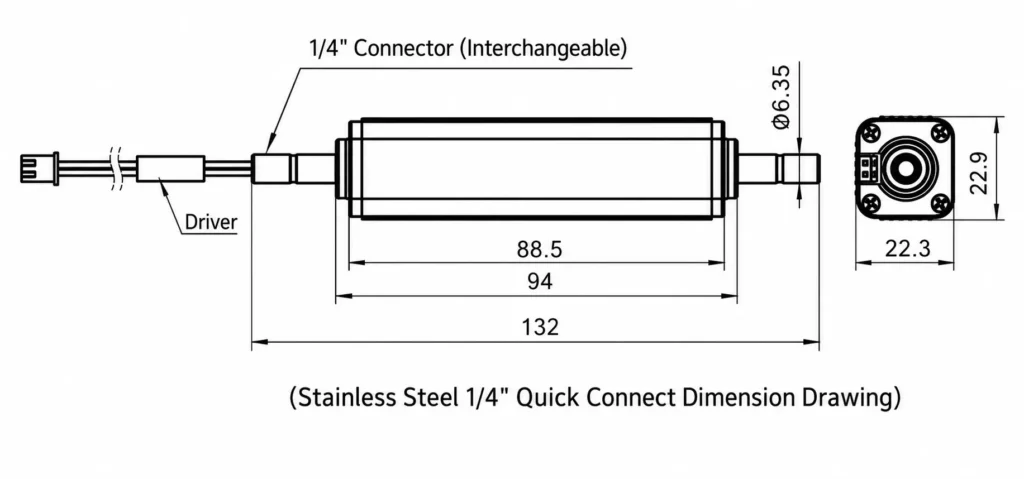

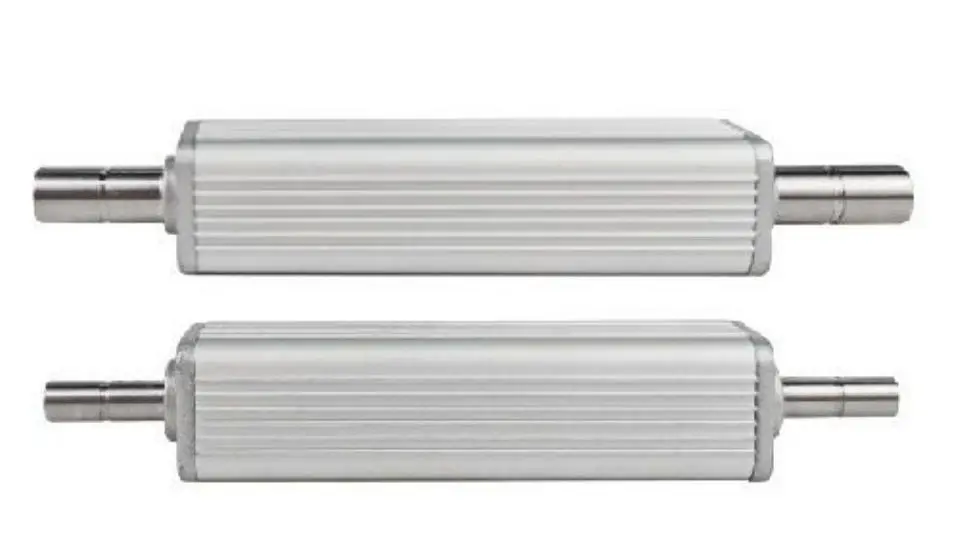

UV Drinking Water Sterilizer (F118-MS)

Technical Parameters of UV Sterilizer for Drinking Water

Operating Voltage	Power	Flow Rate	Service Life	Sterilization Rate
DC 12–24V	2–4W / 4–8W	3 LPM / 5 LPM	>3000 h	>99.99%

Note: The UV sterilization for water standard operating voltage is DC 12–24V. Custom operating voltage options are available upon request.

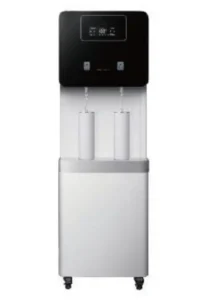

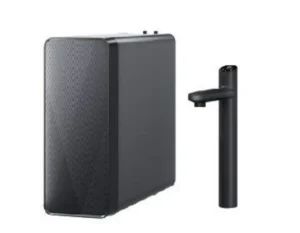

Application of UV Drinking Water Sterilizer

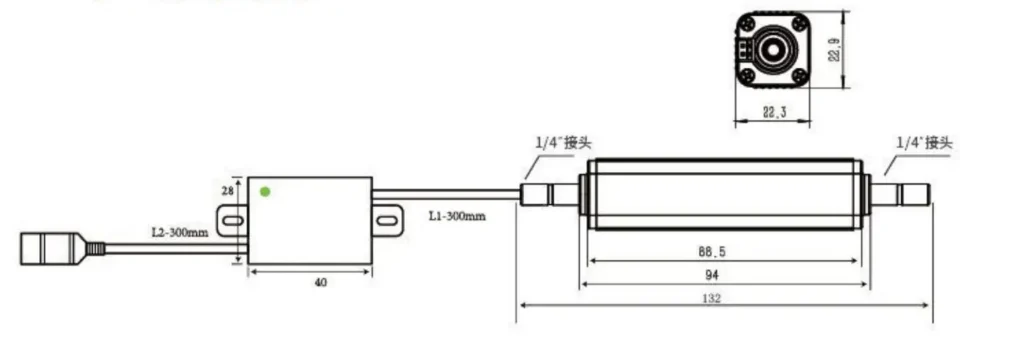

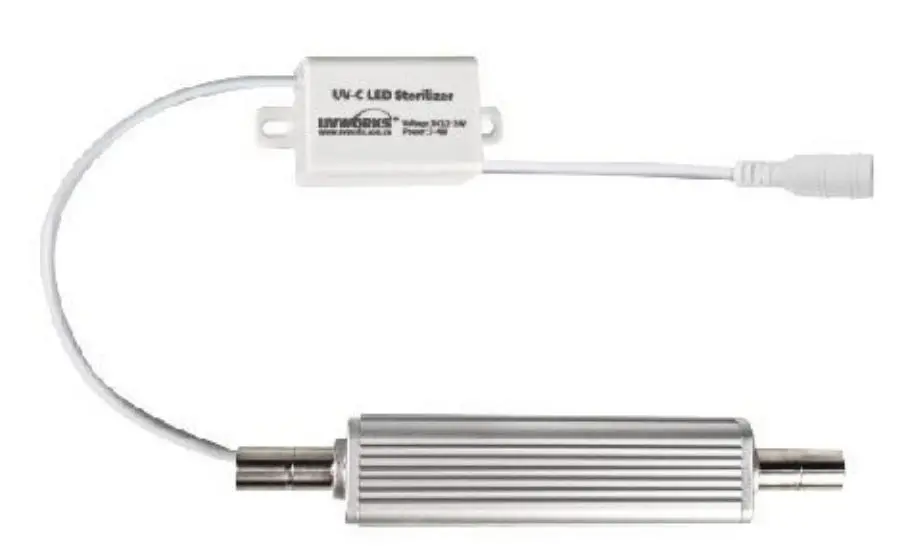

UV LED Water Sterilization (F118-MS-S)

Technical Parameters of UV Sterilizers for Water

Operating Voltage	Power	Flow Rate	Service Life	Sterilization Rate
DC 12–24V	2–4W / 4–8W	3 LPM / 5 LPM	>3000 h	>99.99%

Note: The water sterilizer uv standard operating voltage is DC 12–24V. Custom operating voltage options are available upon request.

Application of UV Sterilizer for Drinking Water

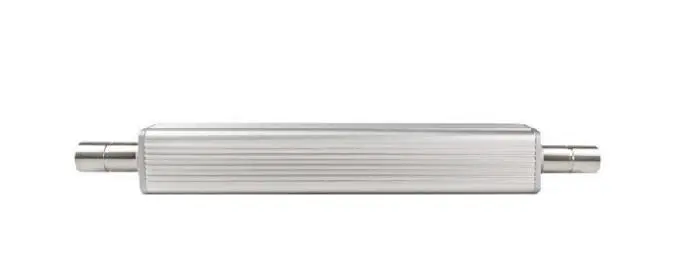

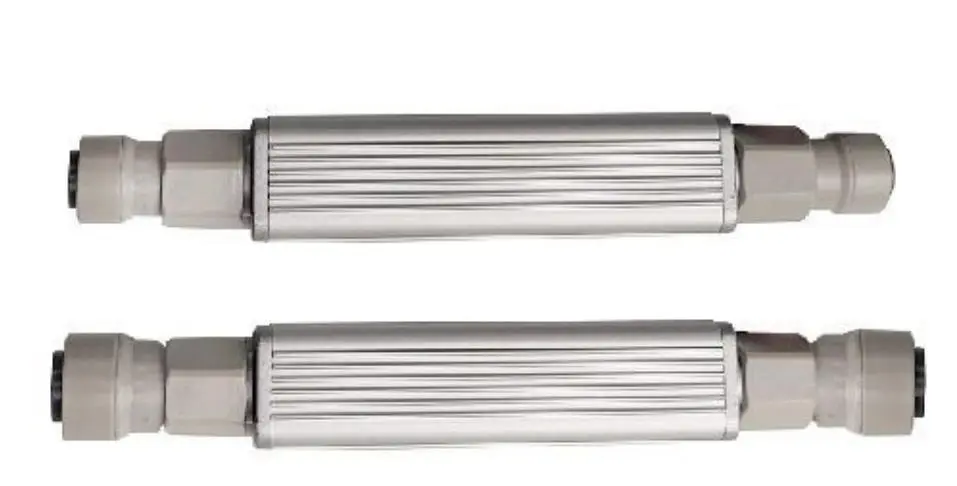

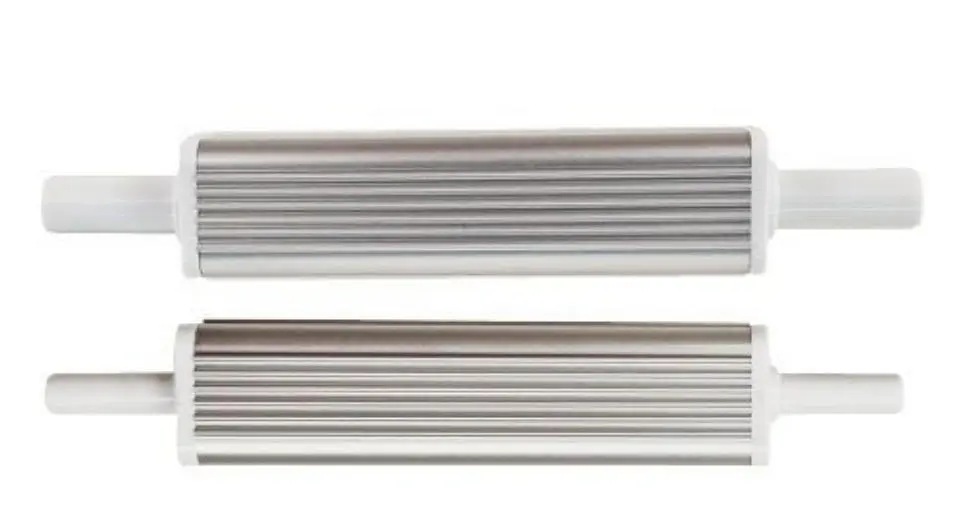

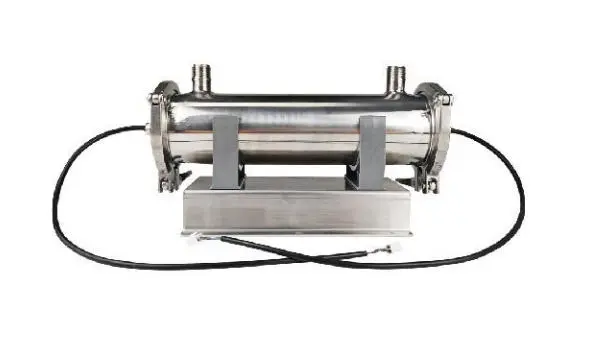

More model of LED UV Water Sterilizer

Advantages of LED UV Water Sterilizer compared to traditional ones

Comparison Item	Chlorination	Heat Treatment	Ozone	UV LED
By-products	Yes	No	Yes	No
Disinfection Speed	Slow	Slow	Fast	Fast (Seconds)
Typical Applications	General Applications	Industrial, Residential	Industrial	Drinking Water, Secondary Water Supply, Aquaculture, Industrial Water, Swimming Pools
Operating Cost	Low	High	High	Low
Safety	Moderate	Moderate	Low	High
Effectiveness Affected by Turbidity	Low	Low	Low	High
Residual Disinfection in Pipelines	Strong	None	None	None
