1000LPH RO System Features
High efficiency and low operating cost
The RO system is designed with a product water recovery rate ≥75%. It does not require chemical regeneration and produces no chemical waste discharge, reducing operating costs by 50%. Compared with traditional water treatment equipment, this ro system keeps long-term operation more stable and economical.
User-friendly design and easy installation
The industrial ro system adopts a simple and foolproof installation method—just connect the inlet/outlet pipes and power supply as indicated, and the machine can start producing water immediately.
Flexible configuration and strong adaptability
Depending on water usage, you can select single-stage or double-stage ro system configurations, combined with suitable pre-treatment and post-treatment units. This ensures stable product water quality while reducing overall costs.
Fully automatic operation—time-saving and worry-free
The ro system features a fully automatic control mode: it stops when the tank is full and starts automatically when water is lacking, saving time and providing worry-free operation.
Clear and intuitive operation interface
Equipped with a digital display panel, the ro system shows operating status clearly. Settings are simple and intuitive, allowing even first-time users to operate the system easily.
Compact structure and small footprint
The equipment is reasonably designed, compact, lightweight, and does not require standby units or regeneration wastewater treatment facilities, further enhancing the practicality of the ro system.
If you want stainless steel RO system, also no prolelm.
DETAILS
MODEL

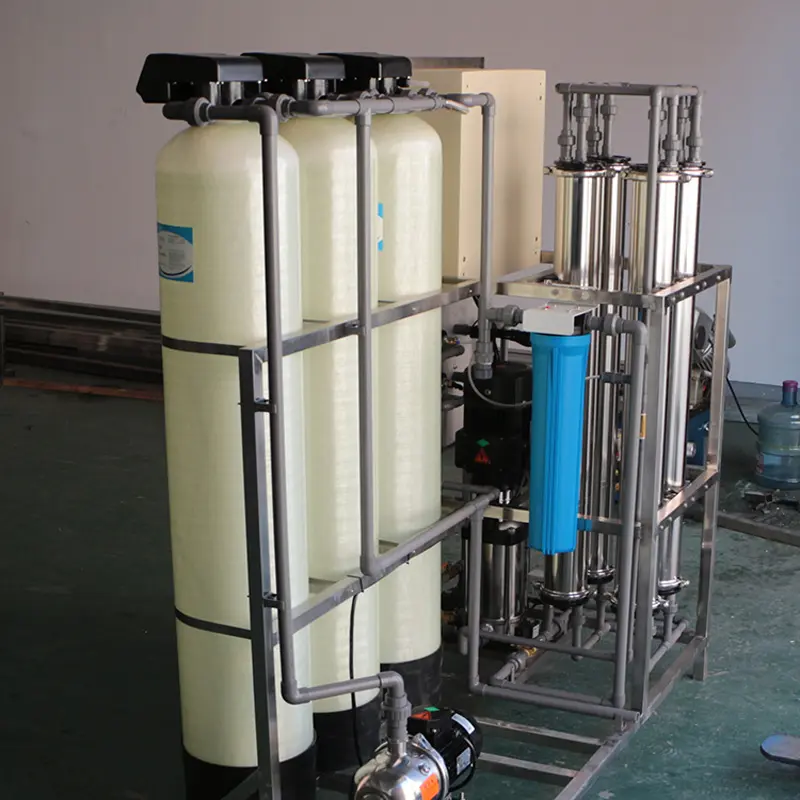

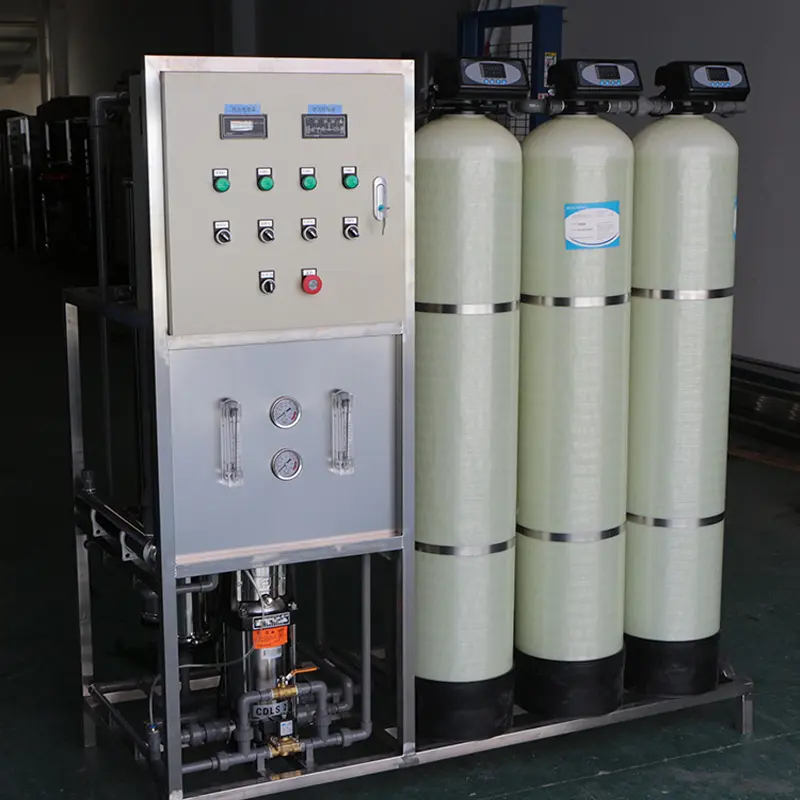

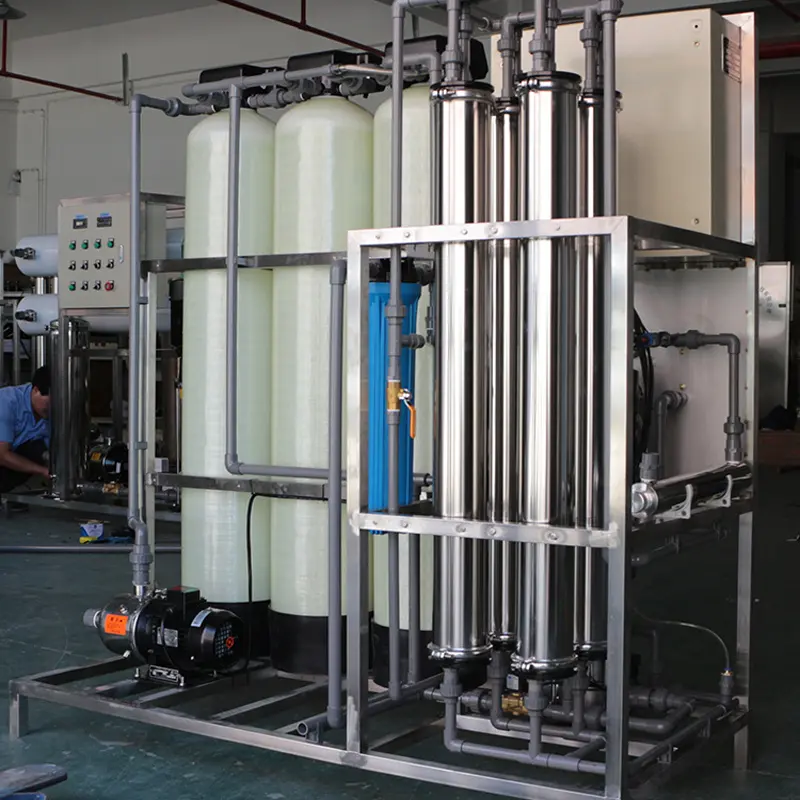

1000LPH Water RO System
| Part | Function |
|---|---|
| Raw Water Booster Pump | Provides sufficient pressure to meet the system’s subsequent water supply requirements. |
| Quartz Sand Filter | Removes sand, rust, colloids, suspended solids, and other particles larger than 20 μm in the raw water. It features automatic periodic cleaning and easy operation. |
| Activated Carbon Filter | Adsorbs residual chlorine, odors, and color from the water. It automatically backwashes periodically and is easy to operate. |
| Resin Softening Filter | Adsorbs calcium and magnesium ions in the water to reduce hardness. |
| Precision (Cartridge) Filter | Removes fine particulate impurities not eliminated by the pre-treatment filters. |
| High-Pressure Pump | Provides the driving force for the reverse osmosis system. |
| Reverse Osmosis Membrane System | Reduces impurities in the water and improves purity. The desalination rate can reach over 98%, and most bacteria, viruses, colloids, and macromolecular organic substances are removed. |
| Flow Meter | Clearly displays the pure water flow rate and concentrate flow rate. It allows the operator to visually observe the permeate-to-concentrate ratio and adjust system conditions according to required production and recovery. |
| Pressure Gauge | Shows the pressure differential across the membrane system—an important indicator during real operation. |

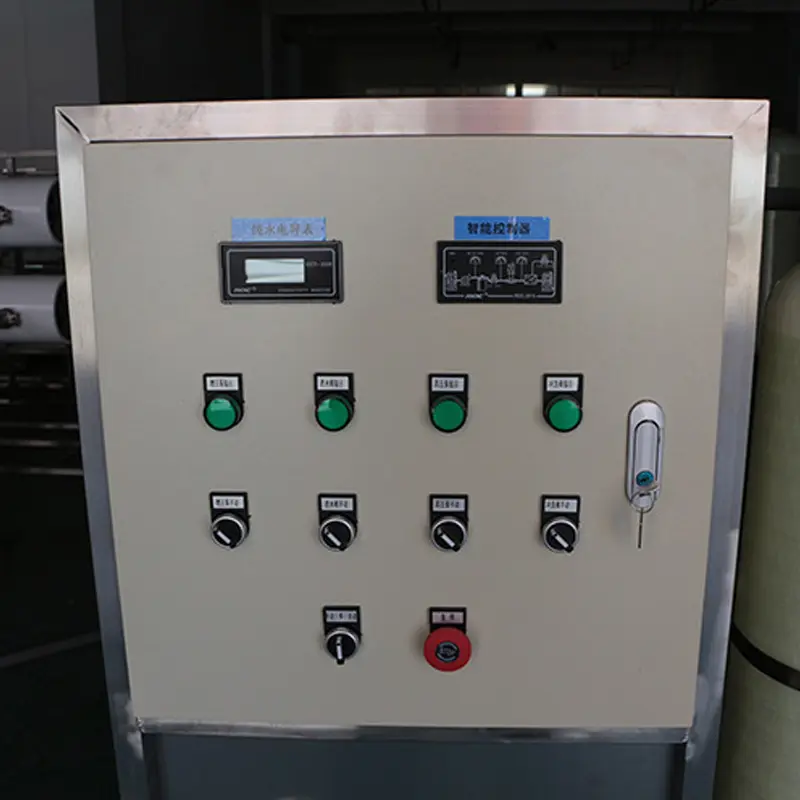

| Electrical Control Section | The control cabinet uses a 24V transformer, ensuring all control parts operate at a safe voltage. The design enables simple, user-friendly operation. |
| Control Valve Description | According to raw water quality and system operation conditions, the automatic flushing frequency and duration can be set, enabling fully automatic, user-friendly operation. |
| Conductivity Monitoring | The system monitors product water quality online and provides alarms when conductivity exceeds limits, ensuring the permeate water meets required standards. |
APPLICATION
This good ro system is widely used in households, schools, hospitals, factories, and other places that require large amounts of purified water. It not only provides safe drinking water but also meets the high water quality requirements of industrial production, such as in the electronics and pharmaceutical industries. This 1000LPH is also popular as RO system for well water.
FAQ
Are your water treatment systems all standard, or do they need to be customized?
For small capacities from 250 LPH to 3000 LPH, most systems are standard, but we adjust the production according to the customer’s local voltage and frequency. For larger capacities, we design the system based on the raw water quality.
For some larger systems, the shipping cost is high if they are fully assembled due to the large volume. Can you ship all components unassembled so we can assemble them ourselves after receiving them?
Yes, that’s possible. Some of our customers already operate this way. It can significantly reduce your sea freight cost, and in some countries it can even help lower import duties.
Can you provide installation services for your systems?
For small systems, installation is very simple, and we provide detailed documentation so customers can handle the installation themselves. For large systems, we can provide on-site installation services, but the customer needs to cover the travel and accommodation expenses for the installation personnel.
Do you have any additional services?
Yes, we provide a free goods inspection service. If your supplier is within 200 km of our company (Chengdu), even the transportation cost will be covered by us. If the distance is more than 200 km, only the transportation and hotel costs will be borne by you.
Can all your products accept OEM service?
Yes, for each item, there will be a minimum order quantity, and then we can produce an OEM order for you.
Can you source some other related products for us?
Yes, whether they are water- or wastewater-related products, we can source them for you. We have been working in the water and wastewater fields for more than 10 years.
