Mechanical Diaphragm Metering Pump | Up to 58 L/h

Mechanical diaphragm metering pump for controlled chemical dosing in reverse osmosis (RO), industrial water treatment, and wastewater treatment systems. Suitable for applications requiring adjustable chemical feed rates and stable dosing performance.

Main Performance Parameters

  • Maximum Flow Rate: 58 L/h
  • Maximum Discharge Pressure: 10 bar
  • Steady-State Accuracy: ±1%
  • Maximum Suction Lift: 1.5 m water column
  • Maximum Ambient Temperature: +40°C
  • Maximum Inlet Pressure: 1 bar

Typical Applications

  • Antiscalant dosing in RO and seawater desalination pretreatment
  • Chemical dosing in industrial water and wastewater treatment
  • Disinfection chemical dosing in swimming pool water treatment
  • Chemical dosing for pH adjustment and compatible UF pretreatment processes

*Flow rate and discharge pressure depend on the selected pump model and operati

Mechanical Diaphragm Metering Pump Features

Liquid End – Wetted Materials and Valve Design

  • Available liquid-end materials include PVC, PVDF, and SS316 for different chemical dosing applications.

  • Material selection depends on the chemical properties, concentration, temperature, and operating conditions.

  • The pump features a mechanically actuated diaphragm that separates the chemical liquid from the drive mechanism.

  • The check valve design helps maintain reliable suction and discharge during dosing operation.

Drive End – Mechanical Cam Drive

  • The motor-driven cam mechanism actuates the diaphragm to deliver controlled quantities of chemical liquid.

  • The mechanical drive structure is designed for stable operation and convenient maintenance.

  • Sliding bearings support the drive mechanism to help reduce vibration and operating noise.

Control Options and Power Supply

  • Available power supply configurations include 380 V three-phase, 200 V single-phase, and 220 V three-phase, with 50/60 Hz options, depending on the motor configuration.

  • The three-phase motor can be operated through a compatible external ON/OFF controller.

  • ON/OFF control starts or stops the pump and can be used for intermittent chemical dosing. It s

Mechanical Diaphragm Metering Pump Dimensions

Overall Dimensions and Mounting Drawing

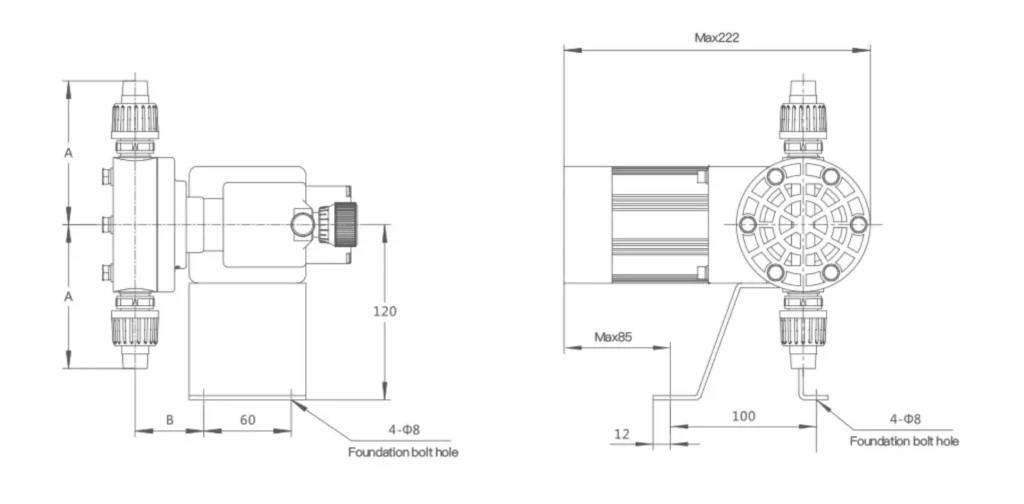

The following dimensional drawing shows the overall size, mounting arrangement, and foundation bolt hole positions of the mechanical diaphragm metering pump.

Installation dimensions may vary depending on the pump model, liquid-end material, and connection configuration. Please verify the dimensions of the selected model before installation or replacement.

Installation Dimensions by Pump Model

The table below provides installation dimensions for different mechanical diaphragm metering pump configurations, including models 001–002 and 003–060.

Dimensions A and B depend on the selected pump head material and connection type. For replacement applications, please provide the existing pump model or installation drawing so that mounting dimensions and connection compatibility can be checked before ordering.

001-002003-060
Pump head materialInterfaceA(mm)B(mm)Pump head materialInterfaceA(mm)B(mm)
R83.52PVCR12547
PVDFR83.52Q125
R99
PVDFP9447
R99
316P9948

Mechanical Diaphragm Metering Pump Specifications

Flow Rate and Pressure by Model

This mechanical diaphragm metering pump series covers flow rates from 1.1 to 58 L/h, with maximum discharge pressures ranging from 2 to 10 bar depending on the model.

Models 001–010 are rated for pressures up to 10 bar, while Model 060 provides a maximum flow rate of 58 L/h at 2 bar.

Different models are available to meet the chemical dosing requirements of RO systems, industrial water treatment, and wastewater treatment applications.

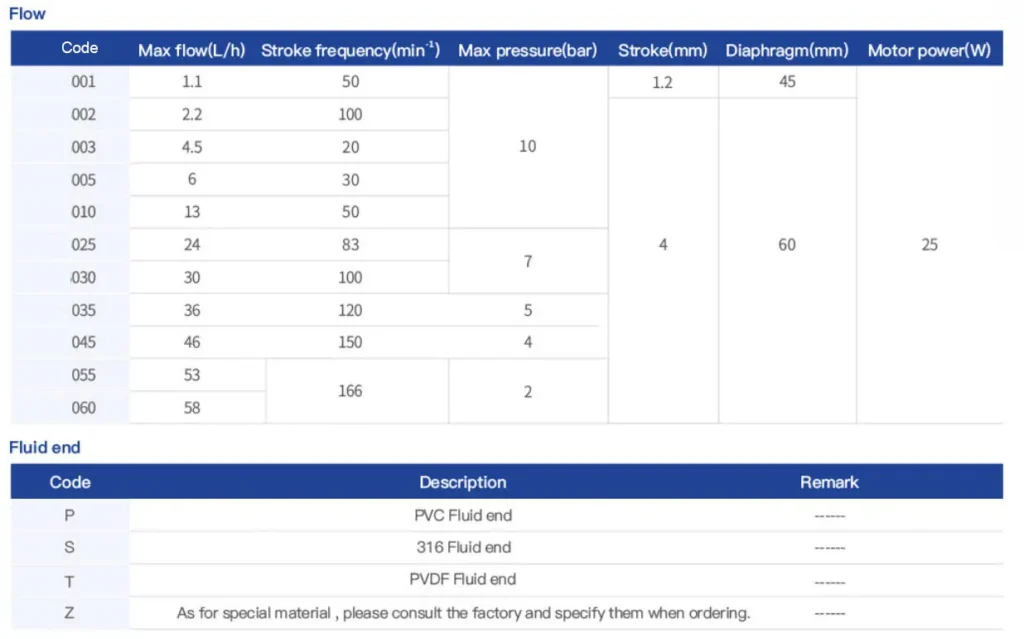

metering pump model-1

Liquid-End Materials and Connection Options

Available liquid-end materials include PVC, PVDF, and SS316. Different inlet and outlet connection configurations are offered depending on the pump model and liquid-end material.

Connection options include threaded connections, hose connections, and selected rigid-pipe connections.

For chemical dosing applications, please confirm the chemical compatibility of all wetted components and the required connection dimensions before ordering.

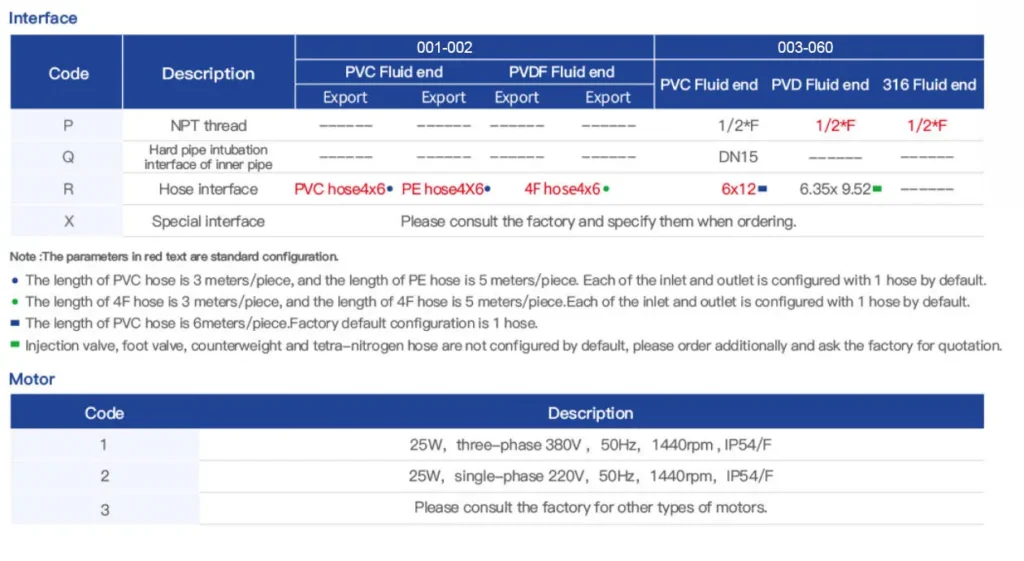

metering pump model-2

Accessories and Supply Scope

Hose specifications and supplied lengths vary by pump configuration. Injection valves, foot valves, counterweights, and certain special tubing options are not included as standard accessories.

Please confirm the required connection type, tubing size, and accessory list when requesting a quotation.

Mechanical Diaphragm Metering Pump Applications

Chemical Dosing in Water Treatment Systems

Mechanical diaphragm metering pumps are used for controlled chemical injection in industrial water treatment and wastewater treatment systems.

Typical applications include antiscalant dosing in reverse osmosis (RO) pretreatment, acid and alkali dosing for pH adjustment, and chemical dosing in cooling water and wastewater treatment processes.

The installation photos below illustrate motor-driven diaphragm metering pumps integrated into chemical dosing assemblies, including multiple-pump arrangements with individual inlet and discharge piping.

Pump selection should be based on the required dosing capacity, discharge pressure, chemical compatibility, and operating conditions.

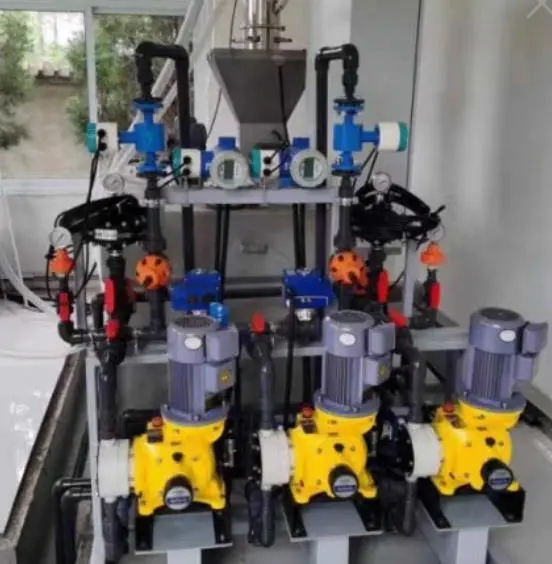

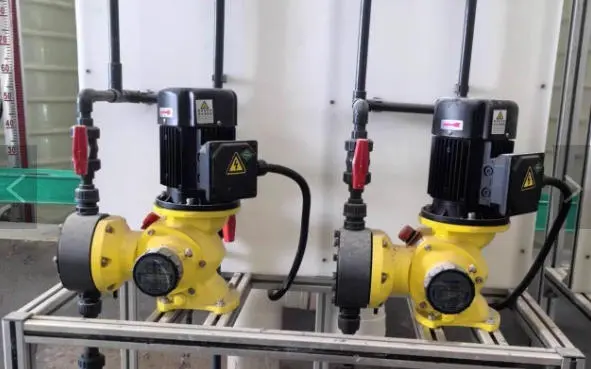

Multiple mechanical diaphragm metering pumps installed in a chemical dosing system

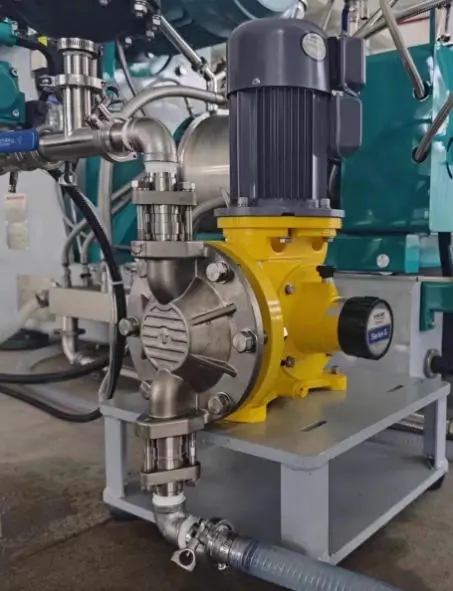

Motor-driven diaphragm metering pumps with chemical dosing pipe connections

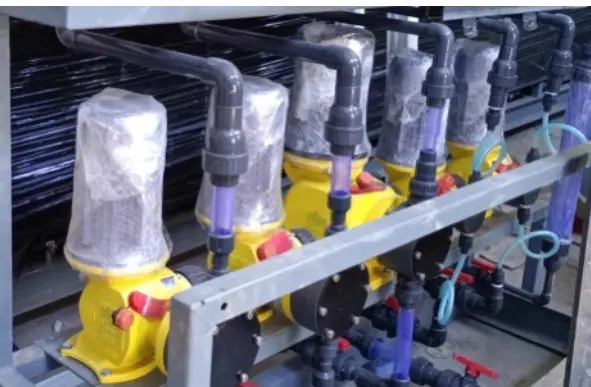

Mechanical diaphragm metering pump installed in an industrial chemical dosing assembly

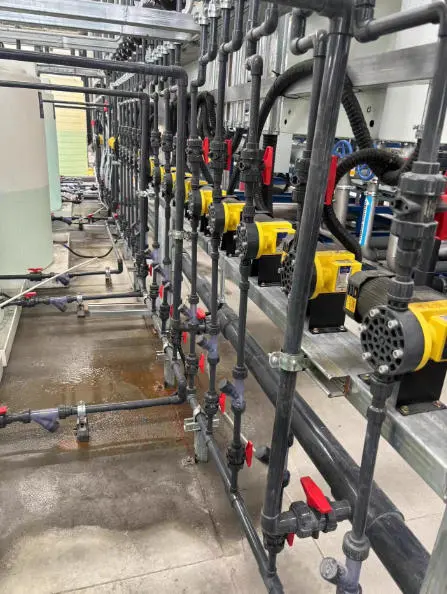

Industrial water treatment chemical dosing pumps with PVC piping

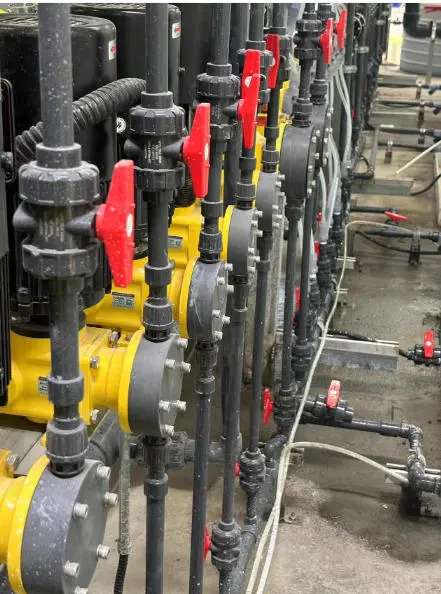

Multiple mechanical diaphragm metering pumps with PVC piping and isolation valves 复制
Industrial chemical dosing system with multiple motor-driven diaphragm metering pumps

FAQ

Are your mechanical diaphragm metering pumps manufactured in China?

Yes. The mechanical diaphragm metering pumps featured on this page are sourced from manufacturers in China. Clear Environment works with water treatment engineering companies, distributors, and system integrators to coordinate product sourcing, technical specifications, and order fulfillment.

  • A mechanical diaphragm metering pump uses an electric motor and mechanical drive mechanism to actuate the diaphragm, while an electromagnetic dosing pump uses a solenoid.

    Mechanical diaphragm pumps are commonly selected for motor-driven chemical dosing applications, while electromagnetic pumps are often used for lower-flow applications requiring electronic control options.

    Selection should be based on the required dosing capacity, discharge pressure, chemical properties, and control requirements rather than the drive type alone.

No. The maximum flow rate and maximum discharge pressure depend on the selected model.

Model 060 provides a maximum flow rate of 58 L/h at a rated maximum pressure of 2 bar. Models 001–010 are rated for pressures up to 10 bar, with flow capacities ranging from 1.1 to 13 L/h.

Please refer to the model performance table when selecting a pump for your operating conditions.

  1. Available liquid-end materials include PVC, PVDF, and SS316, with special material configurations subject to confirmation.

    The appropriate material depends on the chemical name, concentration, temperature, and operating conditions. Chemical compatibility should be checked for all wetted components before ordering.

  • The listed standard motor configurations include 25 W, 380 V three-phase, 50 Hz and 25 W, 220 V single-phase, 50 Hz. Both are specified at 1440 rpm, with IP54 protection and Class F insulation.

    Other voltage and frequency requirements, including 60 Hz applications, should be confirmed before ordering.

Please provide the required dosing flow (L/h), discharge pressure (bar), chemical name and concentration, power supply, pump head material, and inlet/outlet connection requirements.

For replacement applications, the existing pump model, nameplate photo, and installation dimensions are also helpful.

Clear Environment can assist with technical specification confirmation, suitable model sourcing, and quotation.

Looking for an Electromagnetic Dosing Pump?

For lower-flow chemical dosing applications requiring manual, pulse signal, or 4–20 mA control options, you can also explore our Electromagnetic Dosing Pump.

Compare the flow rate, discharge pressure, and control requirements to select a suitable pump for your water treatment system.
