Horizontal Multistage RO Booster Pump | CHL Series

The CHL Horizontal Multistage RO Booster Pump is designed for pressure boosting and clean water transfer in reverse osmosis feed water systems, pretreatment equipment, and industrial water treatment applications. Its compact horizontal configuration makes it suitable for installations with limited vertical space.

Key Features

  • Compact horizontal design: Axial suction and radial discharge allow convenient installation and maintenance.
  • Multistage pressure boosting: Multiple impeller stages provide different flow and head options for RO feed water applications.
  • Stainless steel construction: Stainless steel wetted components are available, with material specifications depending on the selected model.
  • Stable operation: Designed for clean, low-viscosity liquids under suitable operating conditions.
  • Flexible model selection: Different CHL configurations are available to meet specific flow rate, head, and installation requirements.

Typical Applications: RO feed water supply, reverse osmosis pretreatment, industrial filtration systems, and clean water pressure boosting.

CHL Horizontal Multistage Pump Applications

The CHL horizontal multistage booster pump is suitable for clean water transfer and pressure boosting in industrial water treatment systems. Its compact horizontal design makes it particularly useful for RO feed water supply and pretreatment applications.

Typical Applications:

  • RO Feed Water Supply: Provides feed water pressure for reverse osmosis systems within the pump’s rated operating range.

  • RO Pretreatment Systems: Supports water transfer and pressure boosting in filtration and pretreatment processes.

  • Industrial Water Treatment: Used in water purification equipment and clean process water supply systems.

  • Cooling Water Systems: Suitable for clean cooling water circulation and transfer under appropriate operating conditions.

  • Industrial Water Supply: Provides pressure boosting for industrial water distribution and equipment feed lines.

CHL Horizontal Multistage Pump Operating Conditions

  • Liquid Temperature: Standard version: -15°C to +70°C; hot-water version: +70°C to +110°C.

  • Flow Range: 0.5–28 m³/h.

  • Maximum Pressure: 10 bar.

  • Liquid pH Range: 4–9, subject to material and seal compatibility.

  • Suitable Liquids: Clean, low-viscosity, non-flammable and non-explosive liquids without abrasive particles or fibers.

CHL Pump Installation and Selection Notes

  • Non-Self-Priming Design: The CHL horizontal multistage pump is non-self-priming. Ensure that the pump and suction line are properly filled with liquid before starting.

  • Liquid Properties: Liquids with higher density or viscosity than water may require additional motor power and verification of pump suitability.

  • Material Compatibility: Select the appropriate wetted materials and mechanical seals according to the liquid composition, temperature and operating conditions.

  • RO System Selection: For reverse osmosis applications, confirm the required flow rate and total dynamic head against the pump performance curve. The pump must be capable of meeting the actual system operating point.

CHL Horizontal Multistage Pump Design & Construction

Watch the CHL horizontal multistage pump product video to see the pump components and construction details. The CHL series is used for clean water transfer and pressure boosting in RO feed water and industrial water treatment applications.

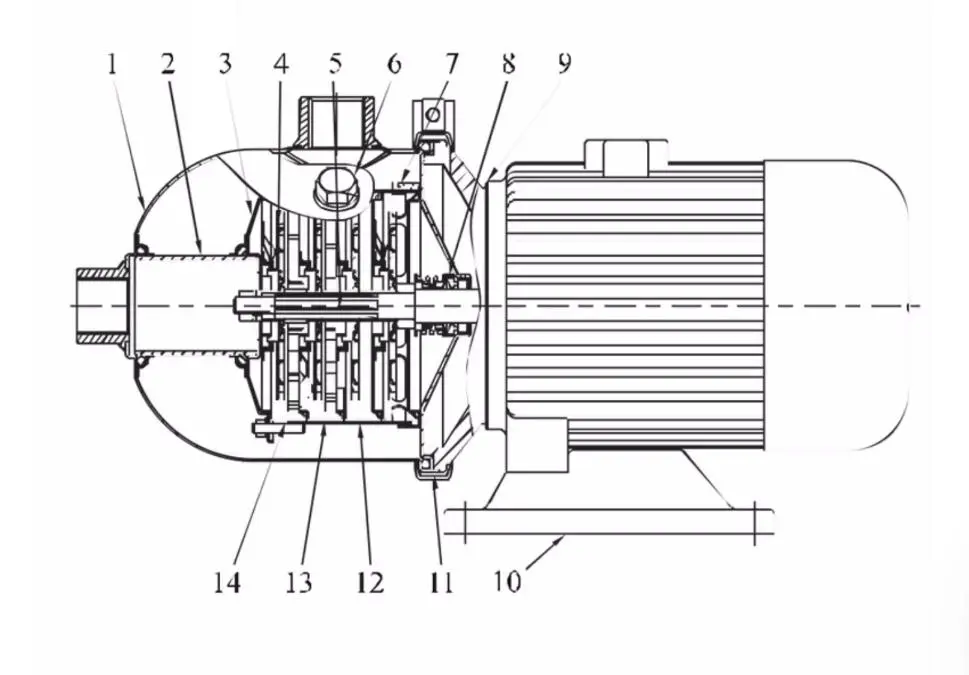

CHL 2 & CHL 4 Horizontal Multistage Pump Cross-Section

CHL 2 and CHL 4 horizontal multistage centrifugal pump cross-sectional diagram

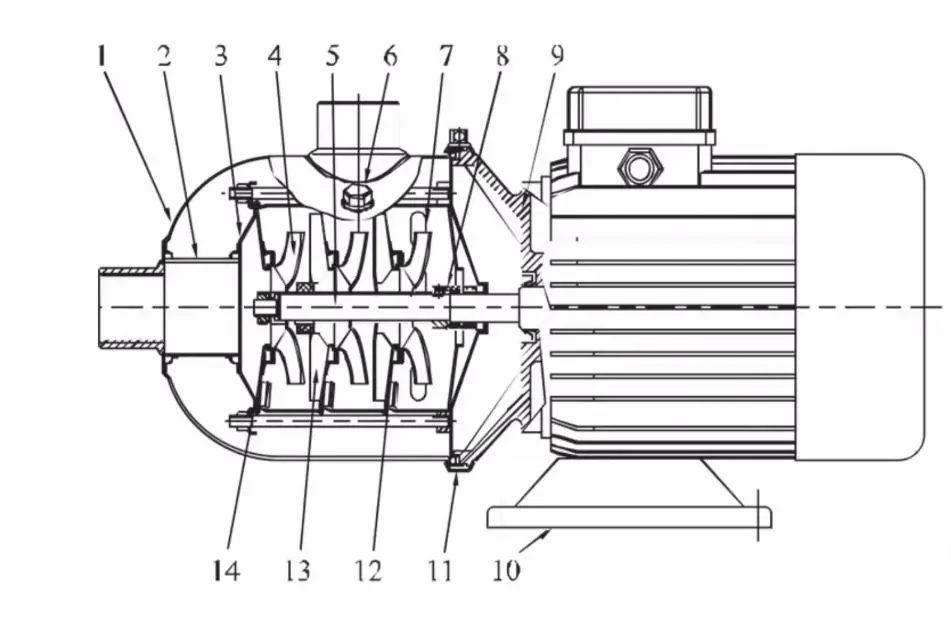

CHL 8, 12, 15 & 20 Horizontal Multistage Pump Cross-Section

CHL 8 12 15 and 20 horizontal multistage centrifugal pump cross-sectional diagram

CHL Horizontal Multistage Pump Models & Technical Specifications

ModelRated flow
(m3/h)
Rated head
(m)
Rated efficiency
%
Rated powerRated speed
rpm
Number of impeller stagesInlet diameter
CHL2-20215410.229002G1
222410.2929003G1
CHL2-40229410.3929004G1
CHL2-50236410.4829005G1
CHL2-60244410.5829006G1
CHL4-20415490.3329002G1 1/4
CHL4-30423.5490.5229003G1 1/4
CHL4-40431490.6929004G1 1/4
CHL8-1089570.3429001G2
CHL8-20818570.6929002G2
CHL8-3082757129003G2
CHL8-40835571.329004G2
CHL8-50845571.729005G2
CHL12-10129.5600.5229001G2
CHL12-201219.5601.129002G2
CHL12-301229.5601.629003G2
CHL12-401239.5602.129004G2
CHL12-501250602.729005G2
CHL15-10159660.5629001G2
CHL15-201521661.329002G2
CHL15-30153366229003G2
CHL20-102010640.8529001G2
CHL20-202022641.929002G2
CHL20-302034642.929003G2

Pump Selection Note

The specifications above provide reference operating data for different CHL horizontal multistage pump models. Actual pump selection should be based on the required flow rate, total dynamic head, pump performance curve, motor specifications and operating conditions.

For reverse osmosis applications, please provide the required feed water flow rate and operating pressure so that we can help identify a suitable CHL pump configuration.

CHL Horizontal Multistage Pump Applications

CHL horizontal multistage pump application examples for water treatment and industrial water supply

CHL Horizontal Multistage Pump FAQ

Can CHL horizontal multistage pumps be used as RO feed water pumps?

CHL horizontal multistage pumps can be used for feed water transfer and pressure boosting in reverse osmosis pretreatment and feed water systems. Suitability depends on the required flow rate, total dynamic head and operating pressure. The selected model must be checked against its pump performance curve.

Please provide the required flow rate (m³/h), total dynamic head or discharge pressure, feed water quality, liquid temperature, and power supply specifications. If the pump is intended for an RO system, please also provide the system capacity and operating conditions.

No. Standard CHL horizontal multistage pumps are non-self-priming. The pump casing and suction line must be properly filled with liquid before startup. Dry running should be avoided to prevent damage to the mechanical seal and other pump components.

Standard CHL pumps should not be assumed suitable for seawater service. Seawater contains high concentrations of chloride ions, which can cause corrosion of unsuitable stainless steel grades. Pump materials, mechanical seals and operating pressure must be evaluated for seawater applications. A dedicated seawater-compatible pump may be required.

CHL horizontal pumps offer a compact configuration suitable for clean water transfer and pressure boosting in RO feed water and pretreatment applications. CDL/CDLF vertical multistage pumps provide a different installation configuration and a wider range of available pressure options, depending on the model. Selection should be based on the required flow rate, head, available installation space and operating conditions.

For a broader overview of pump configurations and selection options, explore our RO Multistage Booster Pump solutions, including both horizontal and vertical multistage pumps.
