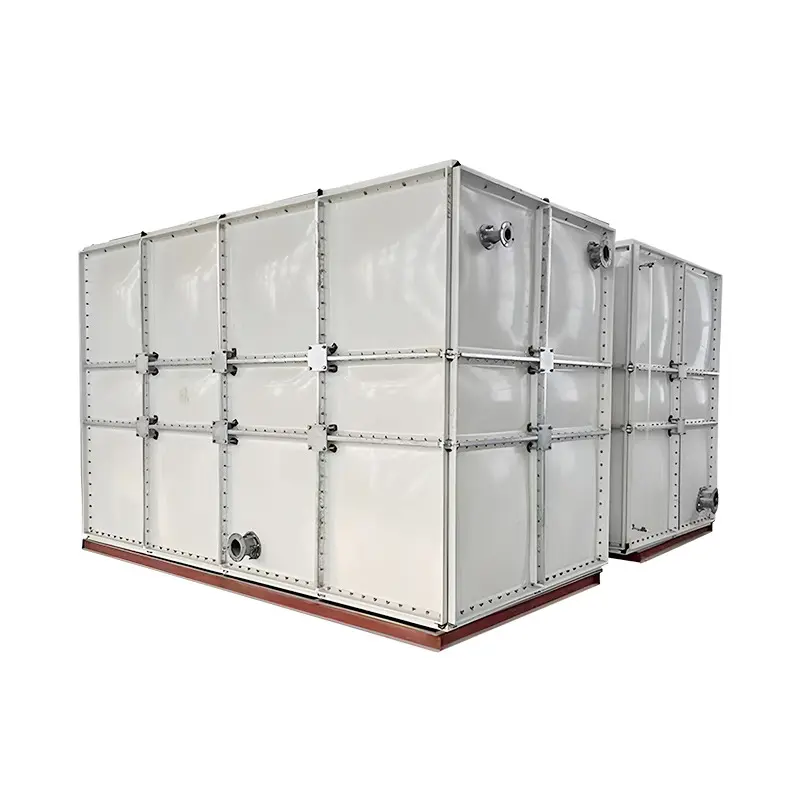

Our FRP panel water tank is made from food-grade resin and is fully customizable to meet various size requirements. Available panel sizes include 2000×1000mm, 2000×500mm, 1500×1000mm, 1500×500mm, 1000×1000mm, 1000×500mm, and 500×500mm, with panel thickness options ranging from 5mm to 20mm.
Product Details:
Molding Process: Each fiberglass panel is manufactured using high-temperature, high-pressure mechanical molding, ensuring precision and durability.
Excellent Sealing: The tank completely blocks sunlight, has superior sealing, prevents algae growth, maintains clean water quality, and avoids dust contamination.
Strong Load-Bearing Capacity: Panels feature a convex curvature in the middle, enhancing the tank’s structural strength and increasing overall water capacity.

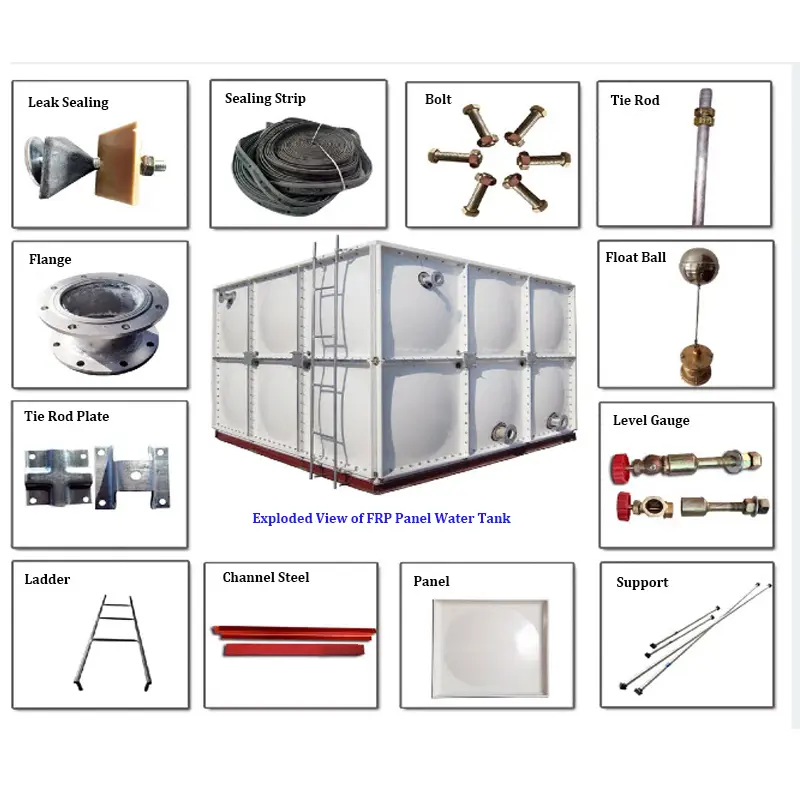

Tank Connections: Customized inlet, outlet, overflow, drain, and fire-fighting pipe connections or single-piece flanges can be installed according to user requirements. Vent holes are provided at the top for proper ventilation.
DETAILS
MODEL
| Water Tank Height(m) | Base Panel | Side Panel 1 | Side Panel 2 | Side Panel 3 | Side Panel 4 | Side Panel 5 | Cover Panel |
|---|---|---|---|---|---|---|---|
| 1.00 | 0.5x1-6 | 0.5-1-6 | 0.5x1-4 | ||||
| 1x1-7 | 1x1-6 | 1x1-4 | |||||
| 1.50 | 0.5x1-7 | 0.5x1-6 | 0.5x1-6 | 0.5x1-4 | |||
| 1x1-7 | 1x1-7 | 1x1-4 | |||||
| 2.00 | 0.5x1-8 | 0.5x1-7 | 0.5x1-6 | 0.5x1-4 | |||
| 1x1-8 | 1x1-8 | 1x1-6 | 1x1-4 | ||||
| 2.50 | 0.5x1-9 | 0.5x1-9 | 0.5x1-7 | 0.5x1-5 | 0.5x1-4 | ||
| 1x1-9 | 1x1-9 | 1x1-8 | 1x1-4 | ||||
| 3.00 | 0.5x1-10 | 0.5x1-10 | 0.5x1-7 | 0.5x1-6 | 0.5x1-4 | ||
| 1x1-11 | 1x1-11 | 1x1-8 | 1x1-6 | 1x1-4 | |||
| 3.50 | 0.5x1-11 | 0.5x1-11 | 0.5x1-9 | 0.5x1-7 | 0.5x1-4 | ||
| 1x1-12 | 1x1-12 | 1x1-11 | 1x1-8 | 1x1-4 | |||
| 4.00 | 0.5x1-12 | 0.5x1-12 | 0.5x1-9 | 0.5x1-8 | 0.5x1-6 | 0.5x1-4 | |
| 1x1-12 | 1x1-13 | 1x1-12 | 1x1-9 | 1x1-7 | 1x1-4 | ||
| 5.00 | 0.5x1-15 | 0.5x1-15 | 0.5x1-10 | 0.5x1-8 | 0.5x1-7 | 0.5x1-5 | 0.5x1-4 |
| 1x1-17 | 1x1-17 | 1x1-13 | 1x1-12 | 1x1-10 | 1x1-8 | 1x1-4 | |
| If the water tank is installed outdoors, use cover plates 1×1-7 and 0.5×1-6. | |||||||
If you want china frp panel water tank supplies, just send us inquiry.

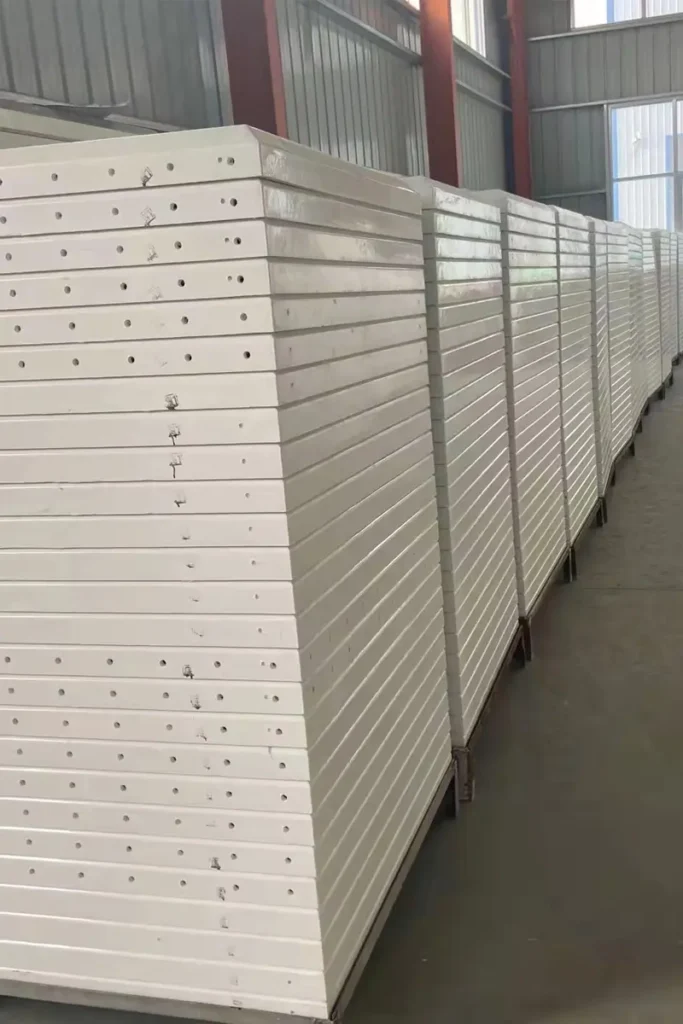

PACKING
APPLICATION

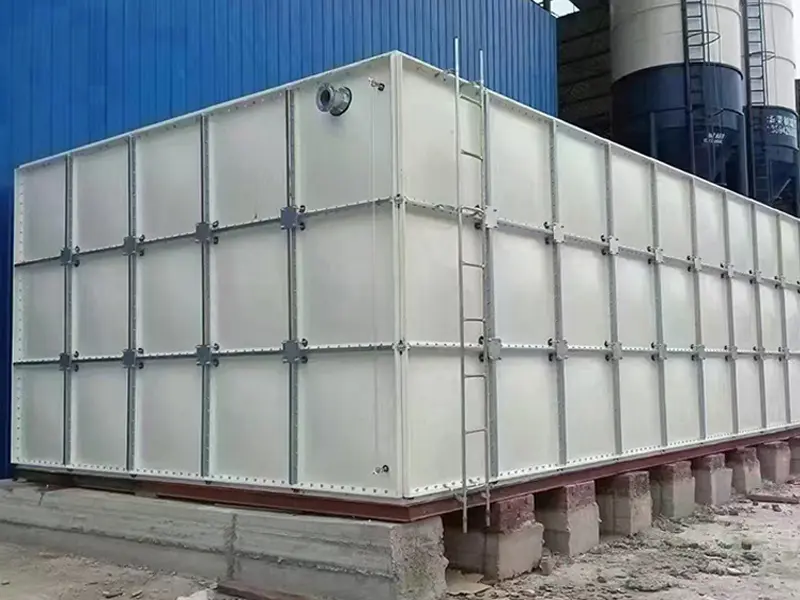

FRP Panel Water Tanks for Fire-Fighting

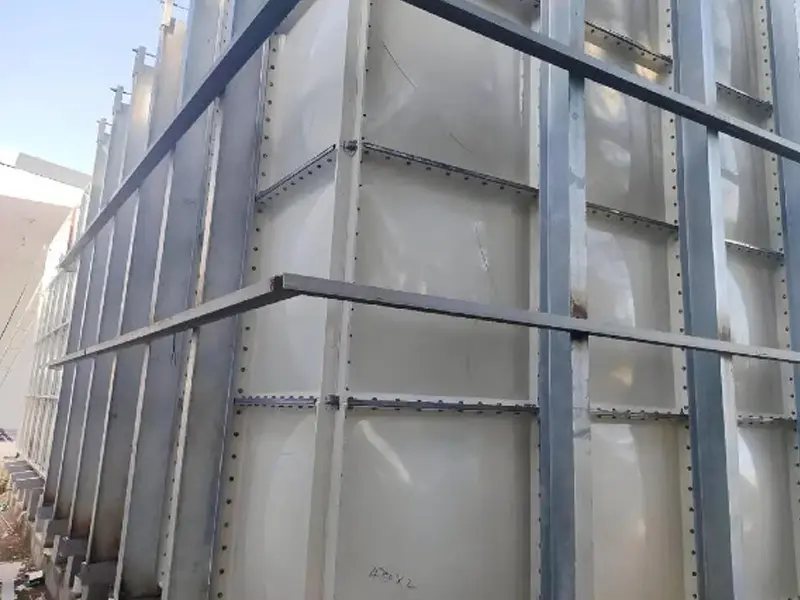

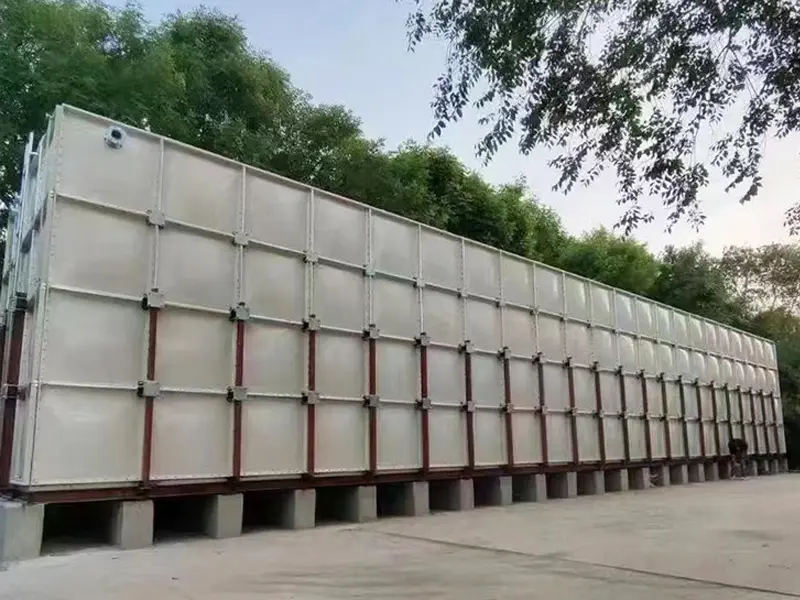

FRP Panel Type Water Tanks with External Reinforcement, No Internal Components
Insulated FRP Water Tank Panels
FAQ
Can you provide original accessories for all brands?
If you can provide the brand and model, we can supply the original accessories. If there is no specific model, we will recommend options with suitable quality and price.
If the quantity of accessories required for our project is not very large, do you have a minimum order quantity?
If the accessories are standard items and we have them in stock, there is no minimum order requirement. For customized parts, it depends on the specific requirements and there may be a minimum order quantity.
If we purchase equipment from you, can we also buy all the consumable accessories needed for the first year?
Yes, you can. We will provide a list of regularly replaced accessories, including the recommended replacement intervals and quantities. You can then decide how much to prepare based on your actual needs.
Do you have any additional services?
Yes, we provide a free goods inspection service. If your supplier is within 200 km of our company (Chengdu), even the transportation cost will be covered by us. If the distance is more than 200 km, only the transportation and hotel costs will be borne by you.
Can all your products accept OEM service?
Yes, for each item, there will be a minimum order quantity, and then we can produce an OEM order for you.
Can you source some other related products for us?
Yes, whether they are water- or wastewater-related products, we can source them for you. We have been working in the water and wastewater fields for more than 10 years.
