The water softener bypass valve is designed for household water purification, boiler softening, and RO pretreatment. It fits 6–18 inch tanks, operates at 0.1–0.6 MPa, and delivers up to 4.5 T/H. Models like the F95A1/A3 series use durable ABS material and support industrial capacities up to 20 T/H.
It offers five operating modes: service, backwash, regeneration, rinse, and brine refill. A face-seal design ensures zero leakage, while the LED display, manual operation wheel, and keypad lock improve usability. The optimized valve chamber reduces size by over 30% and increases efficiency. Connections include a 1″ inlet/outlet and a 3/8″ brine port, with optional filtration configuration—making it suitable for various water softener bypass valve applications.
| Model No. | 63502(F65B1) | 63602(F65B3) |
|---|---|---|
| Notes | Time Type | Flow Type |
| Inlet/Outlet port | 3/4" F | |
| Drain outlet | 1/2" M | |
| Salt suction port | 3/8" M | |
| Base | 2.5" -8NPSM | |
| Central tube | 1.05" OD | |
| Water production | 2m3/h | |
| Suitable for tank | 6"-12" | |
| Regeneration method | Downstream | |
| Working pressure | 0.15MPa-0.6MPa | |
| Inlet temperature | 5°C-50°C | |
| Inlet turbidity | <20FTU | |
| Ambient temperature | 5°C-50°C | |
| Relative humidity | ≤95% (25°C) | |
| Adapted power supply | Input AC100-380V/50-60Hz Output: DC12V, 1.5A | |
| F: Female thread M: Male thread OD: Outer diameter | ||
DETAILS

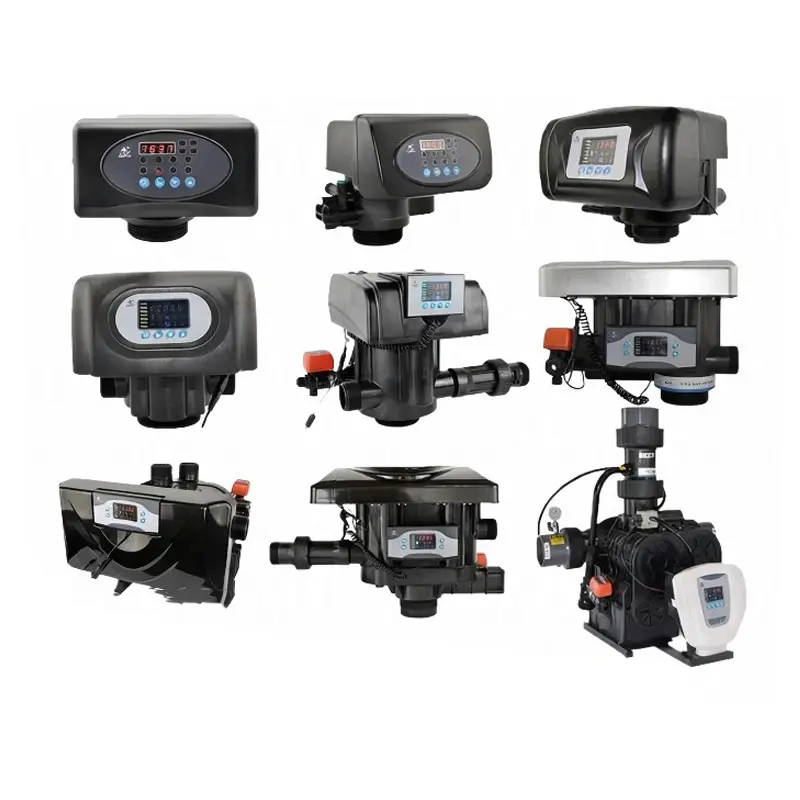

MODEL
If you want water softener bypass valve replacement, let us know your current model, we will give you suggestions.
PACKING
Each water softener bypass valves has an inner box, every 6pcs inner boxes in 1 carton
Can you provide original accessories for all brands?
If you can provide the brand and model, we can supply the original accessories. If there is no specific model, we will recommend options with suitable quality and price.
If the quantity of accessories required for our project is not very large, do you have a minimum order quantity?
If the accessories are standard items and we have them in stock, there is no minimum order requirement. For customized parts, it depends on the specific requirements and there may be a minimum order quantity.
If we purchase equipment from you, can we also buy all the consumable accessories needed for the first year?
Yes, you can. We will provide a list of regularly replaced accessories, including the recommended replacement intervals and quantities. You can then decide how much to prepare based on your actual needs.
Do you have any additional services?
Yes, we provide a free goods inspection service. If your supplier is within 200 km of our company (Chengdu), even the transportation cost will be covered by us. If the distance is more than 200 km, only the transportation and hotel costs will be borne by you.
Can all your products accept OEM service?
Yes, for each item, there will be a minimum order quantity, and then we can produce an OEM order for you.
Can you source some other related products for us?
Yes, whether they are water- or wastewater-related products, we can source them for you. We have been working in the water and wastewater fields for more than 10 years.
