Our 2.5-inch FRP ro membrane and housing is designed for compact commercial and industrial reverse osmosis systems. RO membrane housing manufacturers construct from high-strength fiberglass reinforced epoxy resin, the housing offers excellent corrosion resistance, long service life, and stable performance under continuous high-pressure operation. It is suitable for standard 2521 and 2540 RO membrane elements and can be used in a wide range of water purification applications including commercial pure water systems, laboratory water systems, industrial water treatment, and pre-treatment pilot units.
This 2.5-inch frp ro membrane housing supports working pressures from 300 PSI to 1200 PSI, and is available in multiple lengths, including 14-inch, 21-inch, and 40-inch configurations, to match various system design requirements. The smooth inner surface ensures low flow resistance and easy membrane installation.
Designed and manufactured according to ASME standards, the housing is capable of withstanding more than 100,000 hydraulic pressure cycles and over 6 times the rated burst pressure, ensuring long-term reliability and safe operation. The product has passed multiple international quality certifications and is suitable for use in municipal water, desalination, boiler feed water, food and beverage processing, pharmaceutical systems, and other complex water treatment environments.
MODEL
| Model | Design/Operating Pressure | Max.. Operating Temperature | Min. Operating Temperature | Qualification Pressure | Element Length |
|---|---|---|---|---|---|
| 2540C300E | 300Psi / 21 Bar | 150°F / 66°C | 14°F / -10°C | 1800Psi / 126 Bar | 40" X 1 |
| 2521C300E | 300Psi / 21 Bar | 150°F / 66°C | 14°F / -10°C | 1800Psi / 126 Bar | 21" X 1 |
| 2514C300E | 300Psi / 21 Bar | 150°F / 66°C | 14°F / -10°C | 1800Psi / 126 Bar | 14" X 1 |
| 2540C600E | 600Psi / 41 Bar | 150°F / 66°C | 14°F / -10°C | 3600Psi / 246 Bar | 40" X 1 |
| 2521C600E | 600Psi / 41 Bar | 150°F / 66°C | 14°F / -10°C | 3600Psi / 246 Bar | 21" X 1 |
| 2514C600E | 600Psi / 41 Bar | 150°F / 66°C | 14°F / -10°C | 3600Psi / 246 Bar | 14" X 1 |
| 2540C1000E | 1000Psi / 69 Bar | 150°F / 66°C | 14°F / -10°C | 6000Psi / 414 Bar | 40" X 1 |
| 2521C1000E | 1000Psi / 69 Bar | 150°F / 66°C | 14°F / -10°C | 6000Psi / 414 Bar | 21" X 1 |
| 2514C1000E | 1000Psi / 69 Bar | 150°F / 66°C | 14°F / -10°C | 6000Psi / 414 Bar | 14" X 1 |
| 2540C1200E | 1200Psi / 83 Bar | 150°F / 66°C | 14°F / -10°C | 7200Psi / 498 Bar | 40" X 1 |
| 2521C1200E | 1200Psi / 83 Bar | 150°F / 66°C | 14°F / -10°C | 7200Psi / 498 Bar | 21" X 1 |
| 2514C1200E | 1200Psi / 83 Bar | 150°F / 66°C | 14°F / -10°C | 7200Psi / 498 Bar | 14" X 1 |
APPLICATION

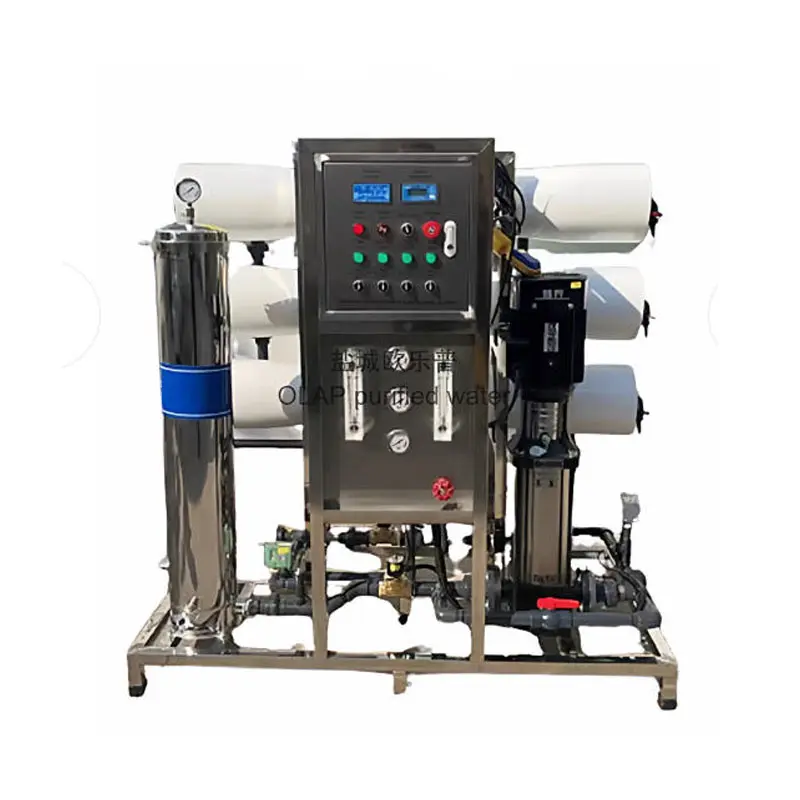

Small Commercial RO System
For systems operating at 300 PSI, this ro membrane filter housing is suitable for small-scale water treatment setups or specific industrial applications where lower pressure requirements are sufficient. At this pressure level, the membrane housing operates stably, ensuring smooth water filtration while maintaining system safety and reliability. For example, in household or small commercial reverse osmosis systems, a working pressure of 300 PSI is adequate to meet daily water purification needs, providing clean drinking water or fulfilling certain industrial process water requirements.

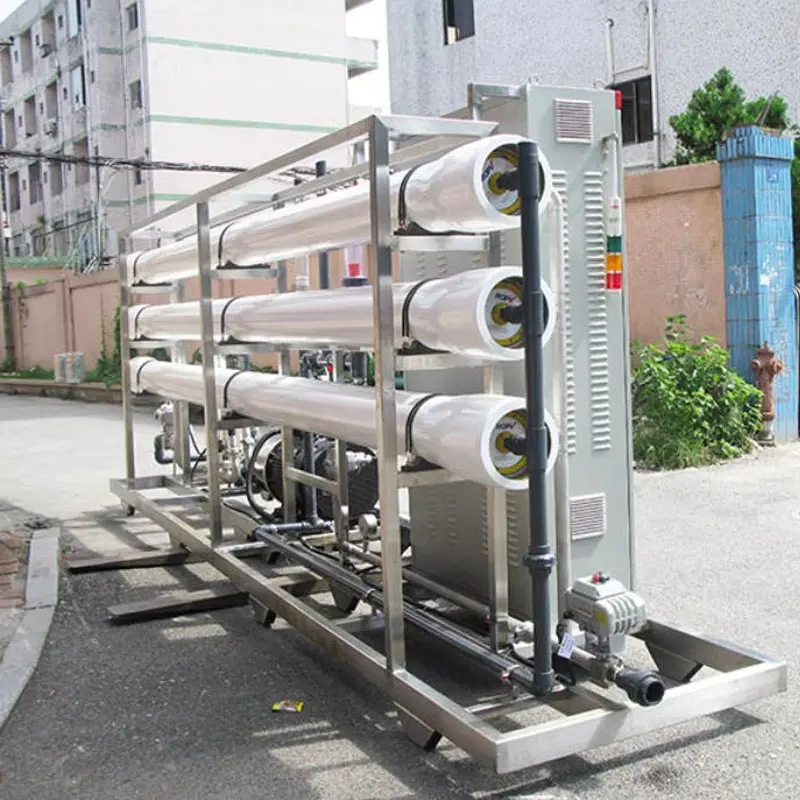

Industrial RO System
As the operating pressure increases, reaching up to 600 PSI, the 2.5-inch end-cap series of RO fiberglass membrane housings performs excellently in medium-scale industrial water treatment. This pressure level is suitable for applications that require higher water quality and larger treatment capacity. The high-strength fiberglass material of the housing can withstand elevated pressures, ensuring no deformation or damage occurs during long-term operation. At the same time, the reasonable design and manufacturing process allow the housing to maintain good sealing performance under high pressure, preventing water leakage and the intrusion of external contaminants.

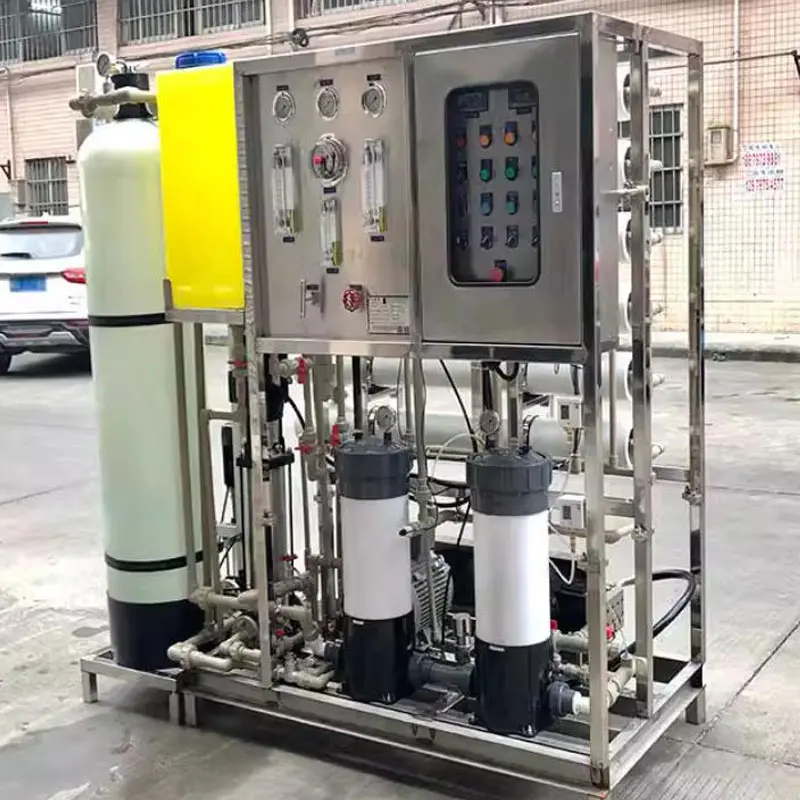

Seawater desalination, chemical industry
When the operating pressure reaches 1200 PSI, this series of products demonstrates outstanding performance and reliability. Such high pressure is typically suitable for large-scale industrial water treatment projects or specialized applications, such as seawater desalination, the chemical industry, and other demanding water treatment fields. Under such high pressure, the housings, thanks to their high-quality materials and exquisite manufacturing process, can operate stably, providing users with efficient and reliable water treatment solutions.
FAQ
What is the typical production lead time for your membrane housings?
It depends on the quantity. For regular orders, the production lead time is around 15 days (excluding items that are in stock).
What is the pressure rating of your membrane housings?
Available pressure ratings include:
300 PSI
450 PSI
600 PSI
1000 PSI
1200 PSI
(Other custom pressure ratings can be provided based on application requirements.)
What materials are used?
Shell: Fiber-reinforced epoxy resin (FRP)
Inner liner: High-strength polyethylene (PE) or polyurethane
End caps & adapters: Stainless steel / Engineering plastics
These materials ensure corrosion resistance, light weight, and long service life.
Can the membrane housing be used in seawater desalination systems?
Yes. We offer high-pressure models (1000 PSI and above) suitable for seawater RO systems. The smooth inner surface also helps reduce pressure loss and fouling.
How do I install the membrane elements in the housing?
Typically:
Open the end cap
Insert thrust ring
Lubricate O-rings
Push membrane element in direction of concentrate outlet
We provide detailed installation manuals upon shipment.
