PVC PVDF UF Filter Membrane, 100% Compatible Replacement for Leading UF Membrane Brands

At present, ultrafiltration (UF) products have not yet been standardized. Each membrane manufacturer generally produces membrane modules with unique dimensions and connection interfaces. This not only limits customers’ freedom to choose in the future but also leads to unfair competition and even project monopolies within the UF industry, ultimately causing significant inconvenience to end users.

In response to market demand, our company has developed a series of replacement UF membrane products that can 100% replace numerous well-known brands. We guarantee that no additional modification or adjustment is required — achieving true direct replacement in every sense.

SEND INQUIRY
  • The UF filter membrane, manufactured through a standardized production process, features low operating pressure, high flux, and excellent filtration precision.
  • It offers exceptional cost performance, with low energy consumption that helps reduce both operating and replacement costs.
  • Supported by professional technical services, we ensure worry-free operation after replacement.
  • The membrane enables seamless integration, requiring no modification to piping, electrical, or control systems during replacement.
  • We provide complete solution support for diverse application needs.

          For UF membrane price, please send us inquiry.

Back to Ultrafiltration Membrane Category

MODEL

ModelUF225-CPA60UF-1060UF219-XFLOW55LUF-2860UF-2880
PerformanceMembrane materialPVCPVDF
Inner and outer diameter dimensions of membrane fibers1.0mm/1.7mm0.7mm/1.3mm
Cutting molecular weight100000 Dalton
Design water production1500-3000L/H2000-4000L/H1500-3000L/H1500-4000L/H2000-6000L/H
Effective external pressure membrane area (㎡)4043405177
Water inlet and outlet interfaceDN50(Ø63)DN50(Ø63)DN65(Ø75)DN50(Ø63)DN50(Ø63)
Housing materialUPVC
End sealing materialEpoxy resin
Working conditionPretreatment50-150μm
Operation ModeInternal pressure operationExternal pressure operation
Working pressure0.02-0.2MPa
Maximum inlet pressure0.3MPa
Maximum transmembrane pressure difference0.2MPa
pH2-12
Continuous residual chlorine concentration is tolerable100ppm1000ppm
Intermittent residual chlorine concentration is tolerable200ppm2000ppm
Working temperature1℃-40℃
Inlet water qualityTurbidity≤50NTU
Water outlet parameters* Turbidity of produced water＜15NTU＜50NTU
* SDI＜1
Particle100% removal rate
* Microorganisms, pathogens99.99% removal rate
Backwash designBackwash frequencyEach 15-60 minutes
Backwash pressure≤0.2MPa
Backwash Flow100-150L/H.㎡
Backwash chemical15-20ppm NaClO500ppm NaClO
Backwash with chemical frequencySuggest automatic backwashing every time medicationSuggest conducting chemical enhanced backwashing within 1-7 days
Chemical cleaning designChemical cleaning frequencyOnce every 1-4 months
Acid chemicalCitric acid oxalic acid or hydrochloric acid (solution with pH=2)
Alkaline chemicalNaOH+NaClO (solution with pH=2)
*Indicates testing with municipal tap water
SEND INQUIRY

APPLICATION

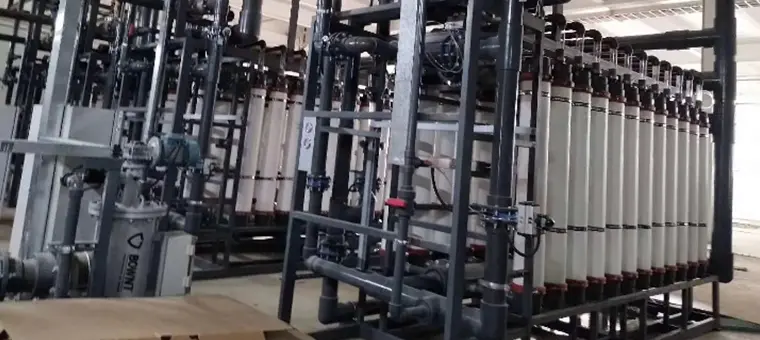

Chemical & Oil Industry 9500 T/D Greywater Reuse Ultrafiltration System

UF: PES internal pressure-type membrane modules.
Model: UF219-XLOW55
Quantity: 248 units
Replacement for imported brand: Norit

Thermal Power Plant 3000 T/D Ultrapure Water Treatment Ultrafiltration System

UF: PES internal pressure-type membrane modules.
Model: UF219-XLOW64
Quantity: 40 units
Replacement for imported brand

Pre-treatment and post-treatment of reverse osmosis
Food, fermentation, milk concentration processing
Wastewater recycling and utilization
Urban, rural and township drinking water treatment
Food and beverage processing water
Municipal water use, treatment of surface water
SEND INQUIRY

DETAILS

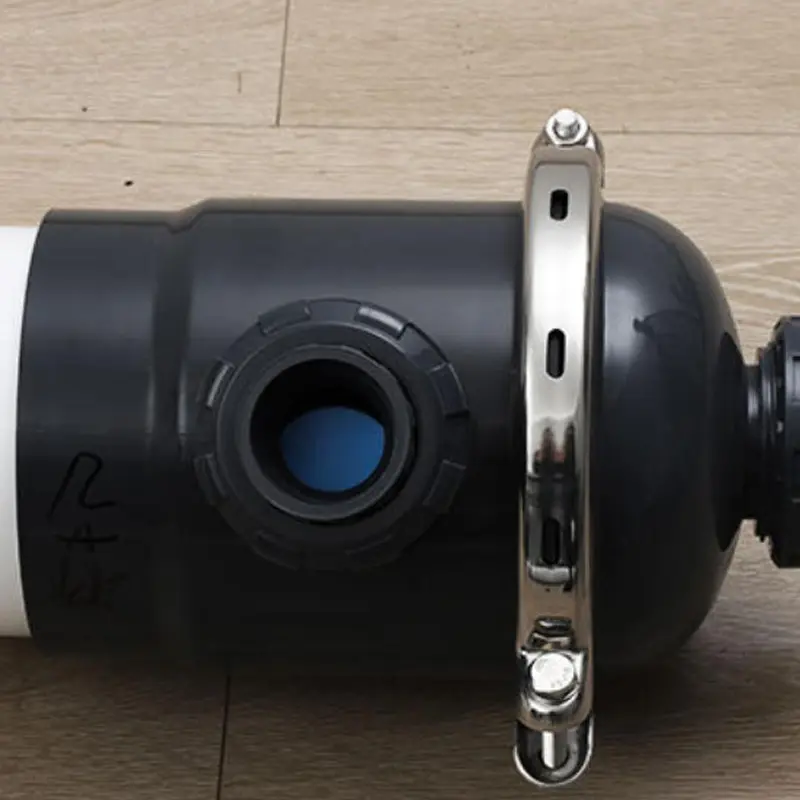

UF replacement details 1
Strict selection of materials

the ultrafiltration UF membrane undergoes multiple process steps, thickens the interface, and is not easy to crack

Stable performance

Different UF membrane specification, good product performance, good effluent quality, high filling density, strong hydrophilicity, for  UF membrane water filter.

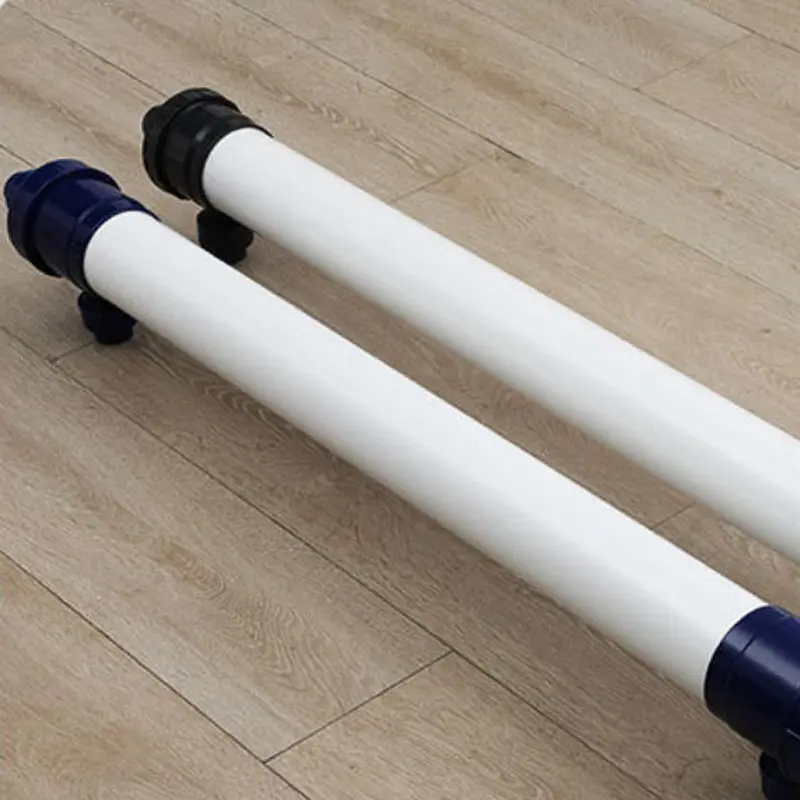

UF replacement details 3

OEM Service

With top UF membrane manufacturers, we support customization, diverse product specifications and styles, can be customized according to customer needs based on drawings and samples

FAQ

If our existing UF membrane element is from a big brand, can you provide a 100% compatible replacement?

Yes. Just tell us the brand and model number. For many major brands, we can supply a 100% compatible UF membrane element without any modification to the pipe connections.

  • We have tubular UF membranes, submerged MBR membranes, spiral UF membranes, and ceramic UF membranes.

Yes, we supply both UF membrane elements and UF systems. Our customer in Mexico said that importing a UF system from us would not cost more than assembling it locally.

Yes, we provide a free goods inspection service. If your supplier is within 200 km of our company (Chengdu), even the transportation cost will be covered by us. If the distance is more than 200 km, only the transportation and hotel costs will be borne by you.

Yes, for each item, there will be a minimum order quantity, and then we can produce an OEM order for you.

Yes, whether they are water- or wastewater-related products, we can source them for you. We have been working in the water and wastewater fields for more than 10 years.
