Industrial PVDF hollow fiber Ultrafiltration Membrane Cartridge – Outside-In Pressure UF Element

  • Made of PVDF material, offering excellent chemical resistance and superior oxidation stability.
  • High filtration precision with a nominal pore size of 0.03 μm and uniform pore distribution.
  • High mechanical strength and flexibility — membrane fibers feature an elongation rate exceeding 100%.
  • Low pressure, high flux — achieves designed flow rates even under very low transmembrane pressure.
  • Excellent chemical stability — membrane performance remains unchanged after 50 cycles of acid and alkali cleaning.
  • Strong anti-fouling capability — cleaning intervals extended by 30%, with effective flux recovery after cleaning.
  • Outside-in flow design — provides higher contamination tolerance and wider adaptability to feed water quality.
  • Standardized connection fittings — significantly improve ease of installation and module compatibility.
SEND INQUIRY

PVDF hollow fiber ultrafiltration membrane cartridge features excellent resistance to oxidation, aging, and chemicals, along with outstanding anti-fouling performance. The PVDF fibers undergo a special hydrophilic modification process that greatly enhances their surface hydrophilicity, resulting in higher water permeability, longer service life, and improved fouling resistance. After years of application and development, these membranes have been widely used in industrial wastewater treatment, municipal sewage treatment, water reclamation, drinking water purification, industrial process water, and pretreatment for pure and ultrapure water systems.

Back to Ultrafiltration Membrane Category

MODEL

<

Model

UF-0660

UF-0860

UF-0880

UF-1060

Performance

Membrane material

PVDF

Inner and outer diameter dimensions of membrane fibers

0.7mm/1.3mm

Filtration accuracy

0.03mm

Design water production

1200-3000L/H

1500-4000L/H

2000-6000L/H

2000-6000L/H

Effective external pressure membrane area (㎡)

40

51

77

77

Water inlet and outlet interface

DN40(Ø50)

DN50(Ø63)

DN50(Ø63)

DN50(Ø63)

Housing material

UPVC

End sealing material

Epoxy resin

Working condition

Pretreatment

50-150μm

Operation Mode

External pressure operation

Working pressure

0.02-0.2MPa

Maximum inlet pressure

0.3MPa

Maximum transmembrane pressure difference

0.15MPa

pH

2-12

Working temperature

1℃-40℃

Inlet water quality

Turbidity≤50NTU

Water outlet parameters

* Turbidity of produced water

＜0.1NTU

* SDI

＜1

* Microorganisms, pathogens

99.99% removal rate

Backwash design

Backwash frequency

Each 15-60 minutes

Backwash pressure

≤0.2MPa

Backwash Flow

100-150L/H.㎡

Air washing pressure

0.1MPa

Air washing time

30-60 seconds

Suggested air wash flow rate(Nm³/h)

4-8

8-12

8-12

8-12

Chemical backwash frequency

Suggest conducting chemical enhanced backwashing within 1-7 days

Chemical cleaning design

Chemical cleaning frequency

Once every 1-4 months

Acid chemical

Citric acid oxalic acid or hydrochloric acid (solution with pH=2)

Alkaline chemical

NaOH+NaClO (solution with pH=2)







*Indicates testing with municipal tap water



SEND INQUIRY

APPLICATION

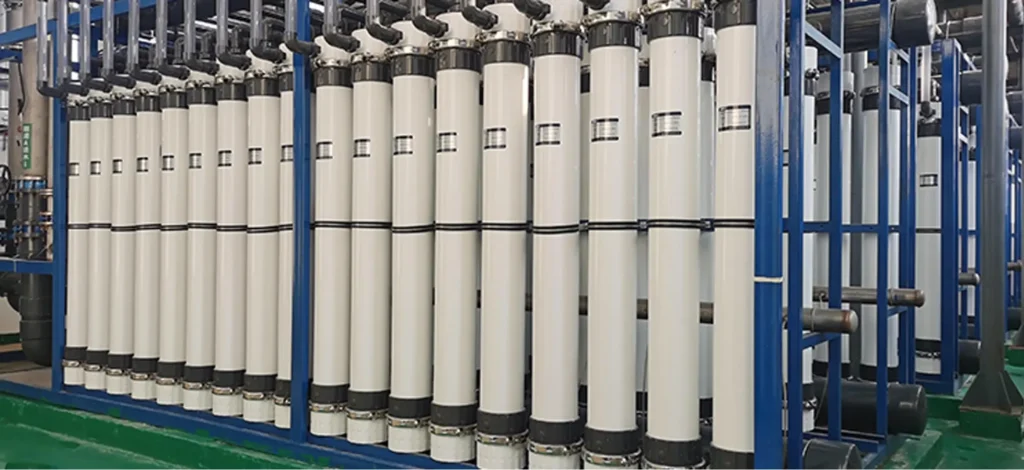

ultrafiltration membrane applicaiton
    • Ultrafiltration System for 4000T/D Wastewater Treatment at Coal Chemical Co., Ltd​， choose pvdf ultrafiltration membrane cartridge
      Model: UF2880
      Quantity： 52 pieces
    • 20000T/D water reuse membrane ultrafiltration system​
      Model: UF2880
      Quantity: 280 pieces
    • Optoelectronics Company 4000T/D Ultra Pure Water Treatment Ultrafiltration System
      Model: UF0860
      Quantity: 80 pieces
    • 13000T/D Petrochemical Wastewater Treatment hollow fiber ultrafiltration membrane cartridge System
      Model: UF250-MAX40
      Quantity: 320 pieces
    • 8000T/D chemical wastewater treatment ultrafiltration system
      Model: UF225-P50
      Quantity: 200 pieces
    • 18000T/D chemical wastewater treatment ultrafiltration system
      Model: UF216-2020AN
      Quantity: 290 pieces
    • 1500T/D electronic factory ultrapure ultrafiltration membrane cartridges for water treatment system
      Model: UF0860
      Quantity: 24 pieces
    • 2000T/D boiler feedwater treatment ultrafiltration system
      Model: UF0860
      Quantity: 36 pieces
    • 20000T/D boiler feedwater treatment ultrafiltration system
      Model: UF0660
      Quantity: 500 pieces
    • 2000T/D+10000T/D coking wastewater treatment ultrafiltration system
      Model: UF2880+UF2860
      Quantity 368 pieces
    • 20000T/D boiler feedwater treatment ultrafiltration system
      Model: UF1060
      Quantity: 240 pieces
    • 13000T/D boiler feedwater treatment ultrafiltration system
      Model: UF2660
      Quantity: 314 pieces

    For the ultrafiltration membrane cartridge price, click the inquiry.

SEND INQUIRY

FAQ

If our existing UF membrane element is from a big brand, can you provide a 100% compatible replacement?

Yes. Just tell us the brand and model number. For many major brands, we can supply a 100% compatible UF membrane element without any modification to the pipe connections.

  • We have tubular UF membranes, submerged MBR membranes, spiral UF membranes, and ceramic UF membranes.

Yes, we supply both UF membrane elements and UF systems. Our customer in Mexico said that importing a UF system from us would not cost more than assembling it locally.

Yes, we provide a free goods inspection service. If your supplier is within 200 km of our company (Chengdu), even the transportation cost will be covered by us. If the distance is more than 200 km, only the transportation and hotel costs will be borne by you.

Yes, for each item, there will be a minimum order quantity, and then we can produce an OEM order for you.

Yes, whether they are water- or wastewater-related products, we can source them for you. We have been working in the water and wastewater fields for more than 10 years.
