Our industrial brackish water reverse osmosis membrane replacement is engineered to deliver high performance, reliability, and cost efficiency for various water treatment applications.
Main Technical Specifications
Maximum Operating Pressure: 41 bar (600 psi)
Maximum Operating Temperature: 45°C (113°F)
Maximum Pressure Drop per Element: 1.0 bar (15 psi)
Continuous Operation pH Range: 2–11
Chemical Cleaning pH Range: 1–13
Maximum Feed Water SDI (SDI15): 5.0
Maximum Free Chlorine Concentration: <0.1 ppm
Key Technologies
1. Precise tension control technology
2. Advanced membrane formulation and manufacturing process
3. High-precision coating technology
4. Composite membrane with cross-linked nanomaterials — providing a smoother and more hydrophilic surface to enhance anti-fouling performance
Innovations
1. The high anti-fouling and high salt rejection rate of the brackish water RO membrane can reach up to 99.85%
2. The membrane sheet adopts an oxidation-free post-treatment process with increased skin layer thickness and crosslinking degree, ensuring longer service life and better chemical resistance
3. A short membrane leaf design increases the effective membrane area utilization, ensures more uniform flux distribution, and reduces fouling
4. The wide pH tolerance range (1–13) significantly improves the effectiveness of chemical cleaning against biofouling, organic compounds, and inorganic scaling
5. Based on market demand, customized product design is adopted to provide tailored solutions that address specific industry challenges
APPLICATION

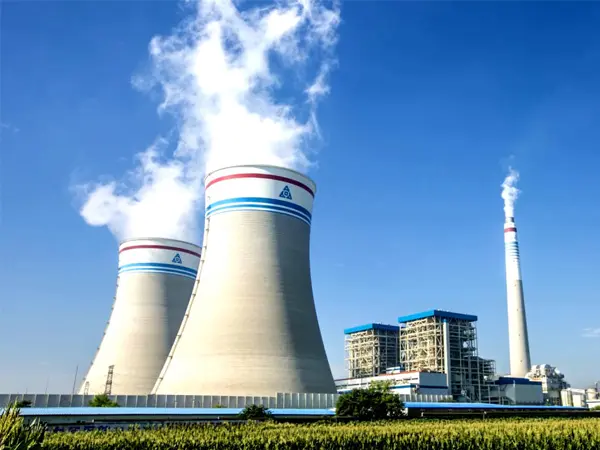

Power Plants
Applied in boiler feed water and condensate polishing systems where feed water TDS typically ranges from 2,000 to 8,000 mg/L. The membrane ensures high salt rejection and stable permeate quality to protect boilers and improve thermal efficiency.

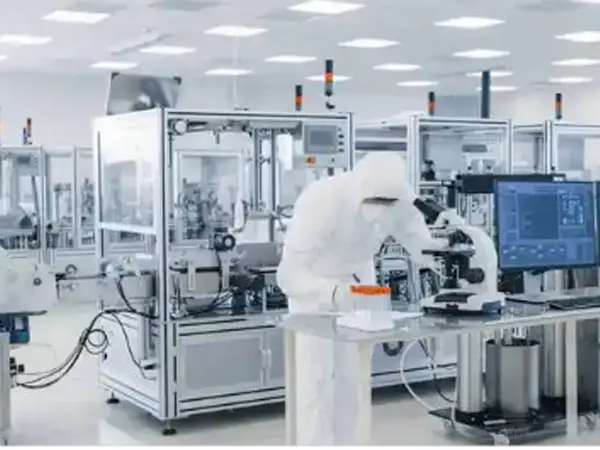

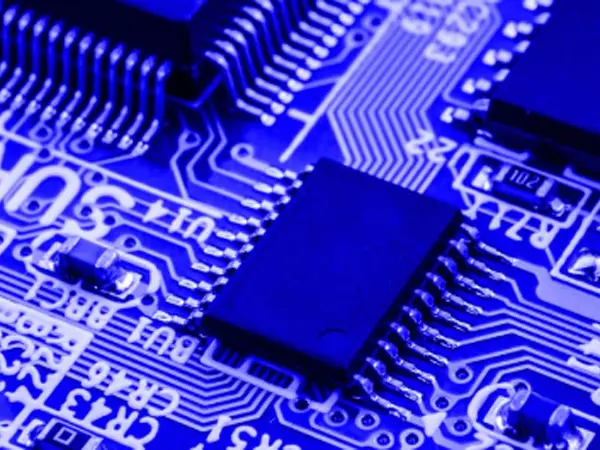

Electronics & Semiconductor Manufacturing
Used in ultrapure water production for precision processes. Treats feed water with moderate salinity (2,000–6,000 mg/L) to produce low-conductivity water, serving as a pretreatment step before mixed-bed or EDI systems.
Chemical & Pharmaceutical Industry
Suitable for removing dissolved salts, heavy metals, and organic contaminants from feed water with TDS levels between 3,000–10,000 mg/L. Ensures consistent process water purity to meet strict manufacturing standards.
Food & Beverage Processing
Used for ingredient water, bottling water, and process recycling in plants treating brackish wells or municipal sources (TDS 1,000–5,000 mg/L). Improves taste, stability, and microbiological safety of production water.
Municipal & Rural Water Supply
Ideal for desalination of brackish groundwater with TDS typically between 2,000 and 10,000 mg/L. Provides cost-effective potable water or industrial feed water for communities and small towns.

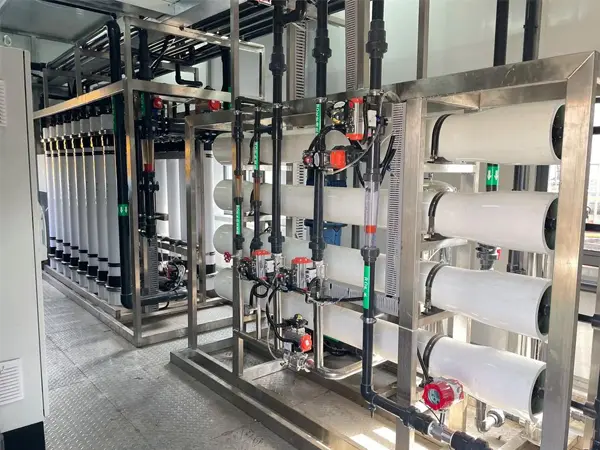

Wastewater Reuse & Recycling
Deployed in tertiary wastewater treatment where feed water salinity ranges from 2,000 to 7,000 mg/L. Enables high recovery rates and clean permeate suitable for industrial reuse or irrigation.

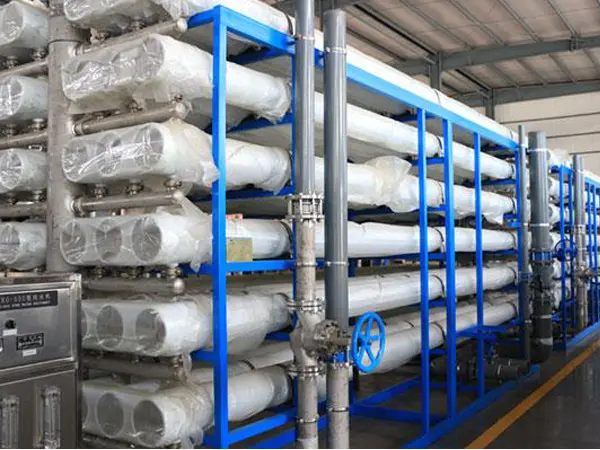

Pre-desalination for Seawater RO Systems
Used as a first-stage RO system for medium-salinity water (5,000–15,000 mg/L) to reduce total dissolved solids before seawater RO, lowering energy consumption and extending membrane life in the main desalination stage.
MODEL
| Type | Membrane Model | Active Area Ft(m3) | Flux gpd(m3/d) | Minimum Rejection | Stablized Rejection Rate(%) | Pressure psi(MPa) | Solution NaCL(ppm) | Recovery |
|---|---|---|---|---|---|---|---|---|
BW |
BW-8040-400HR |
400(37) |
11,000(42) |
99.3 |
99.50 |
225(1.55) |
2,000 |
15 |
BW |
BW-4040-82HR |
82(7.6) |
2,050(7.8) |
99.3 |
99.5 |
225(1.55) |
2,000 |
15 |
FR |
BW-8040-400FR |
400(37) |
10,500(40) |
99.3 |
99.5 |
225(1.55) |
2,000 |
15 |
FR |
BW-8040-400FR/34 |
400(37) |
10,500(40) |
99.3 |
99.5 |
225(1.55) |
2,000 |
15 |
FR |
BW-4040-82FR |
82 (7.6) |
2,050 (7.8) |
99.3 |
225(1.55) |
225(1.55) |
2,000 |
15 |
XFR |
BW-8040-400XFR |
400 (37) |
10,500 (40) |
99.4 |
99.60 |
225(1.55) |
2,000 |
15 |
XFR |
BW-8040-400XFR/34 |
400(37) |
10,500(40) |
99.4 |
99.6 |
225(1.55) |
2,000 |
15 |
XFR |
BW-4040-82XFR |
82(7.6) |
2,050 (7.8) |
99.4 |
99.6 |
225(1.55) |
2,000 |
15 |
HRFR |
BW-8040-400HRFR |
400(37) |
11,500 (43.5) |
99.4 |
99.70 |
225(1.55) |
2,000 |
15 |
HRFR |
BW-8040-400HRFR/34 |
400(37) |
11,500 (43.5) |
99.4 |
99.7 |
225(1.55) |
2,000 |
15 |
HRFR |
BW-4040-82HRFR |
82(7.6) |
2,250(7.8) |
99.4 |
99.7 |
225(1.55) |
2,000 |
15 |
XLE |
BW-8040-400XLE |
440(41) |
11,500 (43.5) |
98.0 |
99.0 |
100(0.69) |
500 |
15 |
XLE |
BW-8040-440XLE |
440 (41) |
12,650 (48) |
98.0 |
99.00 |
100(0.69) |
32,000 |
15 |
XLE |
BW-4040-82XLE |
82(7.6) |
2,250(8.7) |
98.0 |
99.0 |
100(0.69) |
500 |
15 |
FRLE |
BW-8040-400FRLE |
400 (37) |
11,500(43.5) |
99.0 |
99.5 |
150(1.03) |
2,000 |
15 |
FRLE |
BW-8040-400FRLE/34 |
400(37) |
11,500 (43.5) |
99.0 |
99.5 |
150(1.03) |
2,000 |
15 |
FRLE |
BW-4040-82FRLE |
82(7.6) |
2,250(8.7) |
99.0 |
99.5 |
150(1.03) |
2,000 |
15 |
HRLE |
BW-8040-400HRLE |
400(37) |
11,500 (43.5) |
99.0 |
99.5 |
150(1.03) |
2,000 |
15 |
HRLE |
BW-8040-440HRLE |
440(41) |
12,650 (48) |
99.0 |
99.5 |
150(1.03) |
2,000 |
15 |
HRLE |
BW-4040-82HRLE |
82(7.6) |
2,250(8.7) |
99.0 |
99.5 |
150(1.03) |
2,000 |
15 |
DETAILS
CHINA SUPPLIERS STATUS
In the “Made in China 2025” initiative, membrane products are identified as a key development focus among advanced materials. The plan sets goals for reducing the cost of water treatment membrane materials by more than 20% by 2025, and lowering the energy consumption of special separation membranes and gas separation membranes by 20%. Separation equipment based on membrane materials will become the main separation technology in industries such as petrochemical and coal chemical processing, with separation efficiency expected to improve by 30%, and the localization rate to exceed 50%.
During the 14th Five-Year Plan period, China’s membrane technology industry is projected to maintain rapid growth, with total output value expected to reach about USD 70 billion by 2025, and USD 110–140 billion by 2035. Currently, China has become one of the world’s most important producers of reverse osmosis membranes, accounting for 18.98% of global production, ranking second only to the United States.
Note: DOW®, Toray®, and Hydranautics® are registered trademarks of their respective owners. Our reverse osmosis replacement membranes are independently manufactured replacement elements designed for compatible performance, not affiliated with or endorsed by these companies.
