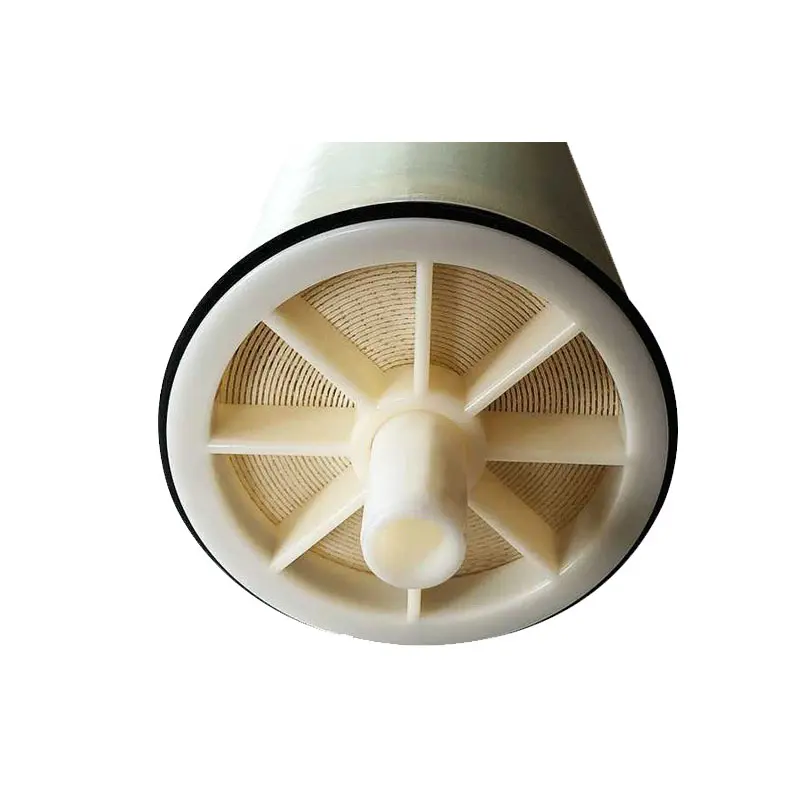

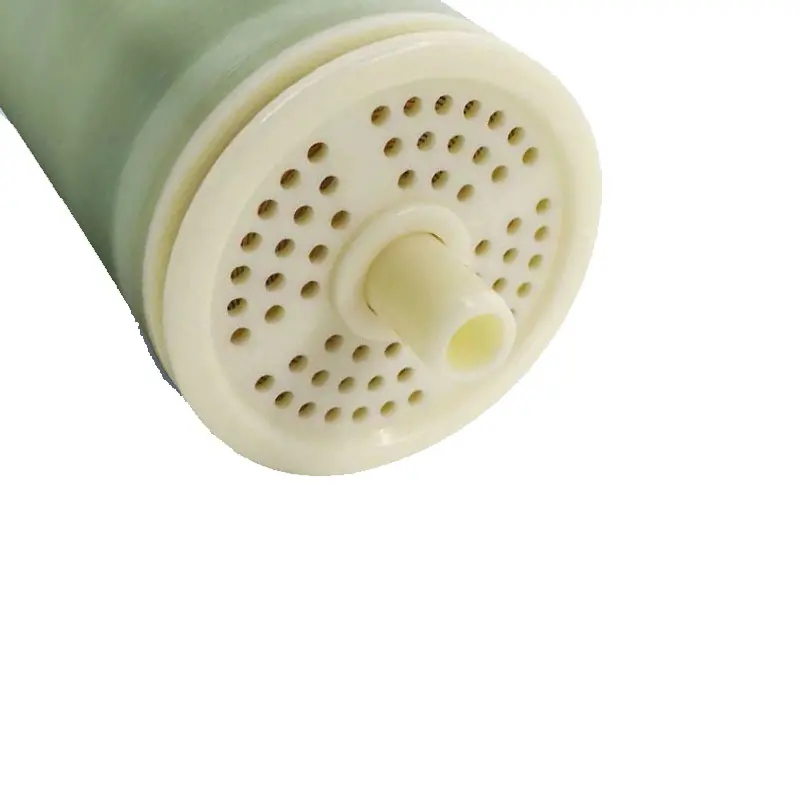

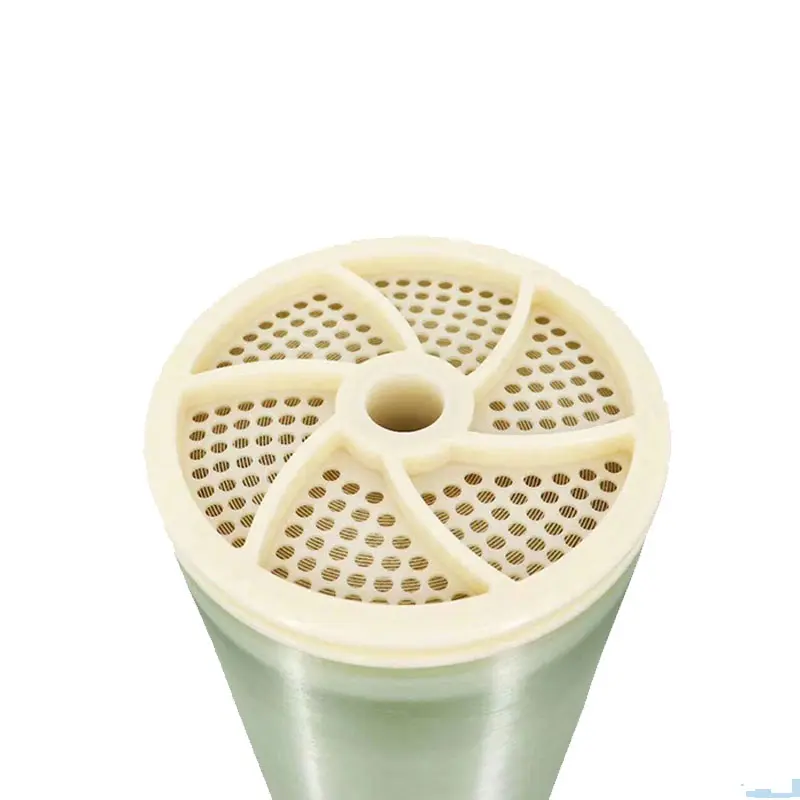

Our reverse osmosis membrane for seawater desalination is designed to provide high salt rejection, stable performance, and long service life even under challenging marine conditions.
Seawater reverse osmosis membrane technology is very muature, it effectively removes dissolved salts, organic matter, and other impurities from seawater, producing high-quality fresh water suitable for industrial, municipal, or offshore applications.
With advanced membrane technology and precise manufacturing, our RO elements ensure excellent energy efficiency and consistent permeate quality.
They are compatible with most standard 8-inch pressure vessels and can be easily integrated into new or existing RO systems.
Whether for seawater desalination plants, coastal industries, or island water supply systems, our membranes offer a reliable and cost-effective solution.
APPLICATION

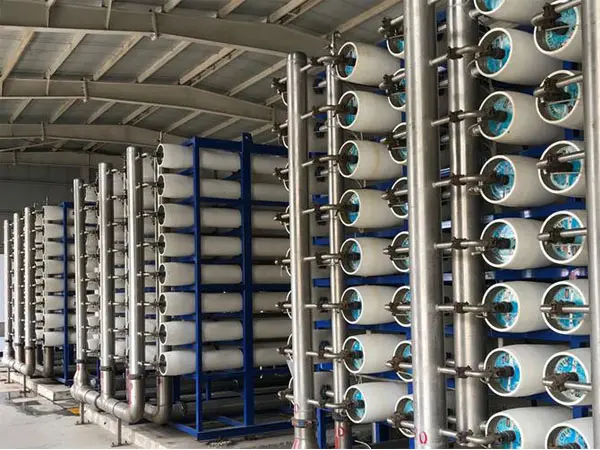

- Seawater Desalination Plants – Converting seawater into high-quality fresh water for industrial and municipal use.
- Coastal and Island Water Supply – Reliable fresh water supply for islands and remote coastal areas.
- Industrial Process Water – Supplying purified water for factories, power plants, and offshore platforms.
- Marine Aquaculture & Ships – Ensuring clean water for aquaculture systems and shipboard use.
MODEL
| Type | Membrane Model | Active Area Ft(m3) | Flux gpd(m3/d) | Minimum Rejection | Stablized Rejection Rate(%) | Pressure psi(MPa) | Solution NaCL(ppm) | Recovery |
|---|---|---|---|---|---|---|---|---|
HR |
SW-8040-400HR |
400(37) |
6,900(26) |
99.70 |
99.80 |
800(5.5) |
32,000 |
8 |
HR |
SW-8040-440HR |
440(41) |
7,500(28) |
99.70 |
99.8 |
800(5.5) |
32,000 |
8 |
HR |
SW-4040-82HR |
82(7.6) |
1,180(4.5) |
99.6 |
99.70 |
800(5.5) |
32,000 |
8 |
XLE |
SW-8040-400XLE |
400(37) |
9,000(34) |
99.60 |
99.70 |
800(5.5) |
32,000 |
8 |
XLE |
SW-8040-440XLE |
440(41) |
9,900(37.4) |
99.60 |
99.70 |
800(5.5) |
32,000 |
8 |
XLE |
SW-4040-82XLE |
82(7.6) |
1,830(6.9) |
99.50 |
99.60 |
800(5.5) |
32,000 |
8 |
HRLE |
SW-8040-400HRLE |
400(37) |
7,500(28) |
99.70 |
99.80 |
800(5.5) |
32,000 |
8 |
HRLE |
SW-8040-440HRLE |
440(41) |
82,00(31) |
99.70 |
99.80 |
800(5.5) |
32,000 |
8 |
HRLE |
SW-4040-82HRLE |
82(7.6) |
1,450(5.5) |
99.60 |
99.70 |
800(5.5) |
32,000 |
8 |
HRFR |
SW-8040-400HRFR/34 |
400(37) |
6,000(23) |
99.70 |
99.80 |
800(5.5) |
32,000 |
8 |
XHR |
SW-8040-400XHR |
400(37) |
6,000(23) |
99.70 |
99.82 |
800(5.5) |
32,000 |
8 |
XHR |
SW-8040-440XHR |
440(41) |
6,600(25) |
99.70 |
99.82 |
800(5.5) |
32,000 | |
XHR |
SW-4040-82XHR |
82(7.6) |
1,180(4.5) |
99.65 |
99.75 |
800(5.5) |
32,000 |
8 |
Industrial Seawater Desalination Reverse Osmosis Membrane Series:
SW-8040-400HR SW-8040-440HR SW-4040-82HR
SW-8040-400HRLE SW-8040-440HRLE SW-4040-82HRLE
SW-8040-400FR/34 SW-8040-400XHR SW-8040-440XHR SW-4040-82XHR
Commercial Seawater Desalination Reverse Osmosis Membrane Series:
SW-2540-28LE SW-4021-33LE SW-2521-12LE
SW-2540-28HRLE SW-4021-33HRLE SW-2521-12HRLE
SW-2540-28HR SW-4021-33HR SW-2521-12HR
DETAILS
CHINA SUPPLIERS STATUS
In China, seawater reverse osmosis swro membrane technology for desalination has been continuously advancing. For example, Chinese scientists have developed a polyester-based reverse osmosis membrane that overcomes the chlorine resistance weakness of traditional polyamide membranes.
With strong policy support, seawater desalination — including reverse osmosis membrane technology — has been incorporated into China’s national strategic development plan.
However, there are still weaknesses in the industrial chain: one study indicates that domestically manufactured membrane reverse osmosis element for only about 10% of the market share in China’s seawater desalination sector, and a high proportion of raw materials are still imported.
