Common Faults Caused by Incorrect reverse osmosis membrane housing Installation and On-Site Rapid Diagnostic Methods
Incorrect reverse osmosis membrane housing installation is one of the primary causes of operational failures in water treatment systems (such as pure water/reclaimed water reverse osmosis, seawater desalination). The resulting fault phenomena are diverse and interrelated, requiring systematic on-site observation and parameter analysis to quickly identify the root cause. The following are common fault phenomena and corresponding on-site rapid diagnostic methods.

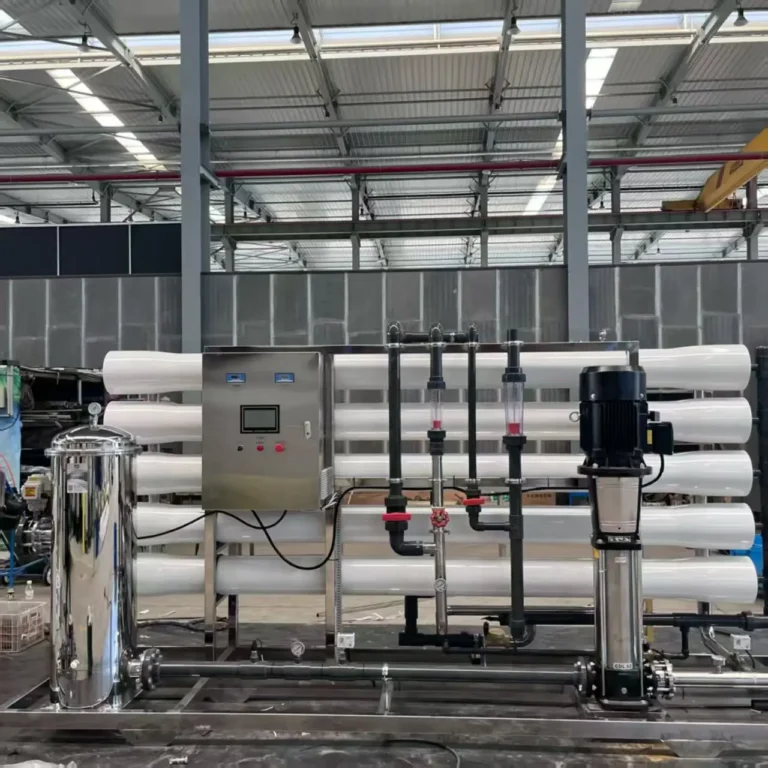

Common Fault Phenomena and Cause Analysis of Reverse Osmosis Membrane Housing Installation
Faults caused by incorrect reverse osmosis membrane housing installation can be categorized into three main types: seal failure, membrane element damage, and system performance degradation. Each type has distinct characteristic manifestations and causal links.
Seal Failure Type Faults: Leakage and Water Seepage are Primary Signals
Fault Phenomena:
Continuous dripping or dampness at the connection between the reverse osmosis membrane housing and piping (common at quick-connect fittings).
Water seepage at the edge of the reverse osmosis membrane housing end cap (accompanied by loose end cap bolts or exposed seals).
Cracks appearing on the side wall or bottom of the reverse osmosis membrane housing (in severe cases, accompanied by a “bursting” sound, often occurring during sudden spikes in operating pressure).
Main Causes:
Improper installation of seals (O-rings, thrust rings), such as twisting or incomplete seating in the seal groove.
Insufficient lubrication of seals (excessive friction during insertion, leading to seal tearing).
Mismatch between the pipe fitting type and the reverse osmosis membrane housing connector (e.g., installing a 1/2″ fitting into a 3/4″ housing, resulting in a loose connection).
Uneven tightening of reverse osmosis membrane housing end cap bolts (over-tightening on one side causing end cap deformation and seal failure).
On-Site Rapid Diagnosis:
Visual Inspection: Directly observe all connection points of the reverse osmosis membrane housing (fittings, end caps, seal grooves) looking for water stains, cracks, or damaged seals.
Pressure Test: Use a low-pressure manual pump (0.5-1.0 MPa) to fill the reverse osmosis membrane housing with water and observe the pressure drop rate. A pressure drop exceeding 0.1 MPa within 10 minutes indicates a leak.
Fitting Inspection: Disassemble suspected fittings, check the integrity of the O-rings (e.g., for cuts, aging), and wipe the inside of the fitting with a dry cloth to confirm no debris remains.
Membrane Element Damage Type Faults: Deterioration of Permeate Quality and Pressure Anomalies
Fault Phenomena:
Sudden sharp increase in permeate conductivity (e.g., from 10 μS/cm to over 100 μS/cm, indicating damage to the membrane’s salt rejection layer).
Rupture of the membrane element outer casing (tears in the membrane leaf or a deformed central tube visible upon disassembly).
Rupture of the membrane element end plate (clear impact marks on the inside of the end cap, often at the contact point between the membrane element and end cap).
Abnormally high system operating pressure (e.g., high-pressure pump outlet pressure rises from 1.5 MPa to 2.5 MPa with a decrease in permeate flow).
Main Causes:
Reverse installation of the membrane element (the brine side enters the housing first, damaging the brine seal and allowing brine to leak into the permeate side).
Clearance not eliminated between the membrane element and the housing (the element moves back and forth during operation, impacting the end plate or housing inner wall).
Incorrect thrust ring location (installed on the feed side instead of the brine side; during backwash, the element moves towards the feed side, causing collisions).
Improper seal lubrication (using non-food-grade lubricants like dish soap or Vaseline, causing embrittlement of the membrane element central tube).
On-Site Rapid Diagnosis:
Permeate Water Quality Test: Use a TDS meter or conductivity meter for a quick measurement. If conductivity exceeds twice the design value, the membrane salt rejection layer is likely damaged (e.g., reverse installation or seal failure).
Membrane Element Visual Inspection: Disassemble the housing, remove the element, and check for cracks in the outer casing, deformation of the central tube (e.g., bending, dents), and impact marks on the end plate.
Operating Parameter Comparison: Check the high-pressure pump outlet pressure vs. permeate flow. If pressure increases while flow decreases, it indicates fouling or damage (potentially from friction due to clearance movement).
Orientation Verification: Check the flow direction arrow on the membrane element to ensure it aligns with the housing’s feed → brine direction. Reverse installation prevents the brine seal from functioning.
System Performance Degradation Type Faults: Reduced Permeate Flow and Accelerated Fouling
Fault Phenomena:
Gradual decline in permeate flow (e.g., from 10 m³/h to 5 m³/h, not recoverable by flushing).
Increased system pressure drop (e.g., differential pressure across the cartridge filter rises from 0.1 MPa to 0.3 MPa, indicating exacerbated membrane surface fouling).
Biological fouling of the membrane element (slimy biofilm visible on the membrane surface upon disassembly, or an unpleasant odor).
Increased permeate turbidity (exceeding 0.5 NTU, indicating particle attachment on the membrane surface).
Main Causes:
Membrane element clearance not eliminated (the element slides back and forth during operation, causing frictional scratches on the membrane surface and creating sites for foulant attachment).
reverse osmosis membrane housing interior not cleaned (residual welding debris, rust, and other impurities scratch the membrane surface).
Aged seals (not replaced in time, leading to brine leakage that carries contaminants into the permeate side).
Missing thrust ring (during backwash, the element moves, exacerbating concentration polarization on the membrane surface and accelerating fouling).
On-Site Rapid Diagnosis:
Permeate Flow Monitoring: Record the flow rate per unit time (e.g., cubic meters per hour). If flow drops more than 10% for three consecutive days, it suggests surface fouling or scratching (requires confirmation via element visual inspection).
Pressure Drop Analysis: Measure the differential pressure across the cartridge filter. If it exceeds 0.2 MPa, it indicates pretreatment failure or impurities inside the housing, requiring housing disassembly.
Membrane Surface Observation: Disassemble the housing, remove the element, and shine a flashlight on the membrane surface. Scratches, biofilm, or particle attachment indicate clearance movement or inadequate internal cleaning.
Fouling Rate Assessment: Record the chemical cleaning frequency. Cleaning more than once a month indicates accelerated fouling, possibly related to membrane surface damage from incorrect installation.

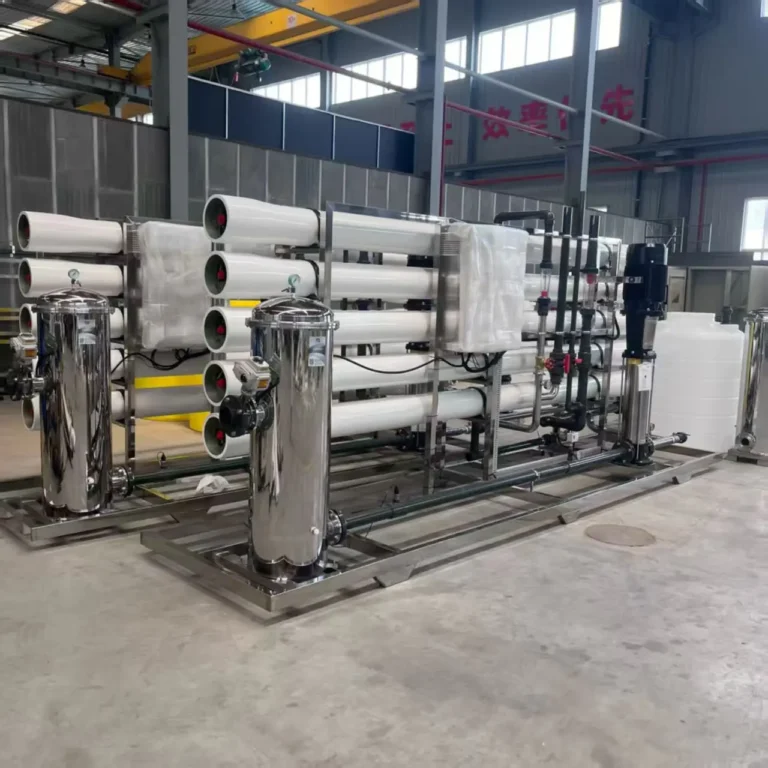

On-Site Rapid Diagnostic Procedure
When facing a fault potentially caused by incorrect reverse osmosis membrane housing installation, follow the principle “outside first, then inside; simple first, then complex.” Prioritize easily observable and accessible parts before proceeding to deep disassembly.
Step 1: Visual Inspection (5-10 minutes)
Inspect: Housing connections, end caps, seals, membrane element exterior.
Focus On: Leakage traces, damaged seals, element cracks.
Conclusion: Obvious leaks or element damage directly point to the cause (e.g., incorrect seal installation, reverse element installation).
Step 2: Operating Parameter Check (10-15 minutes)
Measure: Permeate conductivity, permeate flow, operating pressure, pressure drop.
Focus On:
Sudden conductivity spike (membrane salt rejection layer damage).
Flow decline (membrane fouling or blockage).
Increased operating pressure (fouling or movement from clearance).
Conclusion: Parameter anomalies narrow down the fault scope (e.g., high conductivity points to element damage; high pressure drop points to fouling).
Step 3: Pressure Test (15-20 minutes)
Method: Use a low-pressure manual pump to fill the housing, gradually pressurize to 1.5 times the operating pressure (e.g., to 1.5 MPa if operating at 1.0 MPa), and observe the pressure drop rate.
Focus On: A pressure drop exceeding 0.1 MPa within 10 minutes indicates a leak (requires further checking of seals or fittings).
Conclusion: The pressure test quickly determines if the sealing system has failed – a critical on-site diagnostic tool.
Step 4: Disassembly Inspection (20-30 minutes)
Sequence: Remove end caps first, then take out the membrane element.
Inspect: Membrane element orientation, surface scratches, central tube integrity, housing interior cleanliness, seal groove integrity.
Focus On:
Does the element orientation match the housing flow direction? (Reverse damages the brine seal).
Are there scratches or biofilm on the membrane surface? (Caused by friction/fouling from clearance movement).
Conclusion: Disassembly inspection definitively confirms the type of installation error (e.g., reverse element, clearance not eliminated) – the ultimate problem-solving step.
Correspondence Between Common Installation Errors and Faults
For quick on-site correlation, common installation errors and their resulting faults are summarized in the table below:
| Type of Installation Error | Fault Phenomena | Key On-Site Diagnostic Point |
|---|---|---|
| Seal not seated properly | Leakage at fitting/end cap, pressure drop | Visual check for damaged seals; pressure test |
| Reverse installation of membrane element | Sudden spike in permeate conductivity; ruptured end plate | Check element direction arrows; measure permeate water quality |
| Clearance not eliminated | Decreased permeate flow; scratches on membrane surface; increased pressure drop | Disassembly inspection for element movement marks; monitor flow rate |
| Incorrect thrust ring position | Element collision during backwash; ruptured end plate | Check thrust ring installation location (brine side) |
| reverse osmosis membrane housing interior not cleaned | Scratches on membrane surface; biological fouling | Disassembly inspection for debris inside housing |
Important Notes:
Safety First: Before disassembling the housing, shut down the high-pressure pump and depressurize the housing completely to prevent injury from working under pressure.
Preserve Evidence: Photograph faulty parts (e.g., damaged seals, membrane elements) for subsequent analysis and responsibility determination.
Avoid Excessive Disassembly: If visual inspection or parameter checks already pinpoint the fault (e.g., a damaged seal), replace the seal directly without disassembling the element unnecessarily.
Consult Manuals: During diagnosis, refer to the installation manuals for the specific reverse osmosis membrane housing and elements (e.g., Toray, DuPont, SUEZ technical documents) to confirm requirements (e.g., orientation, lubricant type).
Simple Summary
Faults caused by incorrect reverse osmosis membrane housing installation are preventable and correctable. The key lies in rapid on-site diagnosis. By following the four steps – Visual Inspection, Parameter Check, Pressure Test, and Disassembly Inspection – you can quickly identify the root cause of seal failures, membrane element damage, or system performance degradation, and take corrective actions such as replacing seals, adjusting element orientation, or eliminating installation clearances.
